Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5446171Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Trim (4) - Remove - Front Side Door Trim Removal and Installation

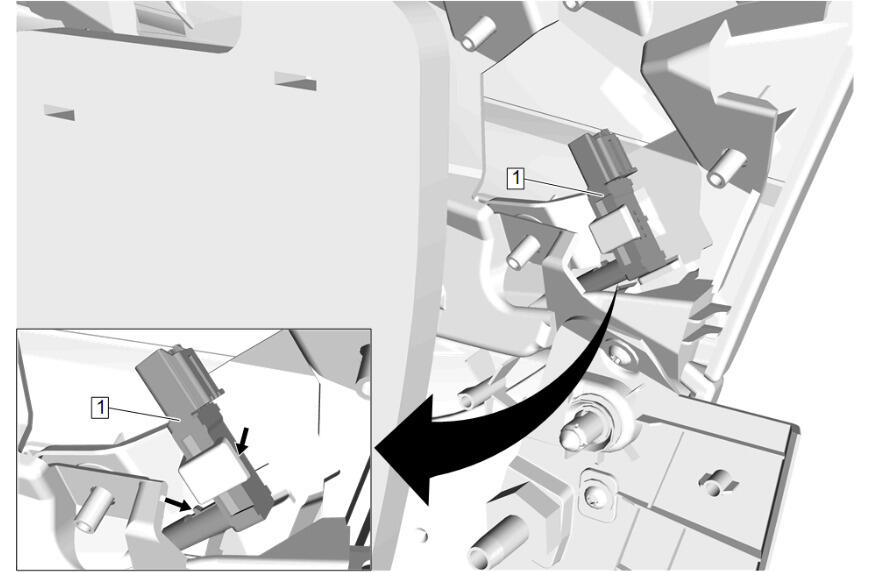

  2. GM5442495Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

  3. Release the retaining tab holding the front side door light conductor lamp bulb (1) to the front side door trim.
  4. Release the retaining tab at the end of the front side door light conductor lamp bulb (1).

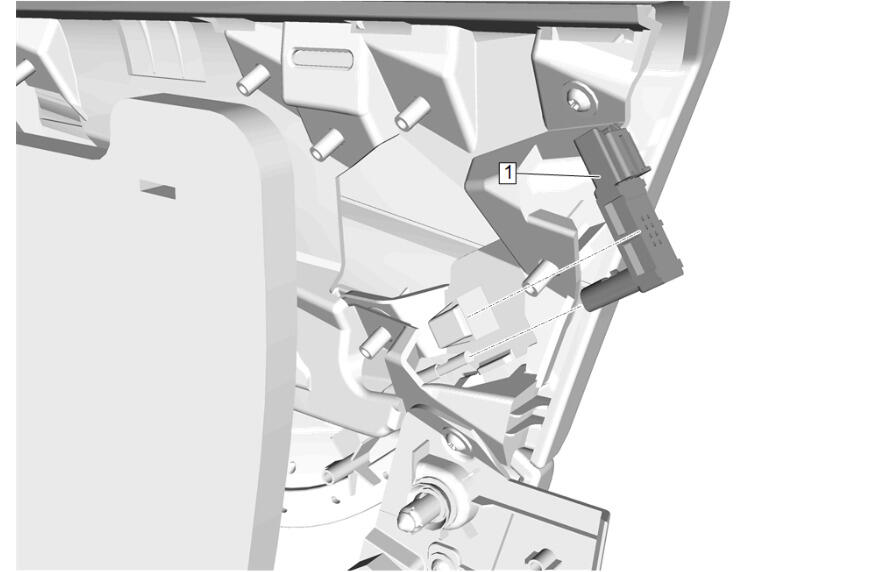

  5. GM5442497Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Light Conductor Lamp Bulb (1) - Remove
