Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Using a flat-bladed plastic trim tool, release the retaining clips.
- Loosen the front floor console rear trim panel (1) enough to clear the tabs of the front floor console extension panel (2).
- Reposition the seat as necessary to access the retaining clips.
- Using a flat-bladed plastic trim tool, release the retaining clips.
- Front Floor Console Extension Panel - Left Side (2) - Remove
Disconnect all electrical connectors.

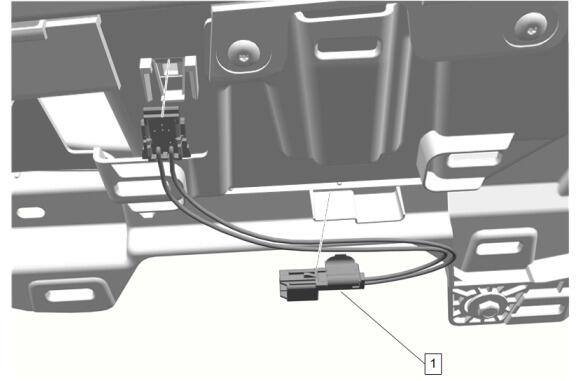

- Front Floor Console Compartment Lamp (1) - Remove
