Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

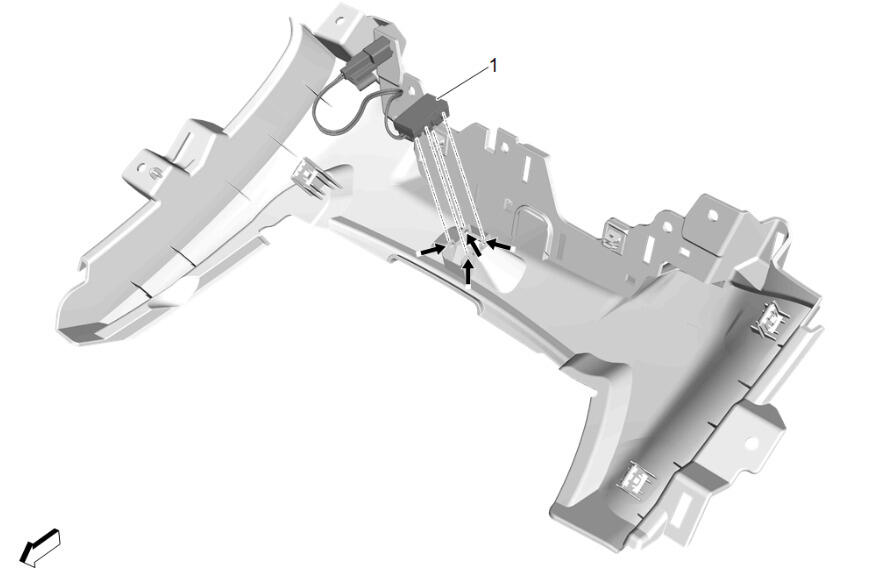

  1. GM5448565Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bin Lamp (1) - Install

  2. Ensure the retaining tabs have fully secured.
  3. Instrument Panel Lower Center Trim Panel - Install - Instrument Panel Lower Center Trim Panel Replacement (with M5N) , or Instrument Panel Lower Center Trim Panel Replacement (with MQA)
  4. GM5482683Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  5. Instrument Panel Lower Center Trim Panel (2) - Install
    6. CAUTION:

    Refer to Fastener Caution .

  6. Instrument Panel Center Trim Panel Bolt (1) - Install and tighten [6x] - Fastener Specifications
  7. GM5482681Courtesy of GENERAL MOTORS COMPANY

    Slide the front floor console (1) back into the instrument panel.

  8. GM5482680Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt (1) - Install and tighten [6x] - Fastener Specifications

  9. Front Floor Console Bracket Bolt (2) - Install and tighten [2x] - Fastener Specifications
  10. GM5479956Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (1) - Install

  11. Return the seat to its original position.
  12. GM5479957Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (1) - Install

  13. Return the seat to its original position.
  14. GM5433956Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad (1) - Install

  15. GM5423237Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  16. Instrument Panel Compartment (1) - Install
  17. GM5423236Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Bolt (1) - Install and tighten [5x] - Fastener Specifications

  18. GM5443248Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  19. Instrument Panel Lower Airbag - Passenger Side (2) - Install
  20. Instrument Panel Lower Airbag Nut (1) - Install and tighten [2x] - Fastener Specifications
  21. GM5312734Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  22. Instrument Panel Lower Trim Panel Insulator (1) - Install
  23. Install the front edge of the front floor console extension panel into the instrument panel lower trim panel insulator (1).
  24. GM5312733Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Insulator Bolt (1) - Install and tighten [4x] - Fastener Specifications

  25. Connect and position the wiring harness.
  26. GM5312731Courtesy of GENERAL MOTORS COMPANY

    Unlock and lower the body control module bracket (2).

  27. Connect the electrical connectors.
  28. Close and lock the body control module bracket (2) into the instrument panel lower trim panel insulator.
  29. Body Control Module Bracket Bolt (1) - Install and tighten - Fastener Specifications
  30. GM5421737Courtesy of GENERAL MOTORS COMPANY

    {If equipped} Connect the electrical connector.

  31. Instrument Panel Outer Trim Cover - Right Side (1) - Install
  32. GM5446428Courtesy of GENERAL MOTORS COMPANY

    Connect and position the wiring harness.

  33. Instrument Panel Knee Bolster (1) - Install
  34. GM5446424Courtesy of GENERAL MOTORS COMPANY

    Data Link Connector Bolt (1) - Install and tighten [2x] - Fastener Specifications

  35. Instrument Panel Knee Bolster Bolt (2) - Install and tighten [3x] - Fastener Specifications
  36. GM5433957Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Pad (1) - Install

  37. Return the steering column to its original position.
  38. GM5310879Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  39. Instrument Panel Lower Trim Panel Insulator (1) - Install
  40. GM5310878Courtesy of GENERAL MOTORS COMPANY

    Install the tabs into the instrument panel lower trim panel insulator (1).

  41. GM5310877Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator Retainer (1) - Install

  42. Instrument Panel Insulator Bolt (2) - Install and tighten [2x] - Fastener Specifications
  43. Instrument Panel Insulator Nut (3) - Install and tighten [2x] - Fastener Specifications
  44. GM5300282Courtesy of GENERAL MOTORS COMPANY

    Attach the hood primary latch release cable end retainer to the hood primary latch release cable handle (1).

  45. GM5421735Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Left Side (1) - Install

  46. GM5443235Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  47. Instrument Panel Lower Airbag - Driver Side (2) - Install
  48. Instrument Panel Lower Airbag Nut (1) - Install and tighten [2x] - Fastener Specifications
  49. GM5441313Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  50. Hazard Warning Switch (2) - Install
  51. Firmly secure the hazard warning switch (2) straight forward and ensure it is fully seated.
  52. Hazard Warning Switch Bolt (1) - Install and tighten [2x] - Fastener Specifications
  53. GM5482913Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  54. Heater and Air Conditioning User Interface Control (2) - Install
  55. Heater and Air Conditioning Control Bolt (1) - Install and tighten [2x] - Fastener Specifications
  56. GM5422150Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate (2) - Install

  57. Instrument Panel Center Air Outlet Bolt (1) - Install and tighten [3x] - Fastener Specifications
  58. Connect the electrical connectors.
  59. GM5422046Courtesy of GENERAL MOTORS COMPANY

    Radio Control (2) - Install

  60. Radio Control Bolt (1) - Install and tighten [2x] - Fastener Specifications
  61. GM5422026Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Radio Front Trim Plate (1) - Install

  62. GM5422024Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Radio Front Trim Plate (1) - Install

  63. Enable the SIR System. SIR Disabling and Enabling
