Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

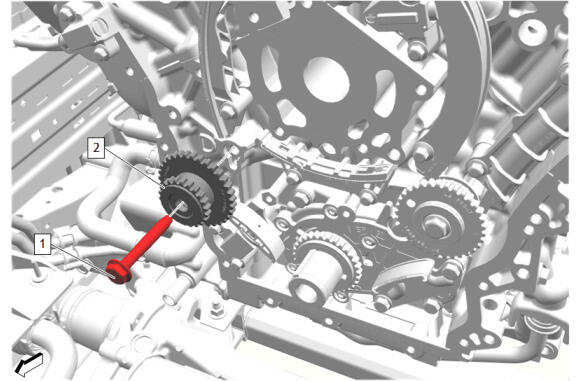

Timing Chain Idler Sprocket (2) - Install

CAUTION:

Refer to Fastener Caution .

Timing Chain Idler Sprocket Shaft Bolt (1) - Install and tighten - Fastener Specifications
Verify the timing components are correctly aligned for stage 1. Timing Chain Alignment Diagram .
If not in stage 1 position use the EN-48589 Crankshaft Rotation Socket (1) rotate the crankshaft and crankshaft sprocket to stage 1 alignment position.
Camshaft Intermediate Drive Chain (1) - Install
Remove timing chain tensioner holding pin.
Timing Chain Housing Gasket (3) - Install NEW
Camshaft Intermediate Drive Chain Tensioner (2) - Install
Timing Chain Tensioner Bolt (1) - Install and tighten [2x] - Fastener Specifications
Remove the EN-46112 Tensioner Retraction Pin (2) to release timing chain tensioner plunger (1).
Remove the EN-48383 - 1 Camshaft Retaining Tool (1).
Verify the timing components are correctly aligned for stage 2. Timing Chain Alignment Diagram .
If not in stage 2 position use the EN-48589 Crankshaft Rotation Socket (1) rotate the crankshaft and crankshaft sprocket to stage 2 alignment position.
Install EN-48383 - 2 Camshaft Retaining Tool (1).
Camshaft Intermediate Drive Chain (1) - Install
Timing Chain Tensioner Gasket (3) - Install NEW
Timing Chain Tensioner (2) - Install
Timing Chain Tensioner Bolt (1) - Install and tighten [2x] - Fastener Specifications
Remove the EN-46112 Tensioner Retraction Pin (2) to release timing chain tensioner plunger (1).
Remove the EN-48383 - 2 Camshaft Retaining Tool (1).
Remove the EN-48383 - 3 Camshaft Retaining Tool (1).
Engine Front Cover (1) - Install - Engine Front Cover Removal and Installation
