Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

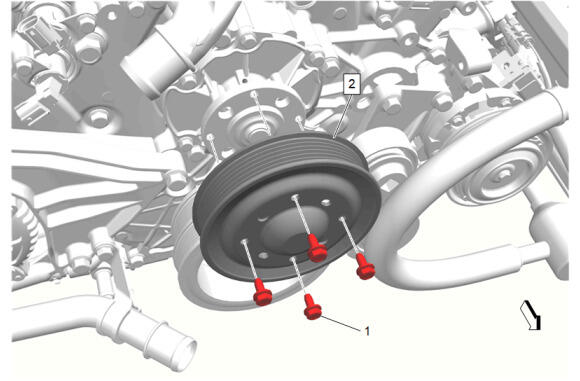

  1. GM6049112

    Water Pump Pulley (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Water Pump Pulley Bolt (1) - Install and tighten [4x] - Fastener Specifications

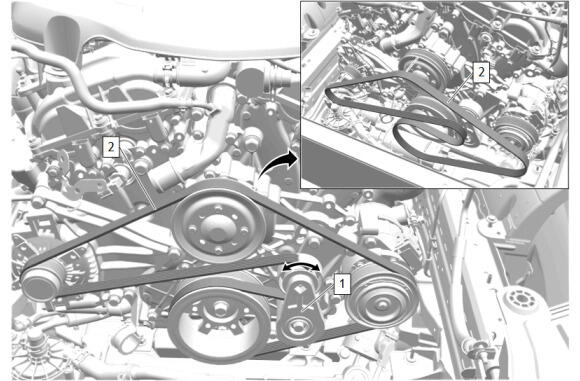

  3. GM5854879

    Use a suitable tool to rotate the drive belt tensioner (1) counterclockwise, then hold tension.

  4. Install the accessory drive primary belt (2) onto the last idler pulley. Check to ensure that the drive belt is centered on each pulley, and fully seated into ribbed pulleys.
  5. Slowly release tension from the drive belt tensioner (1).
  6. Inspect the accessory drive primary belt (2) again to ensure centered on each pulley.

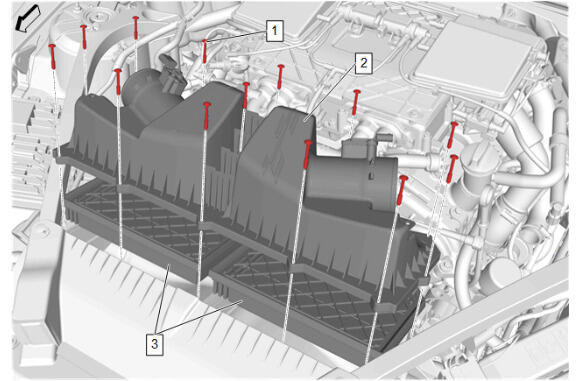

  7. GM5841341

    Air Cleaner Upper Housing (2) - Install

  8. Air Cleaner Housing Cover Bolt (1) - Install and tighten [13x] - Fastener Specifications
  9. Connect the 2 mass airflow sensor electrical connectors.
  10. Instal all retainers to the air cleaner upper housing.

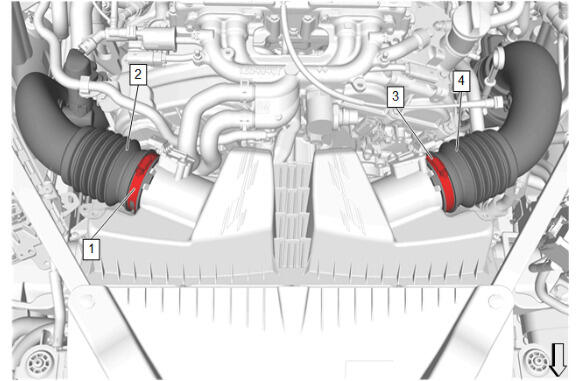

  11. GM5841339

    Auxiliary Air Cleaner Outlet Duct (4) - Install

  12. Air Cleaner Outlet Duct Clamp (3) - Tighten - Fastener Specifications
  13. Air Cleaner Outlet Duct (2) - Install
  14. Air Cleaner Outlet Duct Clamp (1) - Tighten - Fastener Specifications
