Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

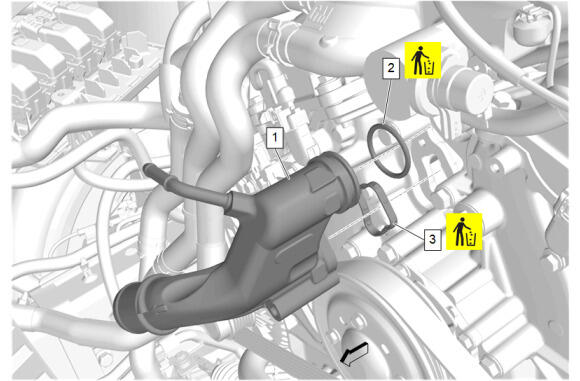

  1. GM5875454

    Water Outlet Seal (3) - Install NEW

  2. Water Outlet Seal-O-Ring (2) - Install NEW
  3. Water Outlet (1) - Install

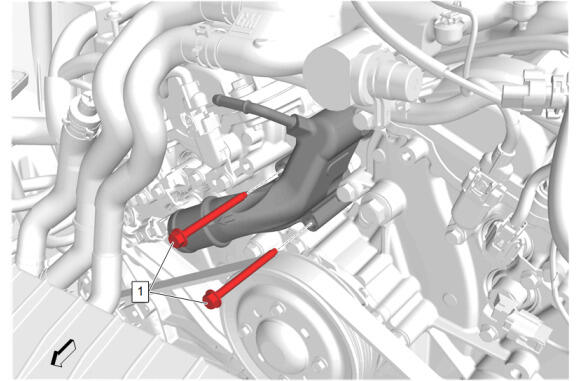

  4. GM5875453
    CAUTION:

    Refer to Fastener Caution .

    Water Outlet Bolt (1) - Install and tighten [2x] - Fastener Specifications

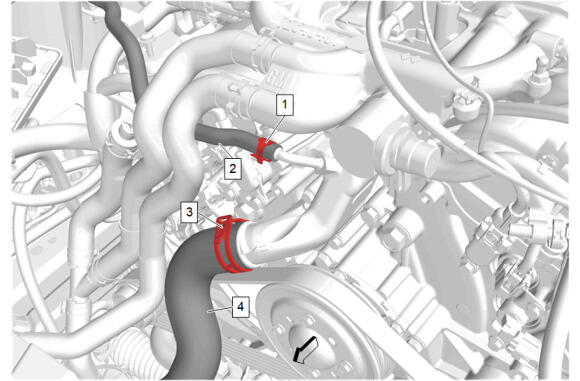

  5. GM5875452

    Radiator Inlet Hose (4) @ Water Outlet - Install

  6. Radiator Inlet Hose Clamp (3) @ Water Outlet - Engage - Hose Clamp Replacement Guidelines - Spring Type
  7. Radiator Surge Tank Inlet Hose (2) @ Water Outlet - Install
  8. Radiator Surge Tank Inlet Hose Clamp (1) @ Water Outlet - Engage - Hose Clamp Replacement Guidelines - Spring Type
  9. GM5862960

    Air Cleaner Assembly (2) - Install

  10. Air Cleaner Bolt (1) - Install and tighten - Fastener Specifications
  11. Install all retainers and wiring harnesses to the air cleaner assembly as necessary.
  12. Connect the 2 mass airflow sensor electrical connectors.
  13. GM5864667

    Auxiliary Air Cleaner Outlet Duct (4) - Install

  14. Air Cleaner Outlet Duct Clamp (3) - Tighten - Fastener Specifications
  15. Air Cleaner Outlet Duct (2) - Install
  16. Air Cleaner Outlet Duct Clamp (1) - Tighten - Fastener Specifications
  17. GM5839407

    Front End Sheet Metal Cross Brace- Left Side and Right Side (3) - Install [2x]

  18. Front Suspension Strut Upper Mounting Nut- Left Side and Right Side (2) - Install and tighten [4x] - Fastener Specifications
  19. Front End Sheet Metal Cross Brace Bolt- Left Side and Right Side (1) - Install and tighten [6x] - Fastener Specifications
  20. Install all wiring harness retainers to the front end sheet metal cross braces.
  21. GM5864524

    Radiator Air Upper Baffle- Upper (3) - Install

  22. Radiator Air Upper Baffle Bolt (2) - Install and tighten [2x] - Fastener Specifications
  23. Radiator Air Upper Baffle Retainer (1) - Install [5x]
  24. GM5839233

    Transmission Control Module (1) @ Engine Control Module Bracket (2) - Install

  25. Engine Control Module Bracket (2) - Install
  26. GM5839232

    Engine Control Module Bracket Bolt (1) - Install and tighten [3x] - Fastener Specifications

  27. GM5839234

    Engine Control Module (1) - Install

  28. Connect the electrical connectors.
  29. GM5861123

    Radiator Surge Tank Outlet Pipe (3) - Install

  30. Radiator Surge Tank Inlet Hose Clamp (4) @ Engine Radiator - Engage - Hose Clamp Replacement Guidelines - Spring Type
  31. Radiator Surge Tank Inlet Hose Clip (2) @ Engine Control Module Bracket - Install
  32. Radiator Surge Tank Inlet Hose Clamp (1) @ Radiator Surge Tank Inlet Hose - Engage - Hose Clamp Replacement Guidelines - Spring Type
  33. Fill the cooling system to the proper level. Refer to Cooling System Draining and Filling (LF4 Static Fill) , or Cooling System Draining and Filling (LF4 GE 47716)
  34. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
  35. Start the engine and check for coolant leaks.
