Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Cooling System Draining and Filling (L3B Static Fill) , or Cooling System Draining and Filling (L3B GE 47716)
  2. Raise and support the vehicle. Lifting and Jacking the Vehicle
  3. GM5397986

    Front Bumper Fascia Center Air Deflector Bolt (1) - Remove [5x]

  4. Front Bumper Fascia Center Air Deflector Retainer (2) - Remove [2x]
  5. GM5397993

    Front Wheelhouse Liner Bolt (1) - Remove

  6. Engine Front Splash Shield Retainer (2) - Remove
  7. Engine Front Splash Shield Bolt (3) - Remove
  8. GM5398000

    Front Wheelhouse Liner Bolt (3) - Remove

  9. Engine Front Splash Shield Retainer (2) - Remove
  10. Engine Front Splash Shield Bolt (1) - Remove
  11. GM5398001

    Front Compartment Air Deflector Bolt (1) - Remove [6x]

  12. GM5398004

    Front Compartment Air Deflector - (1) Remove

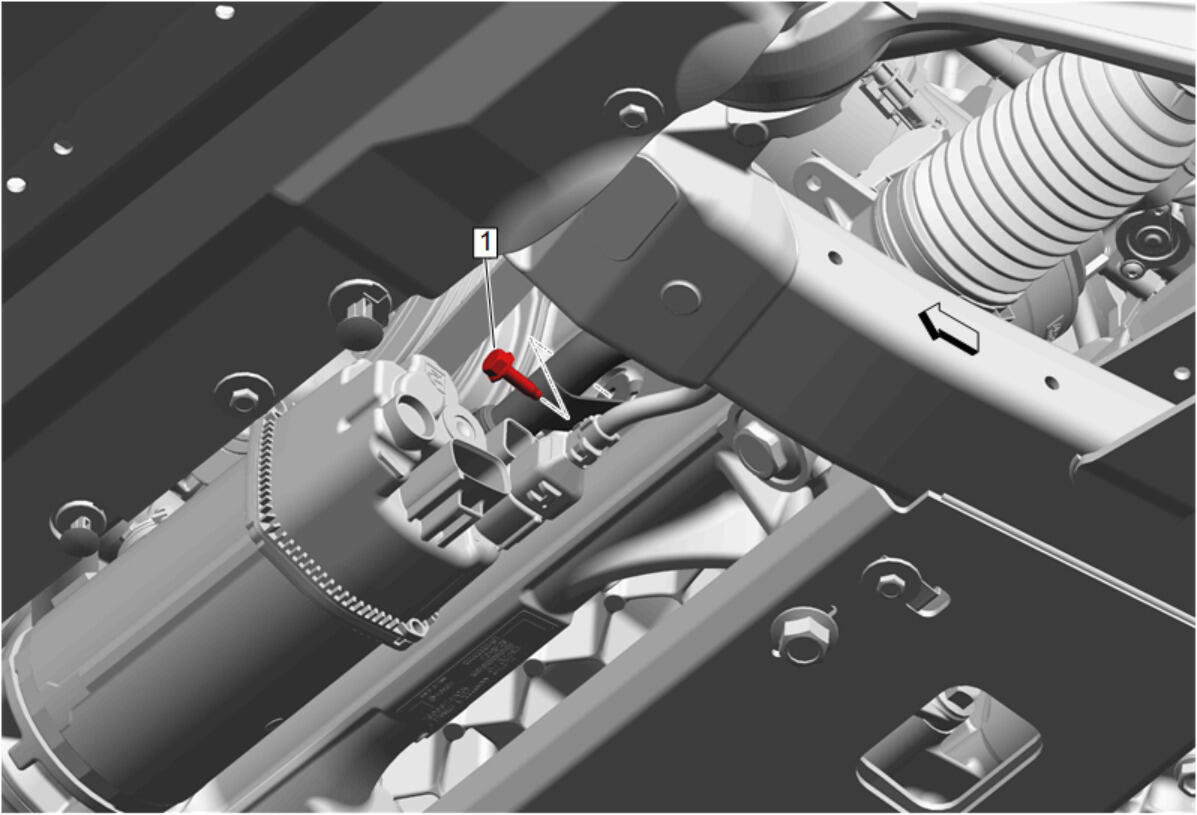

  13. GM5399292

    Thermostat Bypass Pipe Bolt (1) - Remove

  14. Lower the vehicle.

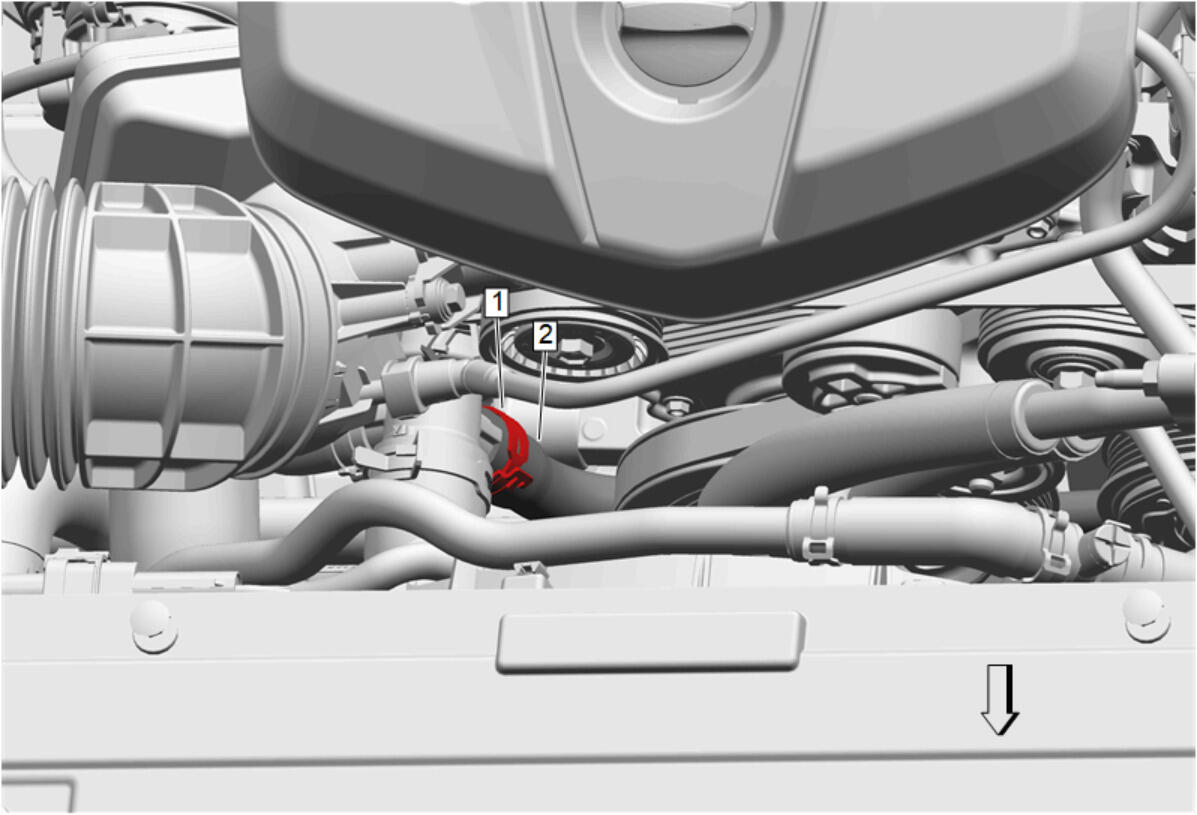

  15. GM5399284

    Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  16. Thermostat Bypass Pipe (2) @ Water Pump - Remove

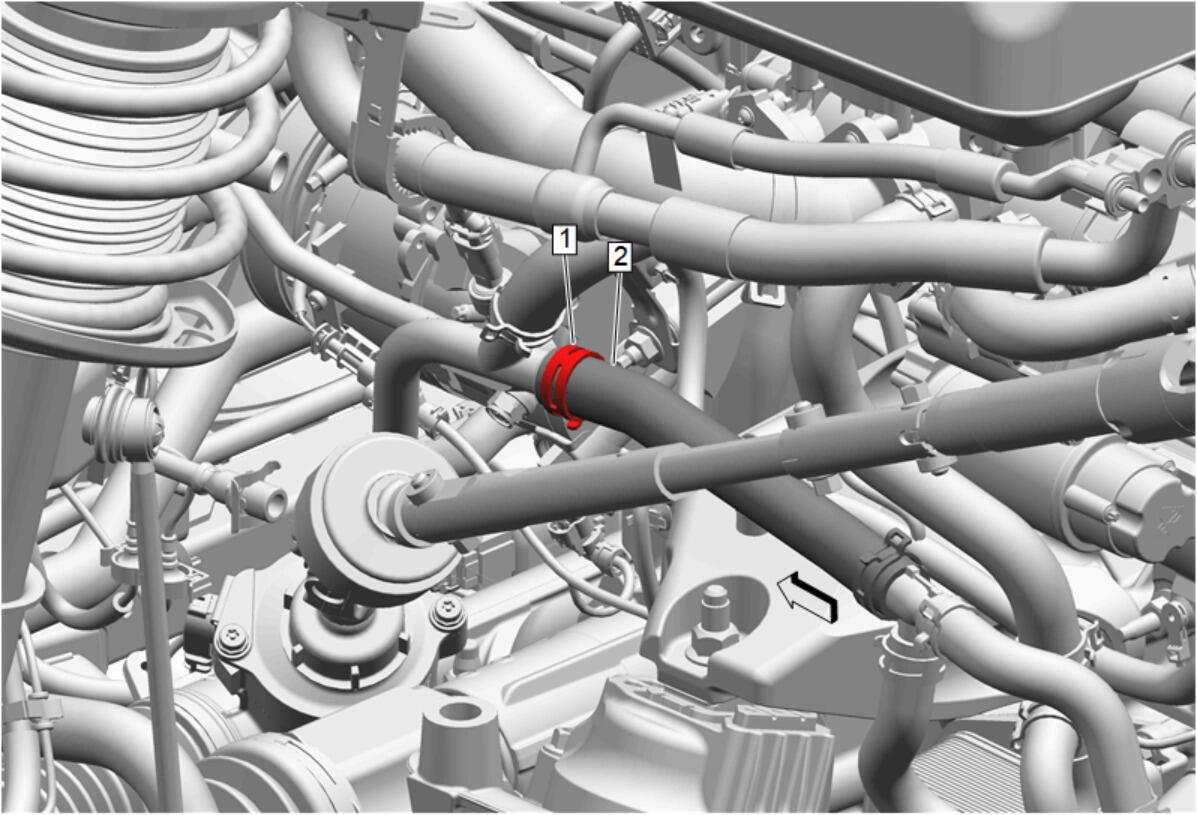

  17. GM5399315

    Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  18. Engine Oil Cooler Coolant Outlet Hose (2) @ Thermostat Bypass Pipe - Remove

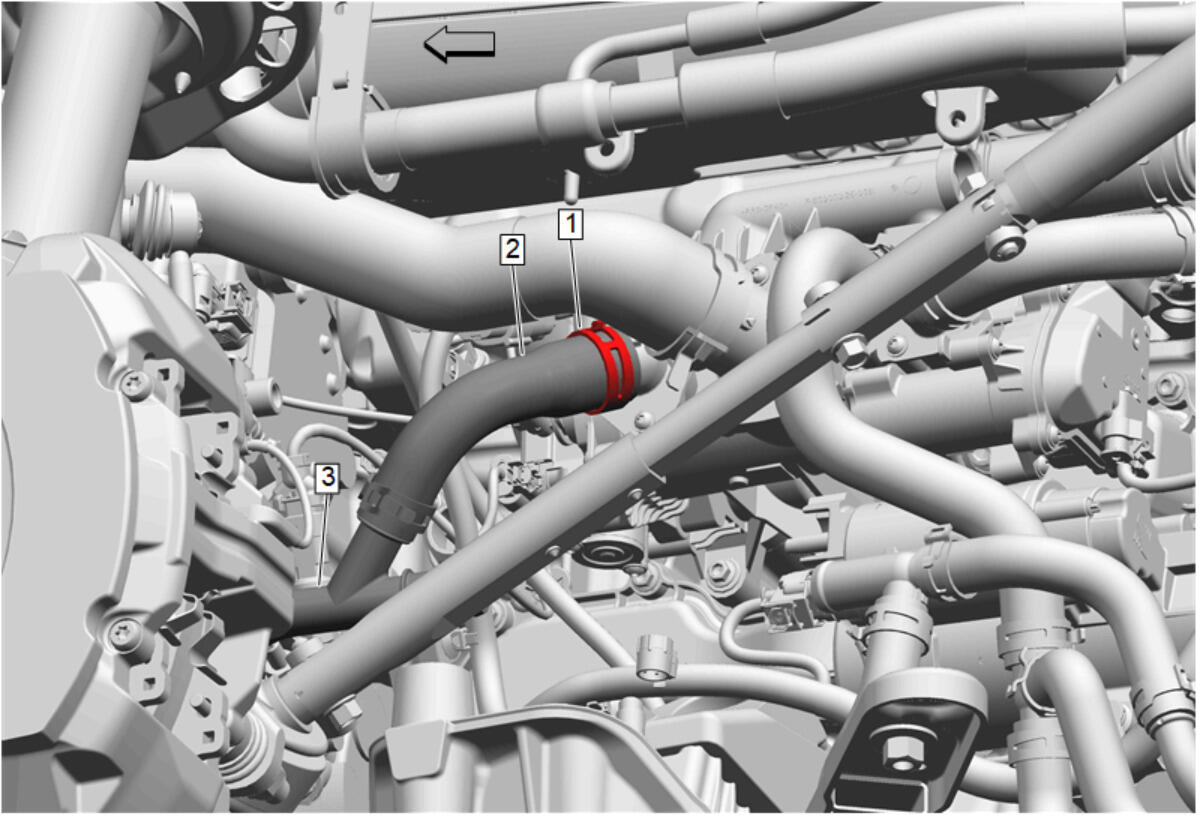

  19. GM5399325

    Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  20. Thermostat Bypass Hose (2) @ Engine Coolant Flow Control Valve - Remove
  21. Thermostat Bypass Pipe (3) - Remove
