Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Charge Air Cooler Coolant Pipe Seal (3) - Install NEW [4x]
- Supercharger Water Manifold Gasket (2) - Install NEW [2x]
- Supercharger Water Manifold (1) - Install
- CAUTION:
Refer to Fastener Caution .
Charge Air Cooler Coolant Manifold Bolt (1) - Install and tighten [4x] - Fastener Specifications
Charge Air Cooler Coolant Hose (4) - Install
- Charge Air Cooler Coolant Hose Clamp (3) - Engage - Hose Clamp Replacement Guidelines - Spring Type
- Charge Air Cooler Coolant Hose (2) - Install
- Charge Air Cooler Coolant Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Turbocharger Wastegate Actuator Vacuum Tank Solenoid Valve Tube (4) - Install
- Turbocharger Wastegate Actuator Vacuum Tank Solenoid Valve Tube (3) @ Auxiliary Air Cleaner Outlet Duct - Connect - Plastic Collar Quick Connect Fitting Service
- Retainer (2) - Engage
- Engage the 2 turbocharger wastegate actuator vacuum tank solenoid valve tube clamps (1).

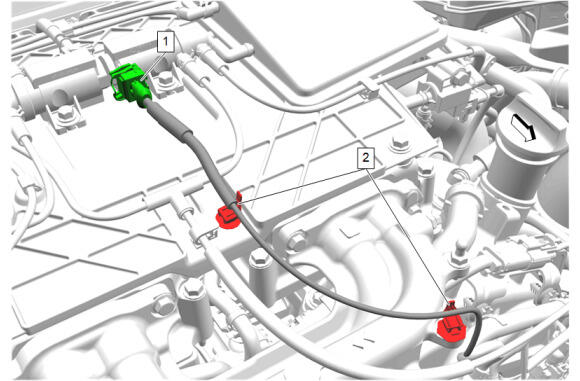

Engine Wiring Harness Retainer (2) - Connect [2x]
- Connect the turbocharger wastegate regulator solenoid valve electrical connector (1).
Oil Filler Cap - Remove
- Intake Manifold Cover (2) - Install
- Intake Manifold Cover Bolt (1) - Install and tighten - Fastener Specifications
- Oil Filler Cap - Install
- Fill the charge air cooling system. Cooling System Draining and Filling (LF4 Static Fill) , Cooling System Draining and Filling (LF4 GE 47716)
