Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refrigerant Recovery and Recharging
  2. Drain the cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LSY with V03 Static Fill) , or Cooling System Draining and Filling (LSY with V03 GE 47716)
  3. GM5423335

    Radiator Air Front Lower Baffle Retainer (1) - Remove [3x]

  4. GM5423336

    Radiator Air Front Lower Baffle (1) - Remove

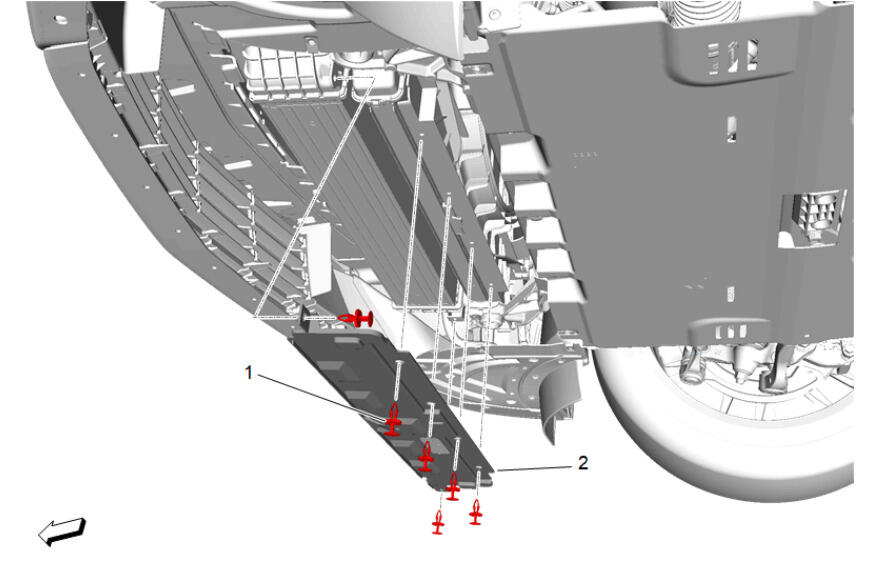

  5. GM5429279

    Radiator Air Lower Seal Retainer (1) - Remove [6x]

  6. Radiator Air Lower Baffle (2) - Remove
  7. GM5422324

    Radiator Air Seal Retainer- Left Side (1) - Remove

  8. GM5422654

    Radiator Air Seal Retainer- Right Side (1) - Remove

  9. Lower the vehicle.
  10. GM5420297

    Radiator Air Upper Baffle Retainer (1) - Remove [7x]

  11. Radiator Air Upper Baffle (2) - Remove
  12. GM5427430

    Wiring Harness Retainer (1) - Remove

  13. Radiator Upper Bracket Bolt (3) - Remove [4x]
  14. Radiator Upper Bracket (2) - Remove [2x]
  15. GM5427476

    Air Conditioning Evaporator Tube Clip Bolt (1) - Remove

  16. Air Conditioning Evaporator Tube Bracket (2) - Reposition
  17. Engine Coolant Fan Electrical Connector (3) @ Forward Lamp Wiring Harness (4) - Disconnect
  18. GM5427515

    Wiring Harness Retainer (1) @ Air Cleaner Assembly - Remove [4x]

  19. Positive Crankcase Ventilation Tube (2) - Disconnect - Plastic Collar Quick Connect Fitting Service
  20. Evaporative Emission Canister Purge Tube (3) - Disconnect - Plastic Collar Quick Connect Fitting Service
  21. Electrical Connector (4) - Disconnect [2x]
  22. GM5427523

    Air Cleaner Bolt (1) - Remove

  23. Air Cleaner Outlet Duct Clamp (2) - Loosen
  24. GM5427525

    Remove the air cleaner (1) and air cleaner outlet duct (2) as an assembly.

  25. GM5314509

    Retainer Spring (1) - Release

  26. Charge Air Cooler Outlet Air Tube (2) @ Throttle Body (3) - Remove
  27. GM5314511

    Retainer Spring (1) - Release

  28. Charge Air Cooler Inlet Air Tube (2) @ Turbocharger (3) - Remove
  29. Raise and support the vehicle. Lifting and Jacking the Vehicle

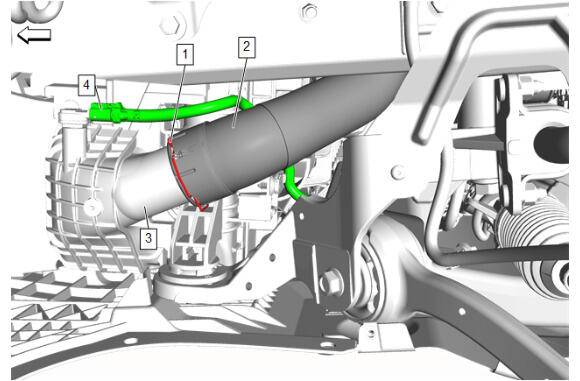

  30. GM5539039

    Retainer Spring (1) - Release

  31. Charge Air Cooler Outlet Air Tube (2) @ Charge Air Cooler (3) - Remove
  32. Electrical Connector (4) - Disconnect
  33. Remove the right front tire and wheel assembly. Tire and Wheel Removal and Installation
  34. GM5421943

    Front Tire Front Air Deflector Bolt (1) - Remove [3x]

  35. Front Tire Front Air Deflector (2) - Remove
    1. If equipped with AWD:
      1. GM5421586
        NOTE:

        Components removed for graphic clarity.

        Engine Front Splash Shield Screw (2) - Remove [5x]

      2. Push Pin (1) - Remove
      3. Engine Front Splash Shield (3) - Remove
    2. If equipped with RWD:
      1. GM5421504
        NOTE:

        Components removed for graphic clarity.

        Push Pin (2) - Remove [2x]

      2. Engine Front Splash Shield Screw (1) - Remove [5x]
      3. Engine Front Splash Shield (3) - Remove
  36. GM5421941

    Front Bumper Fascia Air Deflector Screw (1) - Remove [3x]

  37. Front Bumper Upper Fascia Screw (2) - Remove [2x]
  38. GM5421975
    NOTE:

    Components removed for graphic clarity.

    Front Wheelhouse Liner Screw (1) - Remove [7x]

  39. Front Wheelhouse Liner Retainer (2) - Remove [4x]
  40. Front Wheelhouse Liner (3) - Remove

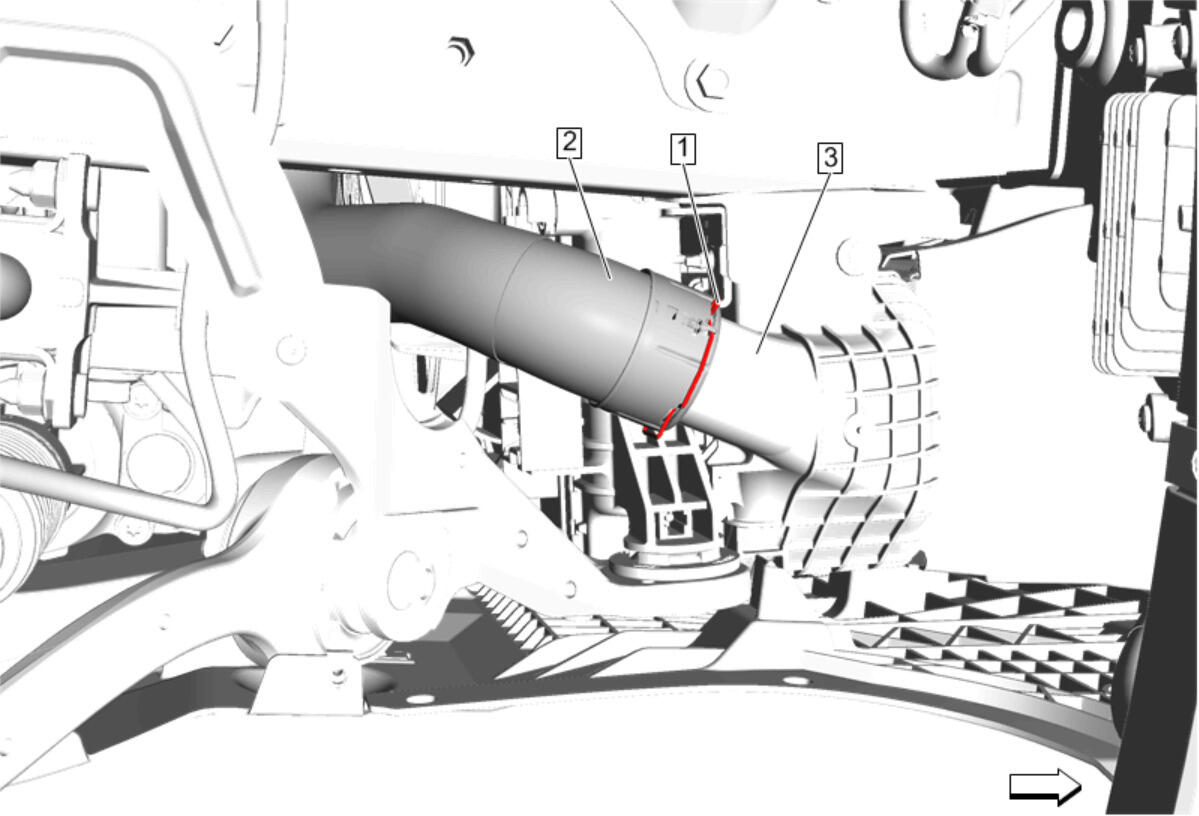

  41. GM5314513

    Retainer Spring (1) - Release

  42. Charge Air Cooler Inlet Air Tube (2) @ Charge Air Cooler (3) - Remove
  43. GM5315482

    Air Conditioning Compressor Hose Nut (1) @ Air Conditioning Condenser - Remove

  44. Air Conditioning Condenser Tube Clip (2) - Remove
  45. GM5471158

    Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose (1) @ Air Conditioning Condenser - Remove

  46. Air Conditioning Compressor and Condenser Hose Seal (2) - Remove and DISCARD
  47. GM5471160

    Air Conditioning Refrigerant Heat Exchanger (1) @ Air Conditioning Condenser - Remove

  48. Air Conditioning Condenser Hose Seal (2) - Remove and DISCARD
  49. GM5429374

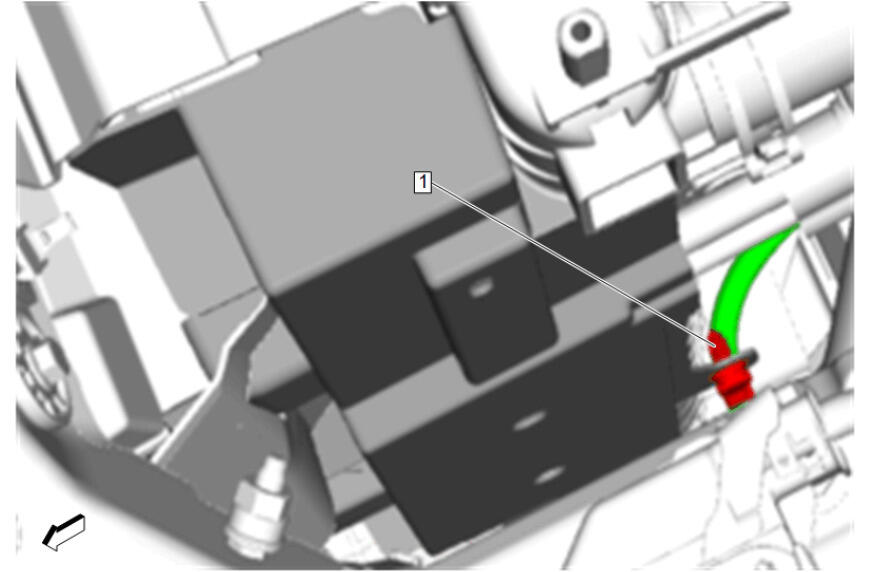

    Wiring Harness Retainer (1) @ Radiator Air Side Baffle - Left Side - Remove

  50. GM5429377

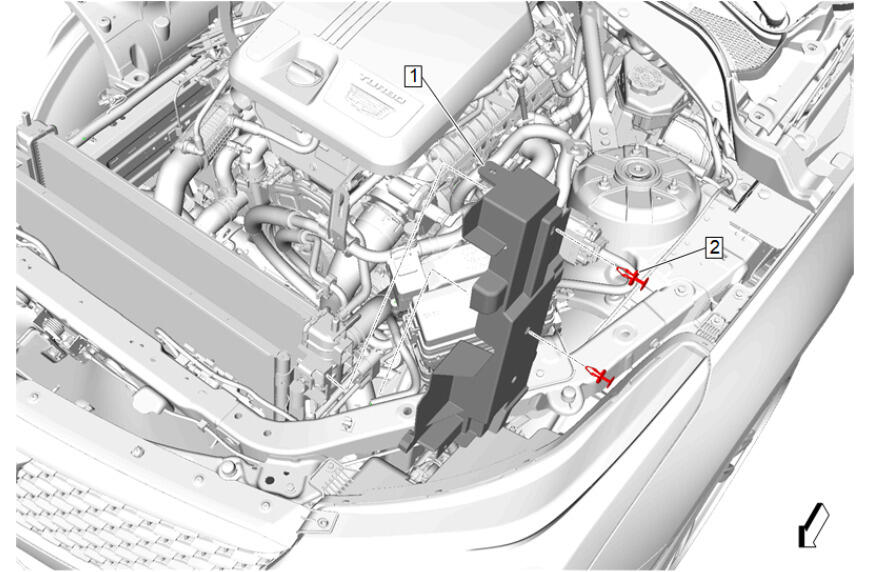

    Radiator Air Seal Retainer (2) - Remove [2x]

  51. Remove the left radiator air side baffle (1) by manipulating from between the vehicle components.
  52. GM5429379

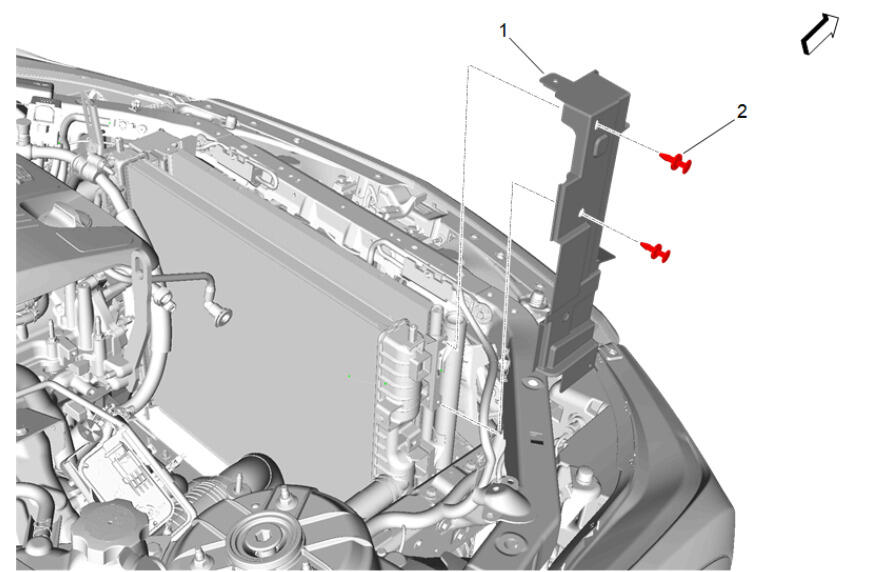

    Radiator Air Seal Retainer (2) - Remove [2x]

  53. Remove the right radiator air side baffle (1) by manipulating from between the vehicle components.

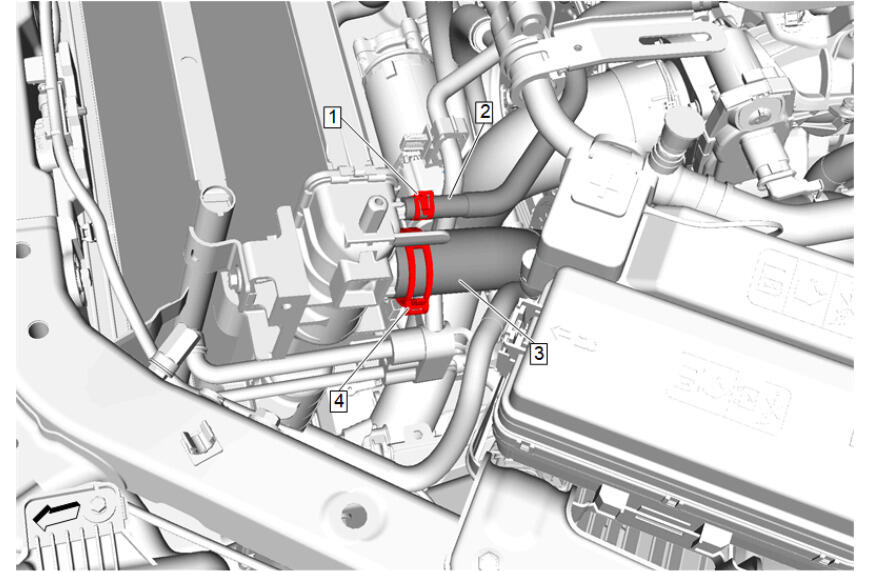

  54. GM5429388

    Radiator Surge Tank Inlet Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  55. Radiator Surge Tank Inlet Hose (2) @ Engine Radiator - Remove
  56. Radiator Inlet Hose Clamp (4) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
  57. Radiator Inlet Hose (3) @ Engine Radiator - Remove

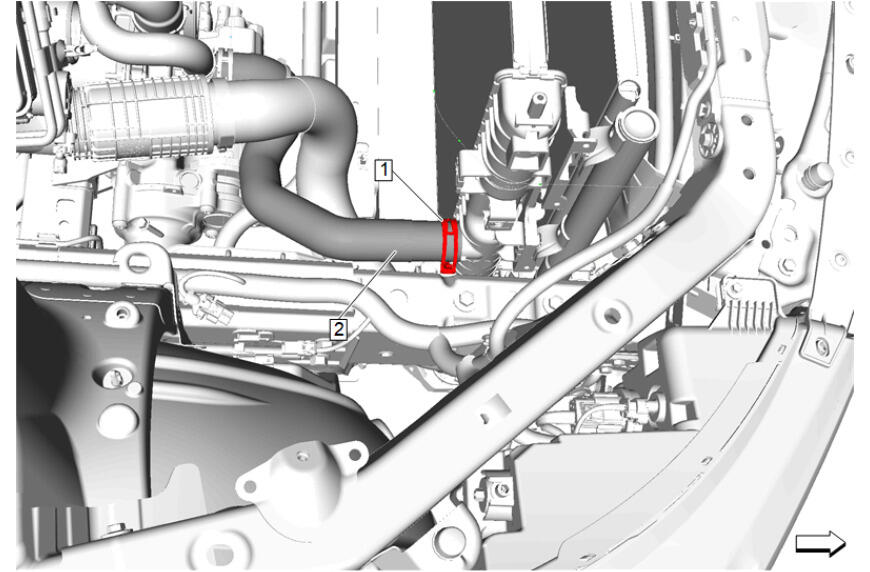

  58. GM5429392

    Radiator Outlet Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  59. Radiator Outlet Hose (2) @ Engine Radiator - Remove
  60. GM5430387

    Engine Coolant Temperature Indicator Switch Connector (1) @ Engine Coolant Temperature Sensor (2) - Disconnect

  61. Wiring Harness Retainer @ Engine Radiator - Remove

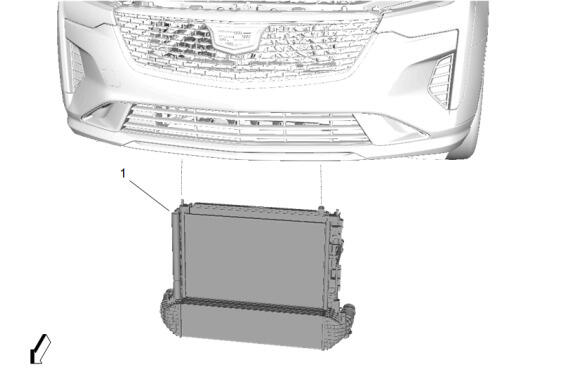

  62. GM5637198

    With assistance, remove the engine radiator, air conditioning condenser, charge air cooler and engine cooler fan (1) from beneath the vehicle as an assembly.

  63. GM5637199

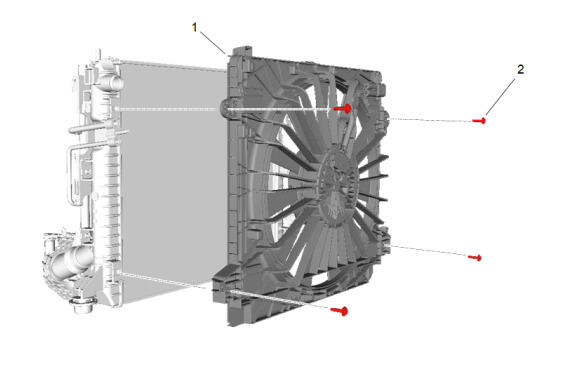

    Engine Coolant Fan Bolt (2) - Remove [4x]

  64. Engine Cooler Fan (1) @ Engine Radiator - Remove

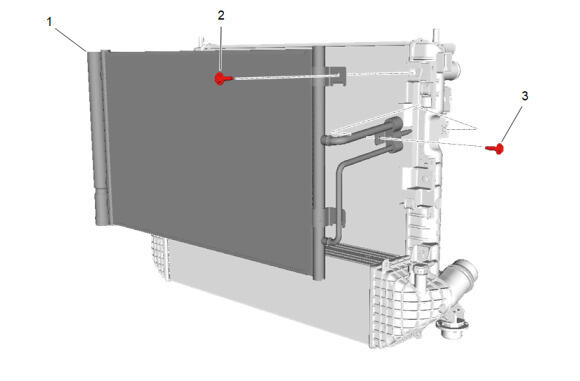

  65. GM5637200

    Air Conditioning Condenser Bolt (2) - Remove

  66. Air Conditioning Condenser Tube Bolt (3) - Remove
  67. Air Conditioning Condenser (1) - Remove
  68. GM5637201

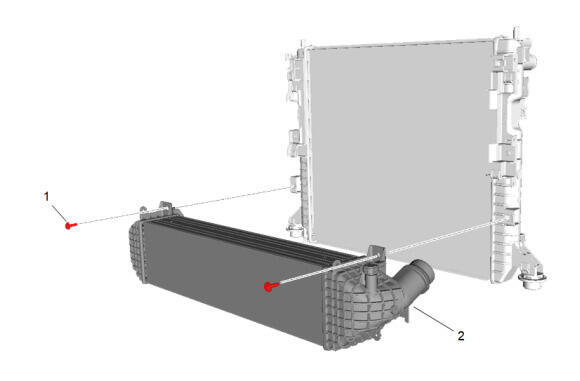

    Charge Air Cooler Bolt (1) - Remove [2x]

  69. Charge Air Cooler (2) - Remove
  70. GM5430398

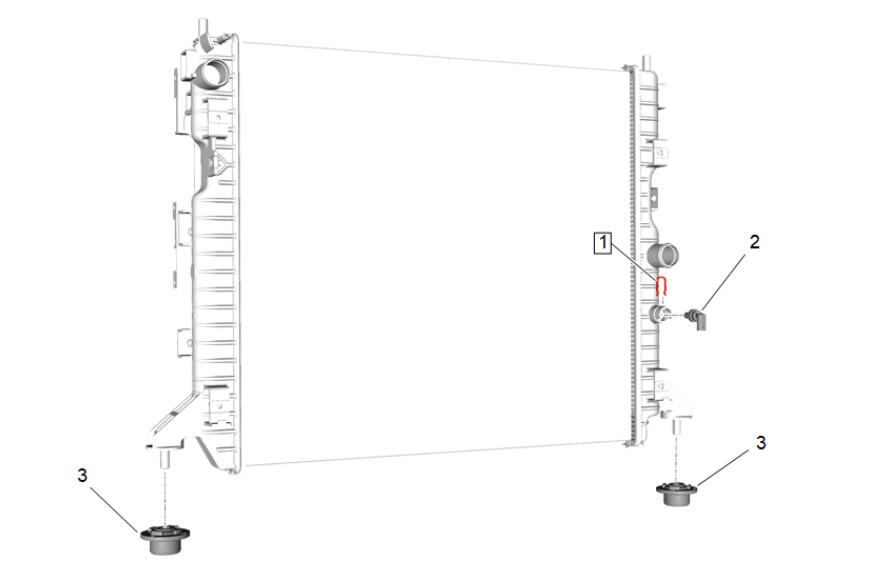

    Engine Coolant Temperature Sensor Retainer (1) - Remove

  71. Engine Coolant Temperature Sensor (2) - Remove
  72. Radiator Lower Insulator (3) - Remove [2x]
  73. GM5430410

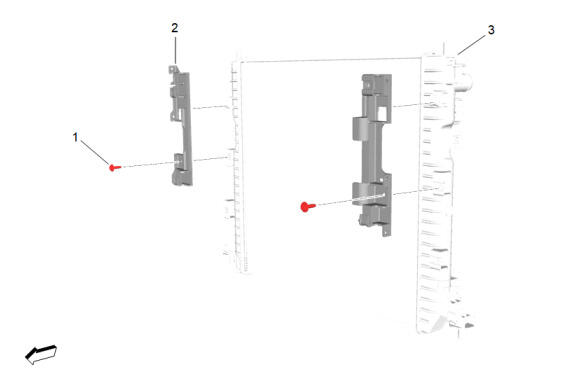

    Air Conditioning Condenser Bracket Bolt (1) - Remove [2x]

  74. Air Conditioning Condenser Bracket (2) @ Engine Radiator (3) - Remove [2x]
