Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Retainer Spring (1) - Release
- Charge Air Cooler Outlet Air Tube (2) @ Throttle Body (3) - Remove
Radiator Air Upper Baffle Retainer (1) - Remove [7x]
- Radiator Air Upper Baffle (2) - Remove
Wiring Harness Retainer (1) - Remove
- Radiator Upper Bracket Bolt (3) - Remove [4x]
- Radiator Upper Bracket (2) - Remove [2x]
Air Conditioning Evaporator Tube Clip Bolt (1) - Remove
- Air Conditioning Evaporator Tube Bracket (2) - Reposition
- Raise and support the vehicle. Lifting and Jacking the Vehicle
Front Bumper Fascia Center Air Deflector Screw (1) - Remove [10x]
Front Bumper Fascia Center Air Deflector Screw (1) - Remove [3x]
Front Bumper Fascia Center Air Deflector Screw (1) - Remove [6x]
- Front Bumper Fascia Center Air Deflector Bolt (2) - Remove [5x]
- Front Bumper Fascia Center Air Deflector Retainer (3) - Remove [2x]
Pull the front bumper fascia center air deflector (1) rearward and down from the front bumper fascia.
Radiator Air Front Lower Baffle Retainer (1) - Remove [3x]
Radiator Air Front Lower Baffle (1) - Remove

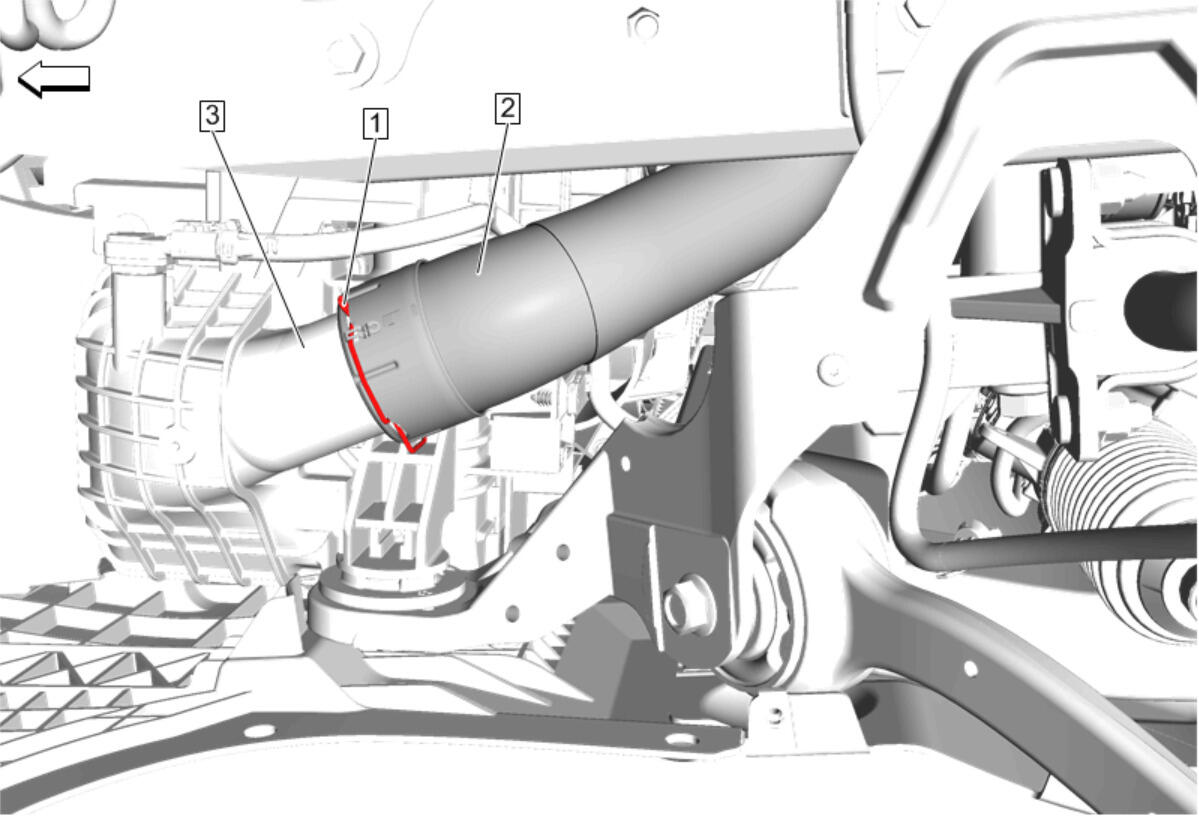

Retainer Spring (1) - Release
- Charge Air Cooler Outlet Air Tube (2) @ Charge Air Cooler (3) - Remove

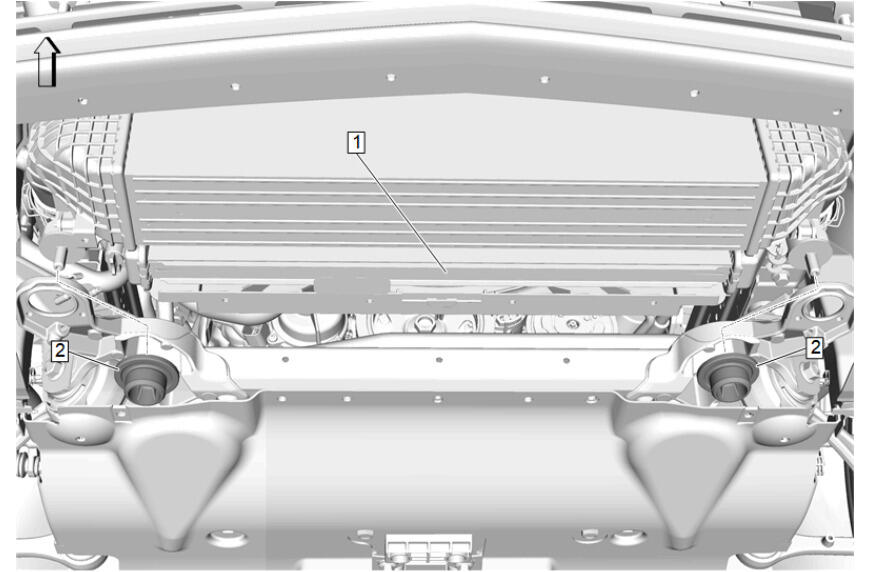

Lift upward on the engine radiator (1) until the 2 radiator lower insulators (2) have sufficient clearance.
- Radiator Lower Insulator (2) - Remove [2x]
