Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. Refer to Cooling System Draining and Filling (LF4 Static Fill) , or Cooling System Draining and Filling (LF4 GE 47716)
Raise and support the vehicle. Lifting and Jacking the Vehicle
NOTE:
Left side shown, right side similar.

Front Bumper Fascia Bolt- Right Side (1) - Remove [6x]
Front Bumper Fascia Lower Stiffener Bolt- Right Side (2) - Remove
Front Bumper Fascia Air Deflector Bolt- Right Side (3) - Remove [4x]
NOTE:
Left side shown, right side similar.

Front Bumper Fascia Air Deflector Bolt- Right Side (1) - Remove [6x]
Front Bumper Fascia Lower Reinforcement- Right Side (2) - Remove
Front Bumper Fascia (1) - Remove - Front Bumper Fascia Removal and Installation (without Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing CFV, CFZ)
Wiring Harness Retainer (1) - Remove
Radiator Upper Bracket Bolt (2) - Remove [2x]
Radiator Upper Bracket (3) - Remove
Electrical Connector (1) @ Engine Cooler Fan - Disconnect
Wiring Harness Retainer (3) @ Front End Sheet Metal Cross Brace Bracket - Remove
Forward Lamp Wiring Harness (2) - Reposition away
Charge Air Cooler Coolant Hose Retainer (1) - Release
Charge Air Cooler Coolant Hose (2) @ Engine Radiator - Remove
Radiator Air Side Upper Baffle Retainer (1) - Remove [2x]
Radiator Air Side Upper Baffle Retainer (2) - Remove [2x]

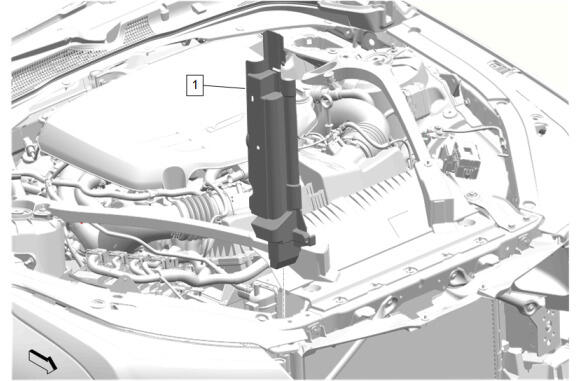

Radiator Air Side Upper Baffle - Right Side (1) - Remove

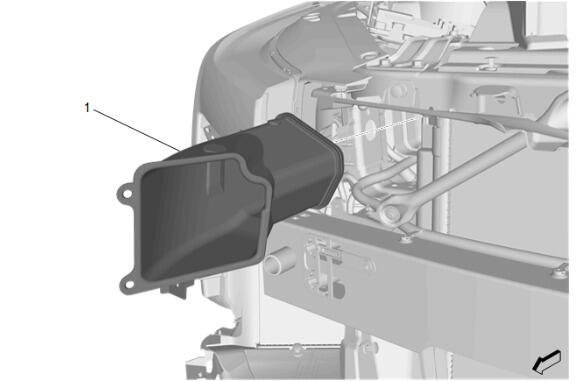

Intake Air Duct (1) - Remove
Transmission Fluid Auxiliary Cooler Bracket- Right Side - Remove
NOTE:
Some components not shown for graphic clarity.

Radiator Air Side Baffle Retainer (1) - Remove [2x]

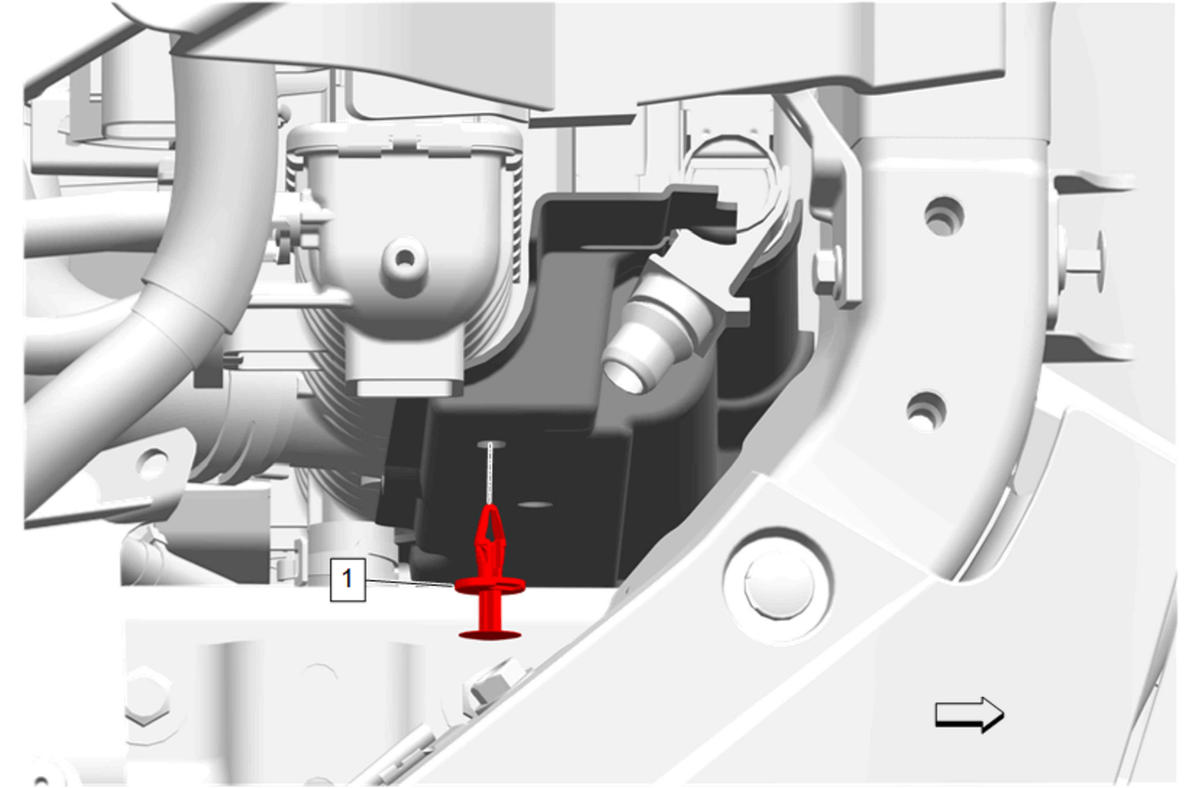

Radiator Air Side Baffle Retainer (1) - Remove
Radiator Air Side Baffle - Right Side (1) - Remove
