Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. GM5407645

    Front Bumper Fascia Center Air Deflector Screw (1) - Remove [10x]

  3. GM5468709

    Front Bumper Fascia Center Air Deflector Screw (1) - Remove [3x]

  4. GM5407644

    Front Bumper Fascia Center Air Deflector Screw (1) - Remove [6x]

  5. Front Bumper Fascia Center Air Deflector Bolt (2) - Remove [5x]
  6. Front Bumper Fascia Center Air Deflector Retainer (3) - Remove [2x]
  7. GM5407648

    Pull the front bumper fascia center air deflector (1) rearward and down from the front bumper fascia.

  8. GM5422654

    Radiator Air Seal Retainer (1) - Remove

  9. Lower the vehicle.
  10. GM5313404

    Wiring Harness Retainer (1) - Remove

  11. Radiator Upper Bracket Bolt (2) - Remove [2x]
  12. Radiator Upper Bracket (3) - Remove
  13. GM5422705

    Radiator Air Upper Baffle Retainer (1) - Remove

  14. Radiator Air Seal Retainer (2) - Remove [2x]

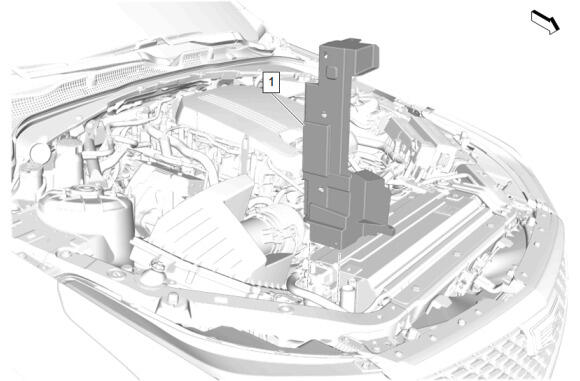

  15. GM5735748

    Remove the radiator air side baffle (1) by manipulating it from beneath the radiator air upper baffle and from between the vehicle components.
