Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. Refer to Cooling System Draining and Filling (LF4 Static Fill) , or Cooling System Draining and Filling (LF4 GE 47716)
Front Bumper Fascia Bolt- Left Side (1) - Remove [6x]
Front Bumper Fascia Lower Stiffener Bolt- Left Side (2) - Remove
Front Bumper Fascia Air Deflector Bolt- Left Side (3) - Remove [4x]
Front Bumper Fascia Air Deflector Bolt- Left Side (1) - Remove [6x]
Front Bumper Fascia Lower Reinforcement- Left Side (2) - Remove
Front Bumper Fascia (1) - Remove - Front Bumper Fascia Removal and Installation (without Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing CFV, CFZ)
Raise and support the vehicle. Lifting and Jacking the Vehicle
Radiator Upper Bracket Bolt (1) - Remove [2x]
Radiator Upper Bracket- Left Side (2) - Remove

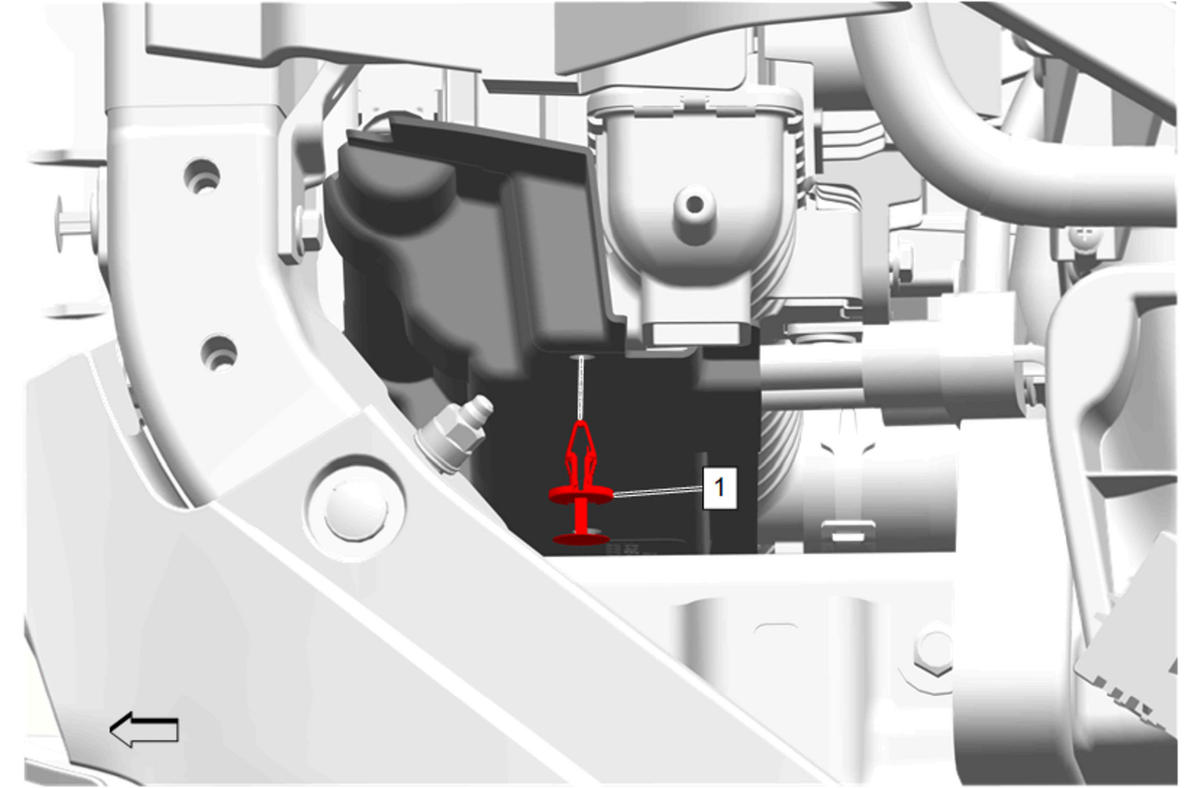

Radiator Air Side Upper Baffle Retainer (1) - Remove [2x]
Radiator Air Side Upper Baffle Retainer (2) - Remove [2x]

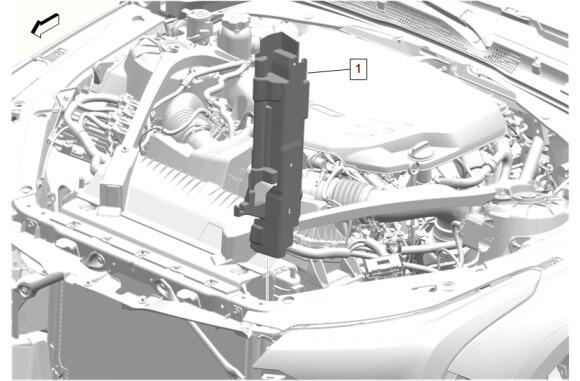

Radiator Air Side Upper Baffle - Left Side (1) - Remove

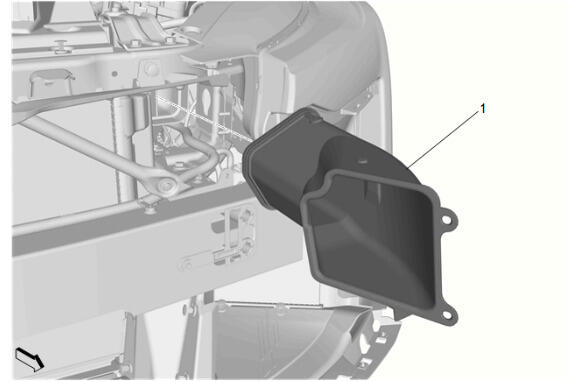

Auxiliary Intake Air Duct (1) - Remove
Transmission Fluid Auxiliary Cooler Bracket- Left Side - Remove
NOTE:
Some components not shown for graphic clarity.

Auxiliary Radiator Outlet Hose Retainer (1) - Disengage
Auxiliary Radiator Outlet Hose (2) @ Engine Radiator - Remove

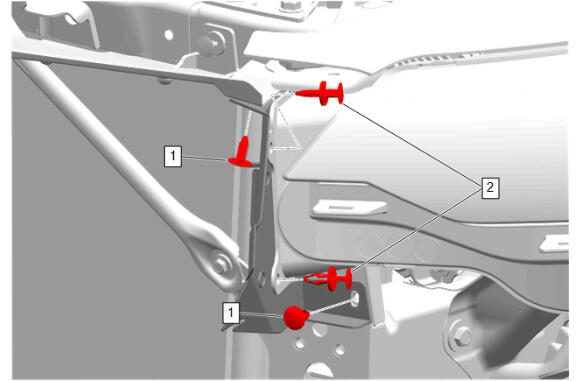

Radiator Air Side Baffle Retainer (3) - Remove [2x]
Radiator Air Side Baffle Retainer (1) - Remove

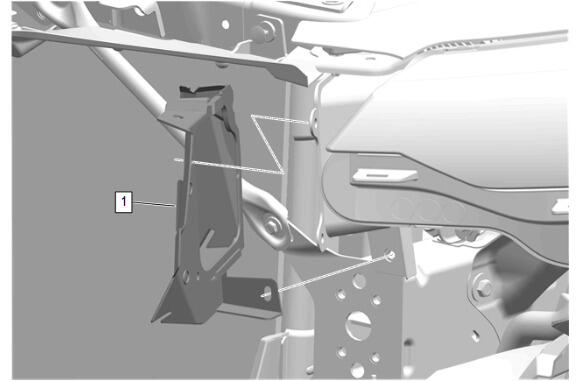

Radiator Air Side Baffle - Left Side (1) - Remove
