Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper fascia. Front Bumper Fascia Removal and Installation (without Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing CFV, CFZ)

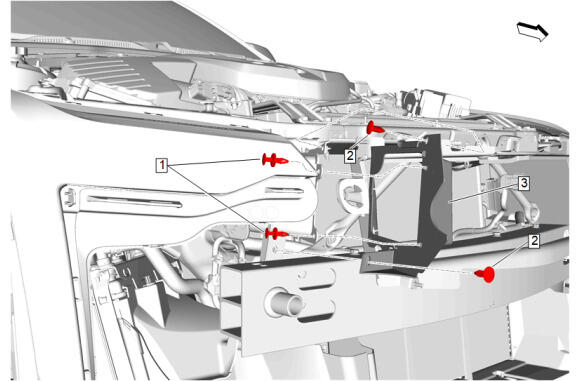

  2. GM5522060

    Radiator Air Upper Deflector Retainer (1) - Remove [2x]

  3. Radiator Air Upper Baffle Retainer (2) - Remove [2x]
  4. Radiator Air Front Upper Baffle (3) - Remove
