Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

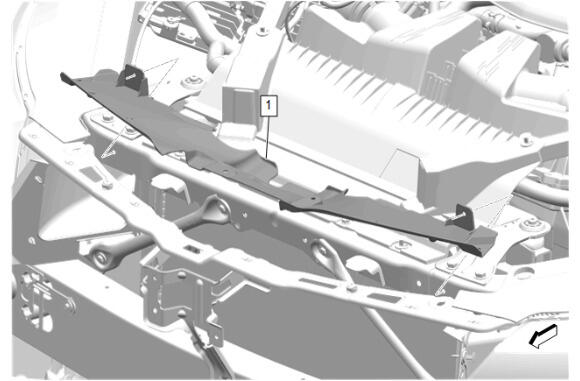

Radiator Air Front Upper Baffle (1) - Install

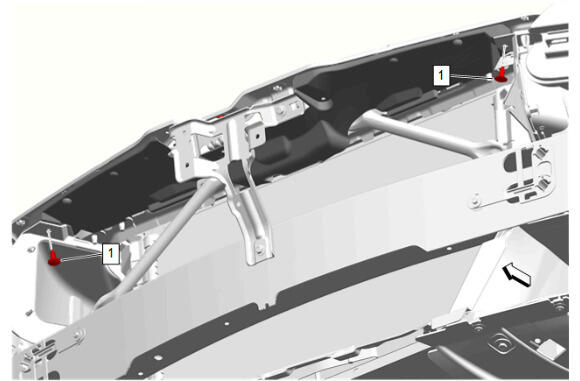

Radiator Air Side Baffle Retainer (1) - Install [2x]

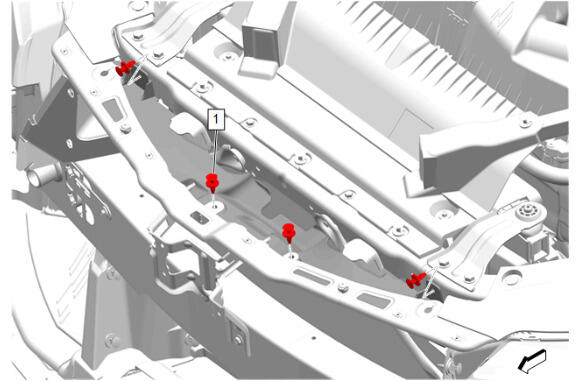

Radiator Air Upper Baffle Retainer (1) - Install [4x]
Hood Primary and Secondary Latch (1) - Install
Align the hood primary and secondary latch (1) with the marks made during removal.
- Hood Primary and Secondary Latch Bolt (2) - Install and tighten [2x] - Fastener Specifications
- Adjust the hood primary and secondary latch (1) if necessary.
Install the front bumper fascia. Front Bumper Fascia Removal and Installation (without Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing CFV, CFZ)
CAUTION:
Refer to Fastener Caution .
