Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

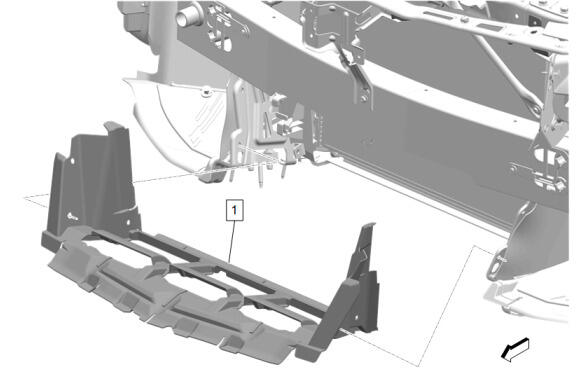

Radiator Air Front Lower Baffle (1) - Install

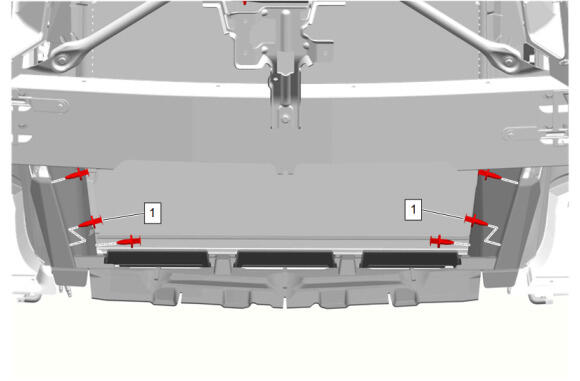

Radiator Air Front Lower Baffle Retainer (1) - Install [6x]

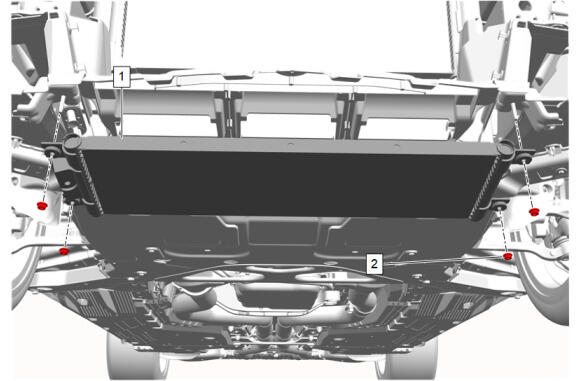

Transmission Fluid Auxiliary Cooler (1) - Install
- Transmission Fluid Auxiliary Cooler Bracket Nut (2) - Install and tighten [4x] - Fastener Specifications

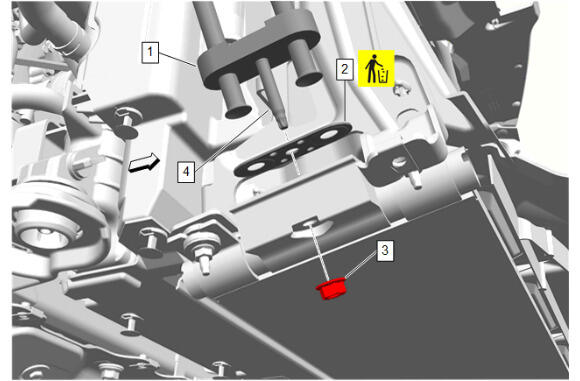

Transmission Fluid Cooler Seal (2) - Install NEW
- Transmission Fluid Cooler Inlet and Outlet Pipe (1) - Connect
- Transmission Fluid Cooler Pipe Nut (3) - Install and tighten - Fastener Specifications
Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation (without Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing CFV, CFZ)
- Check the transmission fluid level. Transmission Fluid Level and Condition Check
- Inspect for transmission fluid leaks. Fluid Leak Diagnosis
CAUTION:
Refer to Fastener Caution .
