Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

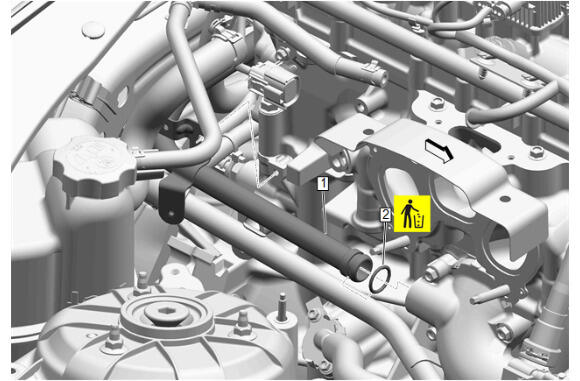

  1. GM5400363

    Water Pump Outlet Port Seal (2) - Install NEW

  2. Engine Coolant Thermostat Housing Inlet Pipe (1) - Install

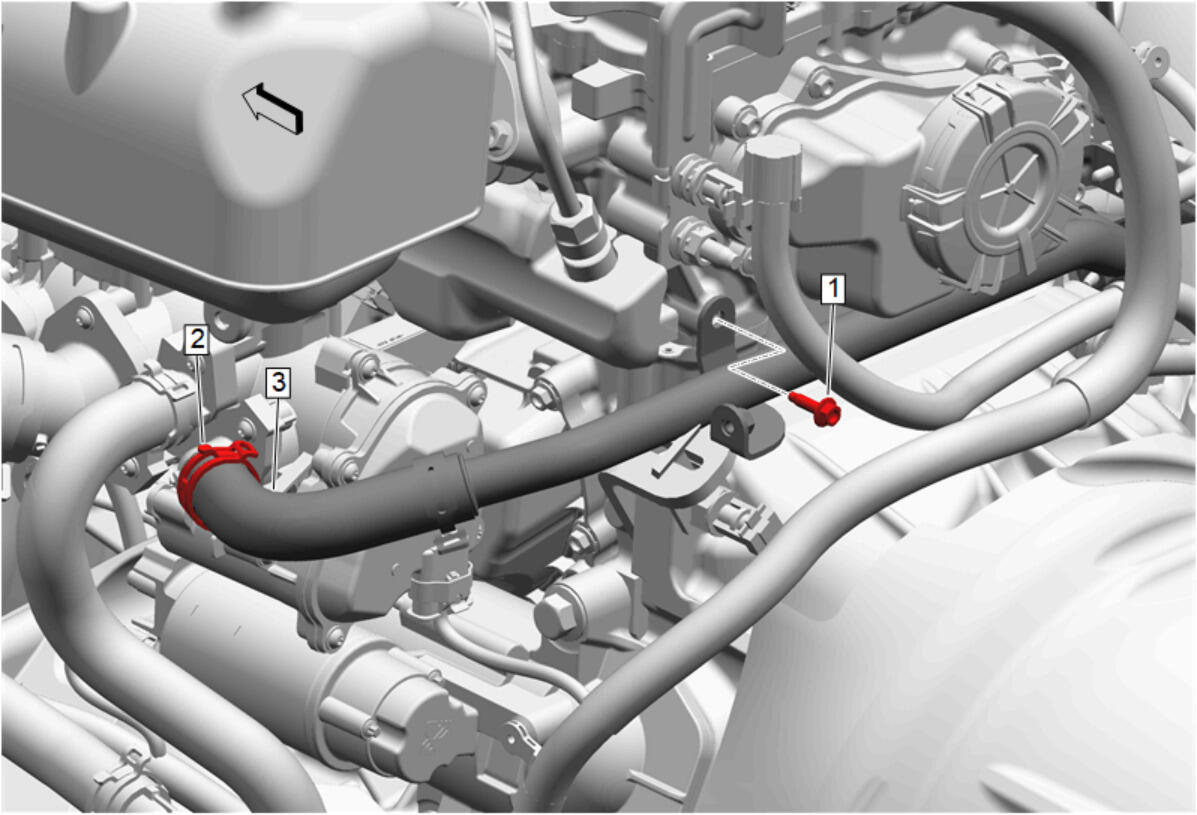

  3. GM5400353

    Engine Coolant Thermostat Housing Inlet Pipe (3) @ Engine Coolant Flow Control Valve - Install

  4. Hose Clamp (2) - Engage - Hose Clamp Replacement Guidelines - Spring Type
    5. CAUTION:

    Refer to Fastener Caution .

  5. Engine Coolant Thermostat Housing Bracket Bolt (1) - Install and tighten - Fastener Specifications

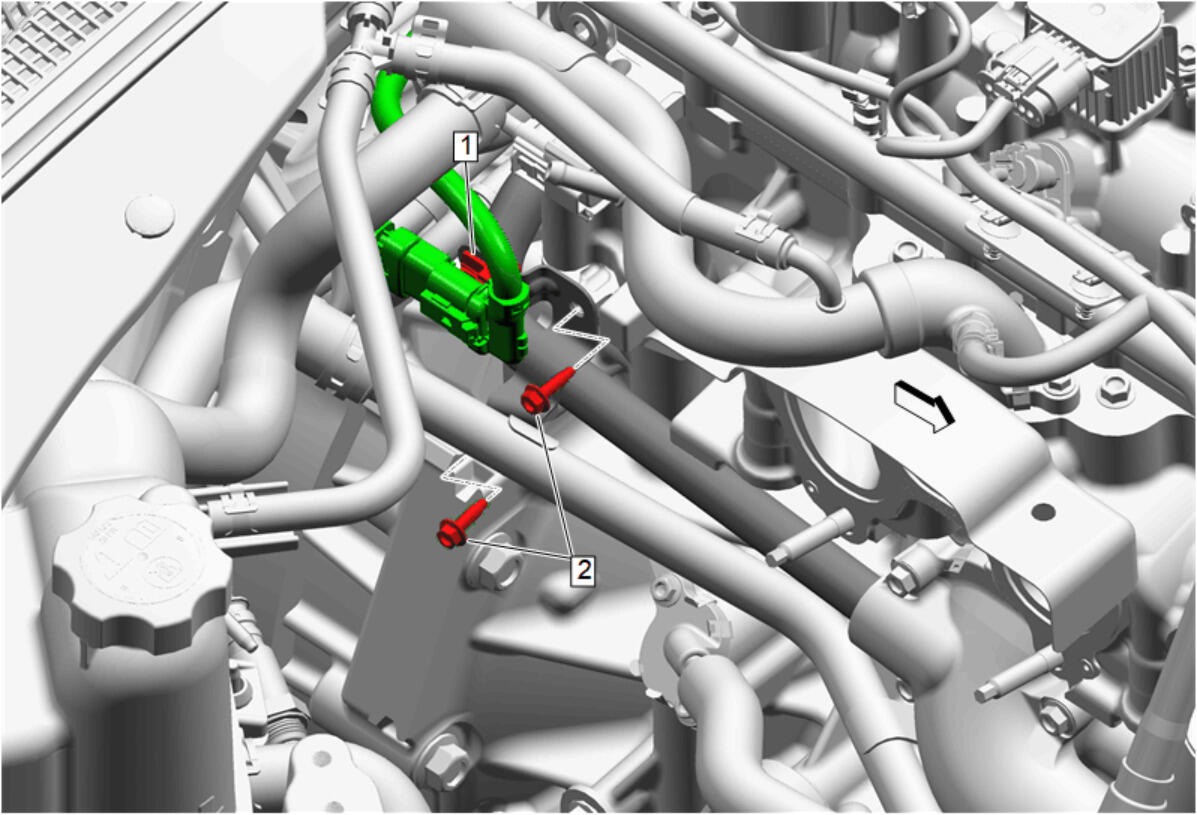

  6. GM5400117

    Engine Coolant Thermostat Housing Bracket Bolt (2) - Install and tighten [2x] - Fastener Specifications

  7. Engine Wiring Harness Connector (1) @ Engine Coolant Thermostat Housing Inlet Pipe - Install

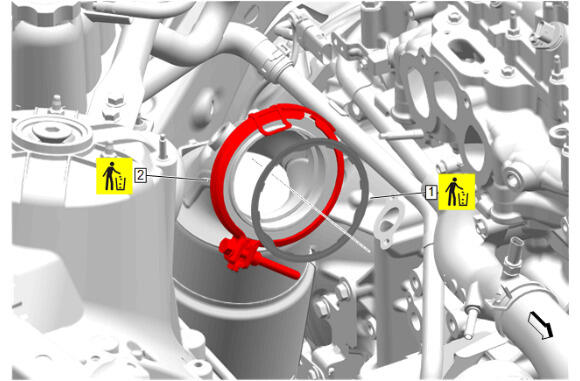

  8. GM5672187

    Exhaust Pipe Clamp (2) - Install NEW

  9. Catalytic Converter Gasket (1) - Install NEW
  10. GM5004022
    WARNING:

    When removing, handling or installing this component wear protective gloves. The sharp edges on the component may be very sharp and may cause injury.

    Turbocharger Oil Return Pipe Gasket (5) - Install NEW

  11. Turbocharger Oil Return Pipe Gasket (4) - Install NEW
  12. Turbocharger Oil Return Pipe Gasket (3) - Install NEW
  13. Turbocharger Oil Feed Pipe (2) @ Compressor Air Intake Turbocharger - Install
  14. Turbocharger Oil Feed Pipe Bolt (1) @ Compressor Air Intake Turbocharger - Install and tighten [2x] - Fastener Specifications
  15. GM5146550

    Turbocharger Gasket (2) - Install NEW

  16. Turbocharger Assembly (1) - Install
  17. GM5146546

    Turbocharger Nut (1) - Install and tighten [2x] - Fastener Specifications

  18. Turbocharger Bolt (2) - Install and tighten [2x] - Fastener Specifications
  19. GM5146481

    Turbocharger Oil Feed Pipe Bolt (4) - Install and tighten [4x] - Fastener Specifications

  20. Turbocharger Brace (3) - Install
  21. Turbocharger Bracket Bolt (2) - Install and tighten [2x] - Fastener Specifications
  22. Turbocharger Brace Nut (1) - Install and tighten - Fastener Specifications
  23. GM5156836

    Positive Crankcase Ventilation Tube (1) - Install NEW

  24. GM5517316

    Reposition the front axle vent hose (3), and electrical harness (4).

  25. Electrical Connector (2) - Connect [2x]
  26. Retainer (1) - Connect [3x]
  27. GM5395366

    Turbocharger Coolant Feed and Return Pipe Gasket (2) - Install NEW

  28. Turbocharger Coolant Feed and Return Pipe (1) - Install
  29. GM5395358

    Turbocharger Coolant Feed and Return Pipe Bolt (1) - Install [2x] - Fastener Specifications

  30. GM5395343

    Turbocharger Coolant Feed Hose (2) @ Turbocharger Coolant Feed and Return Pipe - Install

  31. Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
  32. GM5395337

    Compressor Air Intake Turbocharger Wastegate Actuator Rod (3) @ Turbocharger Wastegate Actuator - Connect

  33. Compressor Air Intake Turbocharger Wastegate Actuator Link Clip (2) - Install
  34. Compressor Air Intake Turbocharger Wastegate Actuator Link Spring (1) - Install
  35. GM5403738
    NOTE:

    Inspect on all sides of the warm up three-way catalytic converter to verify it is fully seated prior to tightening the exhaust pipe clamp.

    Exhaust Pipe Clamp (1) - Tighten - Fastener Specifications

    36. CAUTION:

    Phenolic spacer must be present to prevent galvanic/corrosive reaction and/or excessive temperature conduction between engine mount bracket and engine mount. Replace mount if phenolic spacer is missing or damaged. Failure to ensure phenolic spacer is intact and not damaged can lead to premature failure of engine mount and/or engine mount bracket.

  36. Ensure the phenolic spacer remains in place.
  37. Use the EN-51007  Global Engine Support Fixture to lower the right side of the engine onto the engine mount.
  38. GM5495033

    Engine Mount Bracket (1) - Install

  39. GM5491651
    CAUTION:

    Refer to Torque-to-Yield Fastener Caution .

    Engine Mount Bracket Bolt (1) - Install NEW and tighten [4x] - Fastener Specifications

  40. Use the EN-51007  Global Engine Support Fixture to lower the engine onto the engine mount.
  41. GM5491648

    Engine Mount Nut (1) - Install NEW and tighten - Fastener Specifications

  42. GM5407967

    Water Pump Cover (2) - Install

  43. Water Pump Cover Bolt (1) - Install and tighten [3x] - Fastener Specifications
  44. GM5494001

    Retainer (1) - Install

  45. GM5399142

    Charge Air Cooler Inlet Air Tube (2) @ Turbocharger (3) - Install

  46. Retainer Spring (1) - Engage
  47. GM5395459

    Turbocharger Heat Shield (1) - Install

  48. GM5395458

    Turbocharger Heat Shield Bolt (1) - Install and tighten [2x] - Fastener Specifications

  49. GM5395457

    Turbocharger Heat Shield Bolt (1) - Install and tighten [2x] - Fastener Specifications

  50. GM5399121
    CAUTION:

    Refer to Component Fastener Tightening Caution .

    NOTE:

    A special anti-seize compound is used on the heated oxygen sensor threads. The compound consists of liquid graphite and glass beads. The graphite will burn away, but the glass beads will remain, making the sensor easier to remove. New or service sensors will have the compound already applied to the threads. IF a sensor is removed and is to be reinstalled, the threads MUST have an anti-seize compound applied before installation. Adhesives, Fluids, Lubricants, and Sealers

    Using the EN-6179  Heated Oxygen Sensor Remover/Installer, install the heated oxygen sensor (1). Fastener Specifications

  51. Connect the electrical connector.
  52. GM5399073

    Air Cleaner Assembly (1) - Install

  53. GM5399053

    Air Cleaner Bolt (1) - Install and tighten - Fastener Specifications

  54. Connect the electrical connector and install all wiring harnesses to the air cleaner assembly.
  55. GM5398967

    Air Cleaner Outlet Duct (1) - Install

  56. Electrical Connector @ Evaporative Emission Canister Purge Solenoid Valve - Connect
  57. GM5398955

    Positive Crankcase Ventilation Tube (3) - Connect - Plastic Collar Quick Connect Fitting Service

  58. Evaporative Emission Canister Purge Tube (2) - Connect - Plastic Collar Quick Connect Fitting Service
  59. Air Cleaner Outlet Duct Clamp (1) - Tighten [2x] - Fastener Specifications
  60. GM5399501

    Exhaust Manifold Outlet Pipe Gasket (3) - Install NEW

  61. Exhaust Manifold Outlet Pipe (2) - Install
  62. Exhaust Manifold Outlet Pipe Bolt (1) - Install and tighten [2x] - Fastener Specifications
  63. GM5399499

    Exhaust Manifold Outlet Pipe (3) @ Engine Coolant Flow Control Valve - Install

  64. Hose Clamp (2) - Engage - Hose Clamp Replacement Guidelines - Spring Type
  65. Exhaust Manifold Outlet Pipe Bolt (1) - Install and tighten - Fastener Specifications
  66. GM5399498

    Engine Wiring Harness Retainer (1) @ Exhaust Manifold Outlet Pipe - Install

  67. GM5399494

    Exhaust Manifold Outlet Pipe Bolt (2) - Install and tighten - Fastener Specifications

  68. Engine Wiring Harness Connector (1) @ Exhaust Manifold Outlet Pipe - Install
  69. GM5399490

    Heater Inlet Hose (3) @ Exhaust Manifold Outlet Pipe - Install

  70. Turbocharger Coolant Feed and Return Pipe (2) @ Exhaust Manifold Outlet Pipe - Install
  71. Hose Clamp (1) - Engage [2x] - Hose Clamp Replacement Guidelines - Spring Type
  72. GM5399488

    Radiator Surge Tank Inlet Hose (3) @ Exhaust Manifold Outlet Pipe - Install

  73. Hose Clamp (2) - Engage - Hose Clamp Replacement Guidelines - Spring Type
  74. Electrical Connector (1) @ Engine Coolant Temperature Sensor - Connect
  75. GM5432174

    Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install

  76. GM5432171

    Push down on the front of the intake manifold cover (2).

  77. Intake Manifold Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
  78. Install the oil fill cap.
  79. Fill the cooling system. Cooling System Draining and Filling (L3B Static Fill) , or Cooling System Draining and Filling (L3B GE 47716)
