Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Cooling System Draining and Filling (L3B Static Fill) , or Cooling System Draining and Filling (L3B GE 47716)
  2. GM5488365

    Evaporative Emission Canister Purge Tube (1) - Disconnect - Plastic Collar Quick Connect Fitting Service

  3. Electrical Connector (2) @ Evaporative Emission Canister Purge Solenoid Valve - Disconnect
  4. Positive Crankcase Ventilation Tube (3) - Disconnect - Plastic Collar Quick Connect Fitting Service
  5. GM5488367

    Air Cleaner Outlet Duct Clamp (1) - Loosen [2x]

  6. GM5488369

    Air Cleaner Outlet Duct (1) - Remove

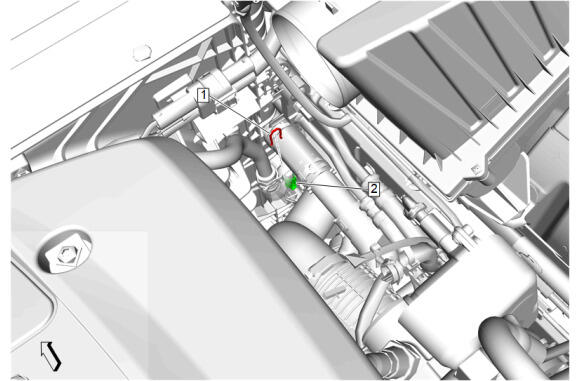

  7. GM5488371

    Engine Coolant Temperature Sensor Electrical Connector (2) - Disconnect

  8. Engine Coolant Temperature Sensor Retainer (1) - Remove

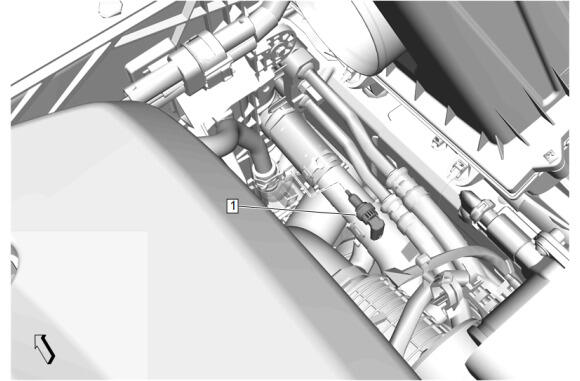

  9. GM5488373

    Engine Coolant Temperature Sensor (1) - Remove
