Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
  2. Remove the oil fill cap.
  3. GM5432171

    Intake Manifold Cover Bolt (1) - Remove [2x]

  4. Lift up on the front of the intake manifold cover (2).
  5. GM5432174

    Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Remove

  6. GM5456746

    Intake Manifold Cover Bolt (1) - Remove

  7. GM5456829

    Intake Manifold Cover Insulator (1) - Remove

  8. GM5504092
    WARNING:

    Refer to Diesel/Gasoline Vapors Warning .

    WARNING:

    Refer to Safety Glasses Warning .

    Fuel Feed Pipe (1) - Disconnect and reposition

  9. Evaporative Emission Pipe (2) - Disconnect and reposition
  10. GM5504095

    Evaporative Emission Canister Purge Tube (1) - Disconnect and reposition

  11. Retainer (2) - Unclip [3x]
  12. Radiator Surge Tank Inlet Hose (3) - Reposition
  13. GM5509132

    Throttle Body Electrical Connector (1) - Disconnect

  14. GM5504108

    Engine Wiring Harness Bolt (1) - Remove

  15. Electrical Connector (2) - Disconnect [2x]
  16. Retainer (3) - Unclip [4x]
  17. Engine Wiring Harness (4) - Reposition
  18. GM5402098

    Evaporative Emission Canister Purge Pump Bolt (1) - Remove [3x]

  19. Evaporative Emission Canister Purge Pump (2) - Remove
  20. GM5507437

    Intake Manifold Cover Bolt (1) - Remove [2x]

  21. Intake Manifold Cover Stud (2) - Remove [3x]
  22. GM5507441

    Upper Intake Manifold Cover (1) - Remove

  23. GM5517201

    Oil Level Indicator Tube Bracket Bolt (1) - Remove

  24. Oil Level Indicator Tube (2) - Remove
  25. GM5399157

    Retainer Spring (1) - Release

  26. Charge Air Cooler Outlet Air Tube (2) @ Throttle Body (3) - Remove
  27. GM5507451

    Retainer (1) - Unclip

  28. GM5508646

    Intake Manifold Bolt (1) - Remove [6x]

  29. GM5507557

    Intake Manifold (1) - Remove

  30. GM5045008

    Intake Manifold Gasket (3) - Remove and DISCARD [4x]

  31. Crankcase Vent Passage Seal (4) - Remove and DISCARD
  32. GM5399683

    Electrical Connector (1) @ Engine Coolant Temperature Sensor - Disconnect

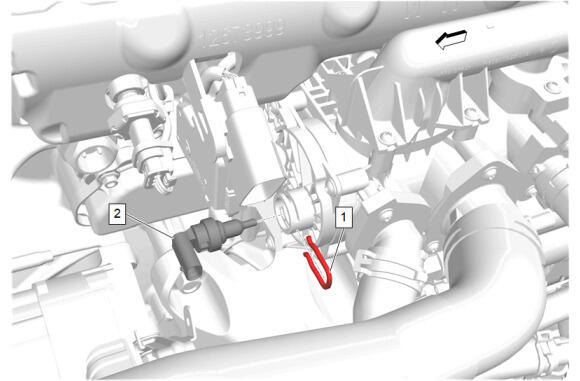

  33. GM5926290

    Engine Coolant Temperature Sensor Retainer (1) - Remove

  34. Engine Coolant Temperature Sensor (2) - Remove
