Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LSY with V03 Static Fill) , or Cooling System Draining and Filling (L3B Static Fill) , or Cooling System Draining and Filling (L3B GE 47716) , or Cooling System Draining and Filling (LSY with V03 GE 47716) , or Cooling System Draining and Filling (LF4 Static Fill) , or Cooling System Draining and Filling (LF4 GE 47716) .
  2. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
  3. GM5129599

    Using an appropriate tool, rotate the drive belt tensioner (1) counterclockwise and hold tension.

  4. GM5129786

    Accessory Drive Primary Belt (1) - Remove

  5. Slowly release tension on the drive belt tensioner.
  6. GM5335087

    Lift up on the front of the intake manifold cover (1).

  7. GM5314509

    Retainer Spring (1) - Release

  8. Charge Air Cooler Outlet Air Tube (2) @ Throttle Body - Remove
  9. Remove the tire and wheel assembly. Tire and Wheel Removal and Installation
  10. GM5394612
    NOTE:

    Quantity of fasteners may vary based on option content.

    Front Tire Front Air Deflector Bolt (1) - Remove [4x]

  11. Front Tire Front Air Deflector (2) - Remove
  12. GM5421515
    NOTE:

    Quantity of fasteners may vary based on option content.

    Engine Front Splash Shield Retainer (2) - Remove [2x]

  13. Engine Front Splash Shield Bolt (1) - Remove [5x]
  14. Engine Front Splash Shield (3) - Remove
  15. GM5422163

    Front Bumper Fascia Center Air Deflector Screw (1) - Remove [3x]

  16. Front Bumper Fascia Bolt (2) - Remove [2x]
  17. GM5422180

    Front Wheelhouse Liner Bolt (1) - Remove [7x]

  18. Front Wheelhouse Liner Retainer (2) - Remove [4x]
  19. Front Wheelhouse Liner (3) - Remove
  20. GM5314510

    Retainer Spring (1) - Release

  21. Charge Air Cooler Outlet Air Tube (2) @ Charge Air Cooler (3) - Remove
  22. GM5314114

    Air Conditioning Evaporator Tube Clip Bracket Bolt (4) - Remove

  23. Reposition the air conditioning compressor hose.
  24. GM5407593

    Radiator Inlet Hose Bracket Bolt (1) - Remove

  25. Radiator Inlet Hose Bracket (2) - Reposition away
  26. GM5319644

    Battery Positive Cable Nut (1) @ Generator - Remove

  27. Auxiliary Generator Battery Jumper Cable (2) - Remove
  28. GM5319645

    Electrical Connector (1) - Disconnect

  29. GM5395311

    Remove the upper generator bolt (1).

  30. Loosen the lower generator bolt (2) until it is disengaged from the generator bracket.
  31. GM5395328

    Remove the generator (1) and the generator lower mounting bolt.

  32. GM5324289

    Engine Coolant Heater Cord (1) @ Engine Coolant Heater (2) - Disconnect

  33. Drain the cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LSY with V03 Static Fill) , or Cooling System Draining and Filling (L3B Static Fill) , or Cooling System Draining and Filling (L3B GE 47716) , or Cooling System Draining and Filling (LSY with V03 GE 47716) , or Cooling System Draining and Filling (LF4 Static Fill) , or Cooling System Draining and Filling (LF4 GE 47716) .

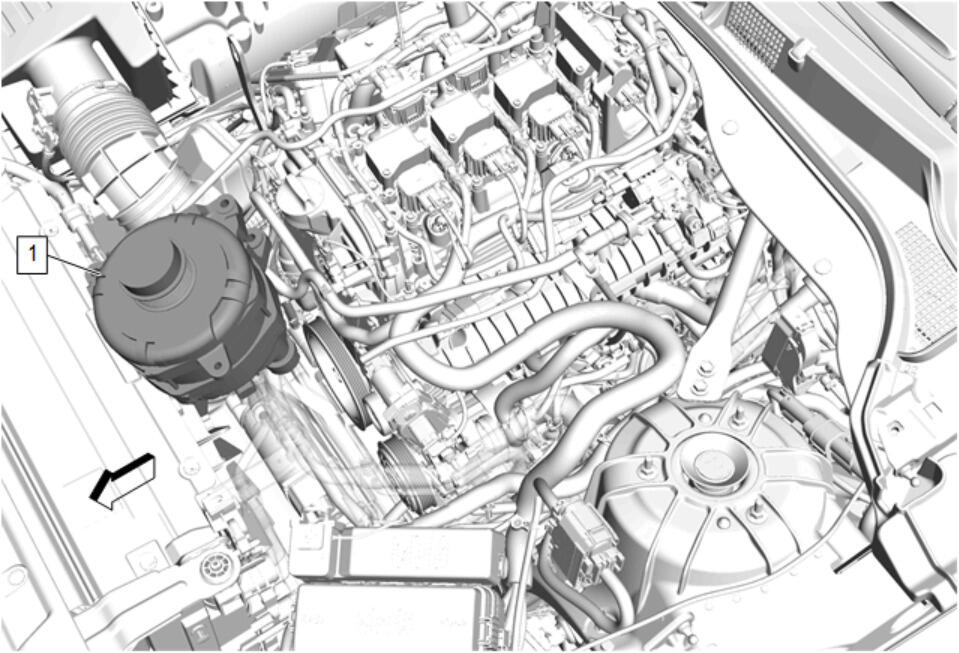

  34. GM5319649

    Generator (1) - Remove

  35. GM5324289

    Engine Coolant Heater Cord (1) @ Engine Coolant Heater (2) - Disconnect

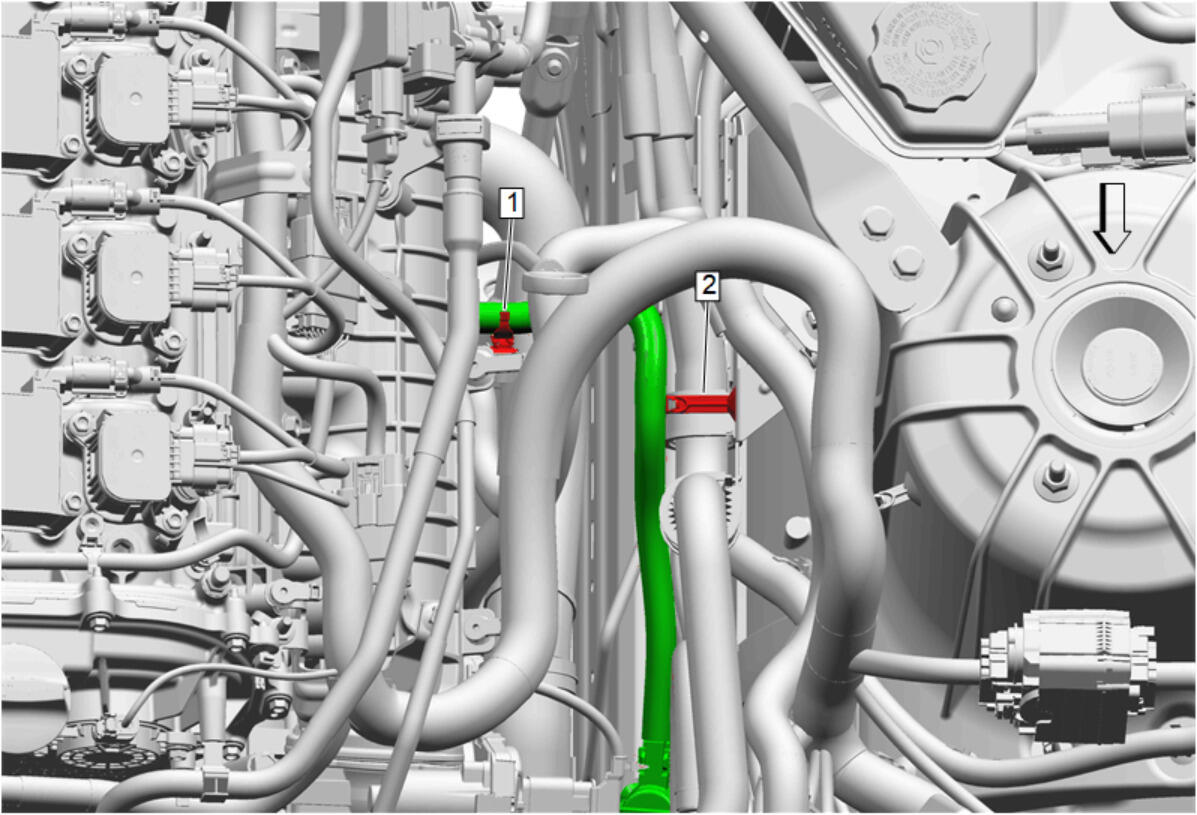

  36. GM5324676

    Engine Coolant Heater Cord Retainer (1) @ Engine Wiring Harness - Remove

  37. Engine Coolant Heater Cord Retainer (2) @ Air Conditioning Refrigerant Heat Exchanger - Remove
  38. GM5448429

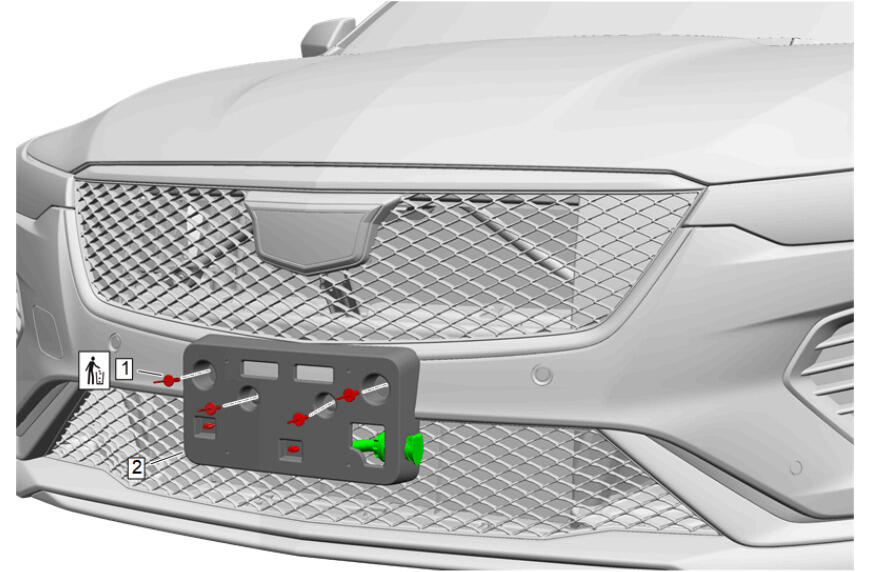

    Drill out the front bumper fascia extension rivets (1) and DISCARD [4x].

  39. Front License Plate Bracket (2) - Remove
  40. Separate the engine coolant heater wiring extension harness form the front license plate bracket.
  41. Raise and support the vehicle. Lifting and Jacking the Vehicle
  42. GM5407645

    Front Bumper Fascia Center Air Deflector Screw (1) - Remove [10x]

  43. GM5407644

    Front Bumper Fascia Center Air Deflector Screw (1) - Remove [6x]

  44. Front Bumper Fascia Center Air Deflector Bolt (2) - Remove [5x]
  45. Front Bumper Fascia Center Air Deflector Retainer (3) - Remove [2x]
  46. GM5407648

    Pull the front bumper fascia center air deflector (1) rearward and down from the front bumper fascia.

  47. GM5423335

    Radiator Air Front Lower Baffle Retainer (1) - Remove [3x]

  48. GM5423336

    Radiator Air Front Lower Baffle (1) - Remove

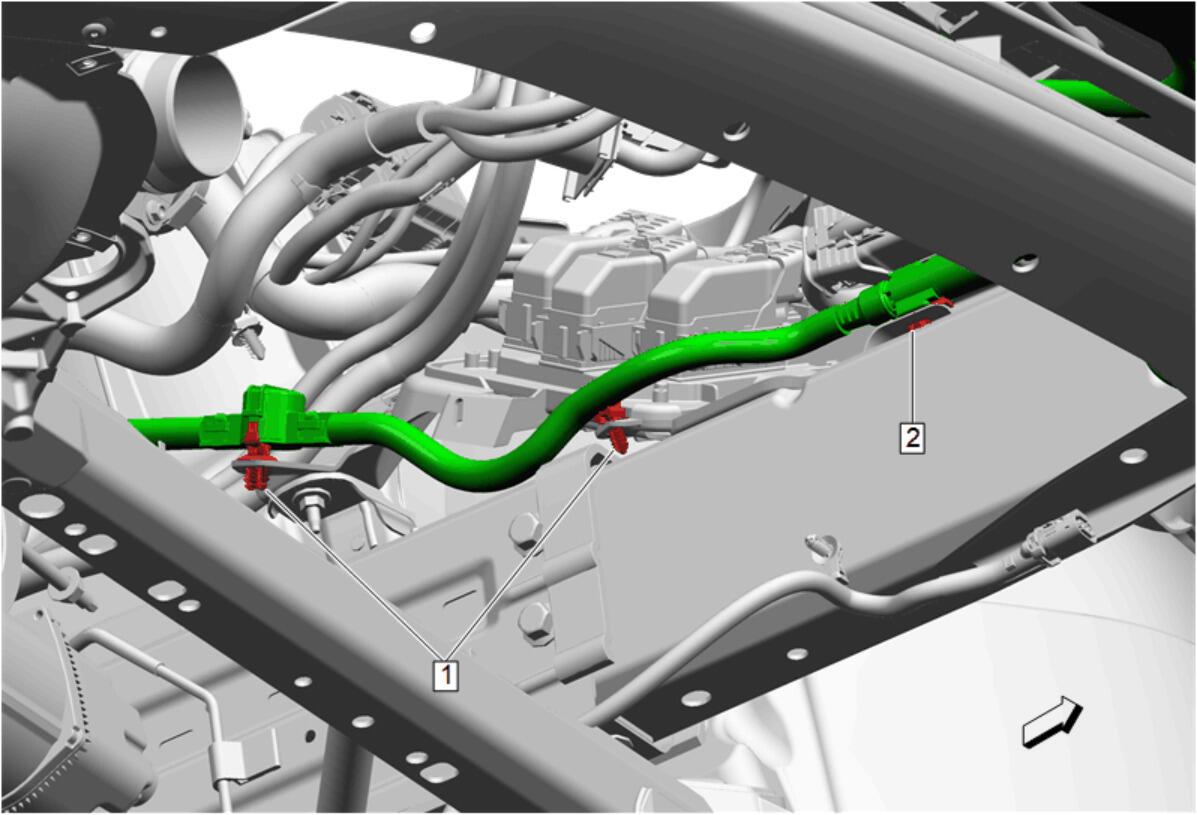

  49. GM5324680

    Engine Coolant Heater Cord Retainer (1) @ Engine Control Module Bracket - Remove [2x]

  50. Engine Coolant Heater Cord Retainer (2) @ Front Compartment Inner Side Rail - Remove

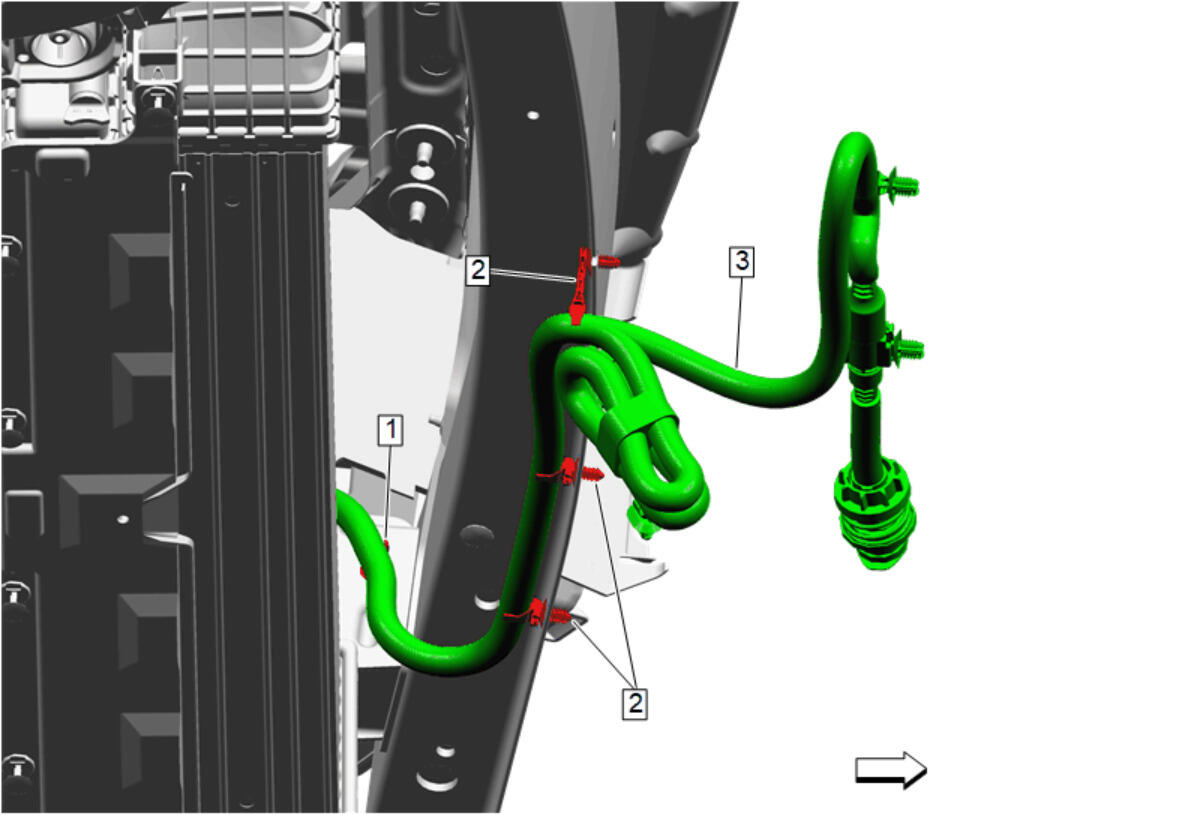

  51. GM5324686

    Engine Coolant Heater Cord Retainer (1) @ Front Compartment Inner Side Rail - Remove

  52. Engine Coolant Heater Cord Retainer (2) @ Front Bumper Impact Bar - Remove [3x]
  53. Engine Coolant Heater Wiring Extension Harness (3) - Remove
