Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the charge air cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LSY with V03 Static Fill) , or Cooling System Draining and Filling (L3B Static Fill) , or Cooling System Draining and Filling (L3B GE 47716) , or Cooling System Draining and Filling (LSY with V03 GE 47716) , or Cooling System Draining and Filling (LF4 Static Fill) , or Cooling System Draining and Filling (LF4 GE 47716)
  2. Oil Filler Cap - Remove
  3. GM5839283Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover Bolt (1) - Remove

  4. Intake Manifold Cover (2) - Remove
  5. Install the oil filler cap after removal of the intake manifold cover to prevent debris from falling into the engine.

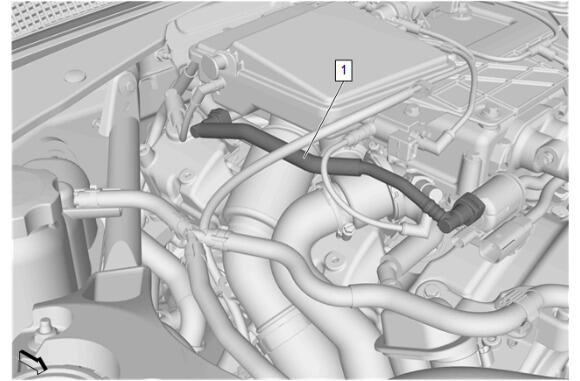

  6. GM5842421Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Purge Tube (1) - Disconnect [2x] - Plastic Collar Quick Connect Fitting Service

  7. Evaporative Emission Canister Purge Tube (1) - Remove

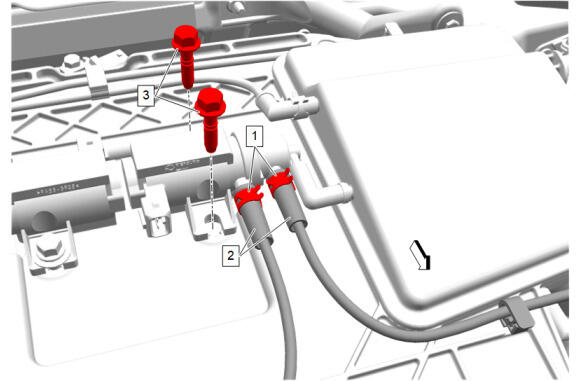

  8. GM5839336Courtesy of GENERAL MOTORS COMPANY

    Disconnect the turbocharger wastegate regulator solenoid valve electrical connector.

  9. Turbocharger Wastegate Actuator Vacuum Tank Bolt (3) - Remove [2x]

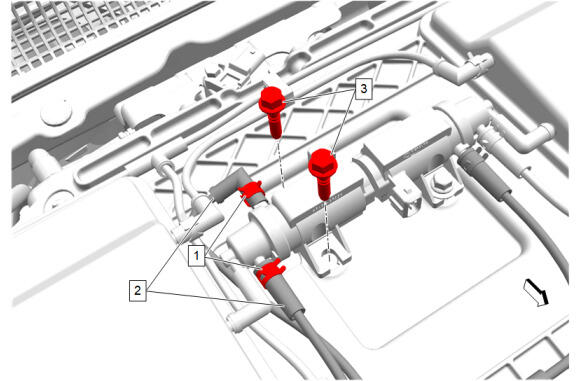

  10. GM5839386Courtesy of GENERAL MOTORS COMPANY

    Disconnect the turbocharger wastegate regulator solenoid valve electrical connector.

  11. Turbocharger Wastegate Actuator Vacuum Tank Bolt (3) - Remove [2x]

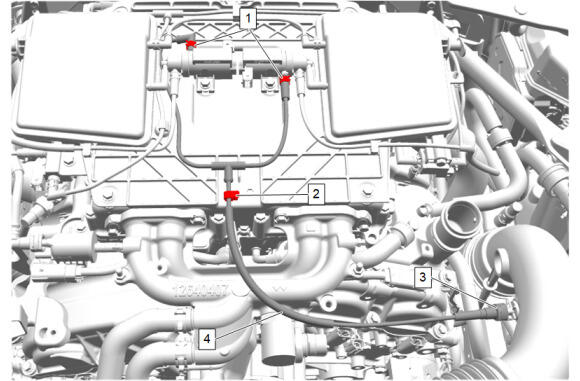

  12. GM5839308Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Vacuum Tank Solenoid Valve Tube (3) @ Auxiliary Air Cleaner Outlet Duct - Disconnect - Plastic Collar Quick Connect Fitting Service

  13. GM4052248Courtesy of GENERAL MOTORS COMPANY

    Charge Air Bypass Valve Vacuum Tank Tube (3) - Disconnect - Plastic Collar Quick Connect Fitting Service

  14. GM4057362Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Vacuum Source Tube (1) @ Vacuum Pump - Disconnect - Plastic Collar Quick Connect Fitting Service

  15. GM4057385Courtesy of GENERAL MOTORS COMPANY

    Charge Air Bypass Valve Tube (1) @ Charge Air Bypass Valve - Disconnect - Plastic Collar Quick Connect Fitting Service

  16. GM4057453Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Charge Air Bypass Valve (2) - Disconnect

  17. GM4057618Courtesy of GENERAL MOTORS COMPANY

    Charge Air Bypass Valve Tube (1) @ Charge Air Bypass Valve - Disconnect - Plastic Collar Quick Connect Fitting Service

  18. GM4057709Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Charge Air Bypass Valve (2) - Disconnect

  19. GM4057738Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Vacuum Tank Bolt (1) - Remove [2x]

  20. Turbocharger Wastegate Actuator Vacuum Tank (2) - Remove
  21. GM4182819Courtesy of GENERAL MOTORS COMPANY

    Charge Air Bypass Valve Hose Clamp (1) - Loosen

  22. Charge Air Bypass Valve Tube Connector Clamp (2) - Loosen
  23. Charge Air Bypass Valve (3) - Remove

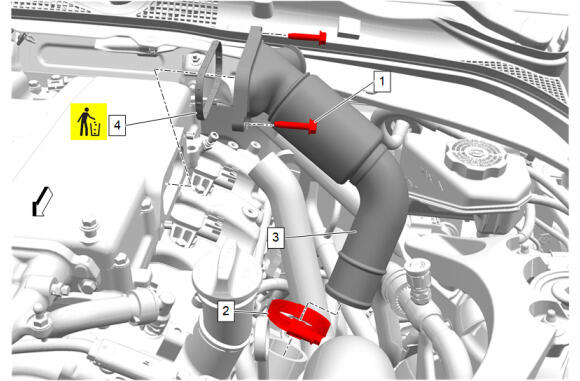

  24. GM5840576Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Inlet Air Tube Bolt (1) - Remove [2x]

  25. Charge Air Bypass Valve Tube Connector Clamp (2) - Loosen
  26. Charge Air Cooler Inlet Pipe (3) - Remove
  27. Charge Air Cooler Inlet Air Tube Seal (4) - Remove and DISCARD
  28. GM4182652Courtesy of GENERAL MOTORS COMPANY

    Charge Air Bypass Valve Hose Clamp (1) - Loosen

  29. Charge Air Bypass Valve Tube Connector Clamp (2) - Loosen
  30. Charge Air Bypass Valve (3) - Remove

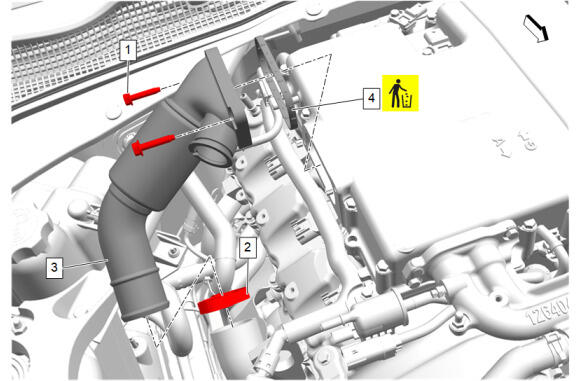

  31. GM5840540Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Inlet Air Tube Bolt (1) - Remove [2x]

  32. Charge Air Bypass Valve Tube Connector Clamp (2) - Loosen
  33. Charge Air Cooler Inlet Pipe (3) - Remove
  34. Charge Air Cooler Inlet Air Tube Seal (4) - Remove and DISCARD

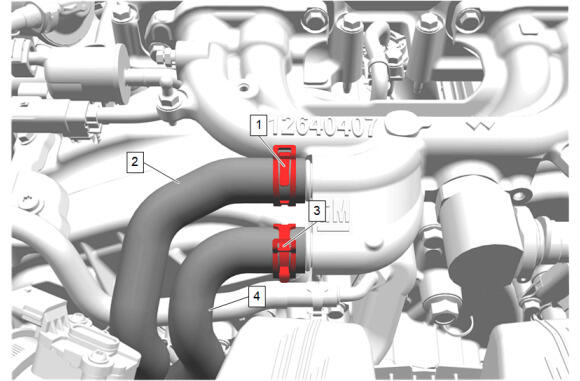

  35. GM5871728Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Coolant Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  36. Charge Air Cooler Coolant Hose (2) - Remove
  37. Charge Air Cooler Coolant Hose Clamp (3) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
  38. Charge Air Cooler Coolant Hose (4) - Remove

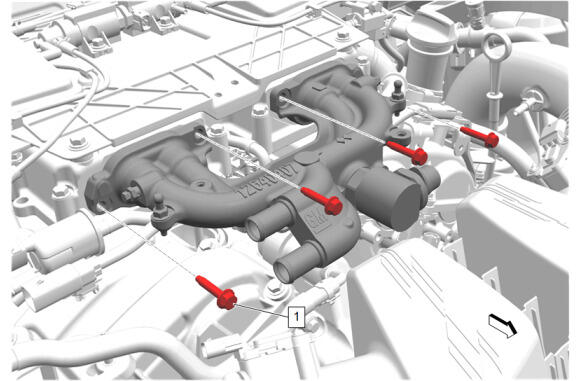

  39. GM5871741Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Coolant Manifold Bolt (1) - Remove [4x]

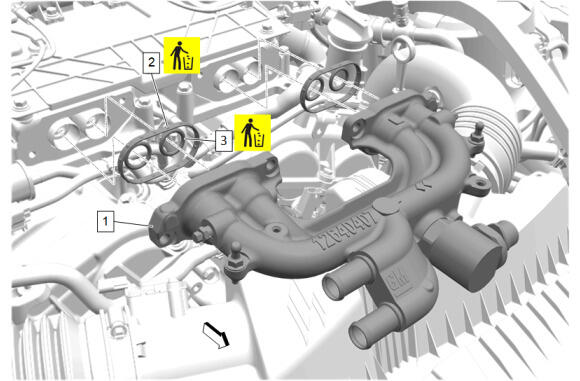

  40. GM5871751Courtesy of GENERAL MOTORS COMPANY

    Supercharger Water Manifold (1) - Remove

  41. Supercharger Water Manifold Gasket (2) - Remove and DISCARD [2x]
  42. Charge Air Cooler Coolant Pipe Seal (3) - Remove and DISCARD [4x]

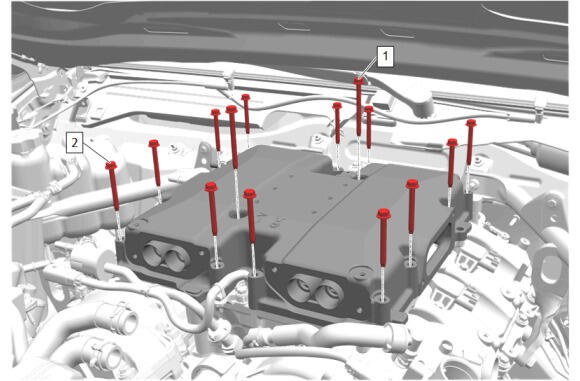

  43. GM5862662Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

  44. Charge Air Cooler Bolt (1) - Remove [2x]
  45. Charge Air Cooler Cover Bolt (2) - Remove [12x]

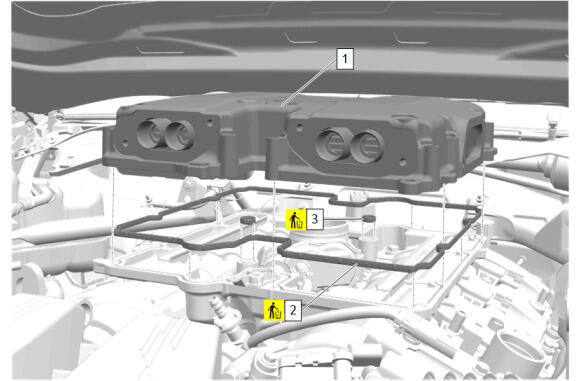

  46. GM5862663Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Cover (1) - Remove

  47. Intake Manifold Gasket (2) - Remove and DISCARD
  48. Charge Air Cooler Cover Seal (3) - Remove and DISCARD [2x]

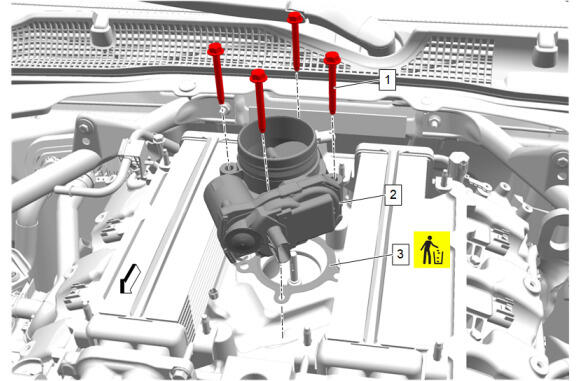

  49. GM5864493Courtesy of GENERAL MOTORS COMPANY

    Throttle Body Bolt (1) - Remove [4x]

  50. Throttle Body (2) - Remove
  51. Throttle Body Gasket (3) - Remove and DISCARD
