Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

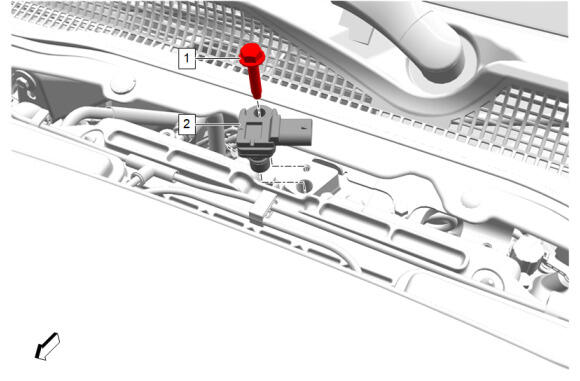

GM5838149Courtesy of GENERAL MOTORS COMPANY
  1. Manifold Absolute Pressure Sensor (2) - Install
    2. CAUTION:

    Refer to Fastener Caution .

  2. Manifold Absolute Pressure Sensor Bolt (1) - Install and tighten - Fastener Specifications
  3. Connect the manifold absolute pressure sensor electrical wiring harness connector.
