Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

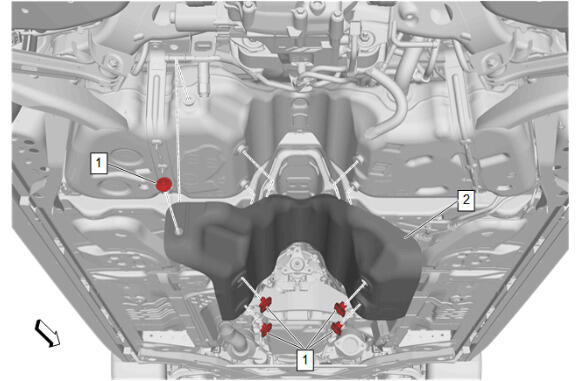

  1. GM5845791Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Shield (2) - Install

  2. Fuel Tank Shield Retainer (1) - Install [5x]
  3. GM5864749Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Auxiliary Cooler Outlet Pipe (2) - Install

  4. Transmission Fluid Auxiliary Cooler Outlet Pipe (2) - Connect
  5. Retaining Clip (3) - Engage
  6. Transmission Fluid Cooler Pipe Clip (1) - Engage [2x]
  7. GM5865268Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Auxiliary Cooler Inlet Pipe (2) - Install

  8. Transmission Fluid Auxiliary Cooler Inlet Pipe (2) - Connect
  9. Retaining Clip (3) - Engage
  10. Transmission Fluid Cooler Pipe Clip (1) - Engage [2x]
  11. GM5862587Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Cooler Inlet and Outlet Pipe (4) @ Transmission Fluid Auxiliary Cooler Outlet Pipe (5) - Connect

  12. Transmission Fluid Cooler Inlet and Outlet Pipe (2) @ Transmission Fluid Auxiliary Cooler Inlet Pipe (1) - Connect
  13. Retaining Clip (3) - Engage [2x]
  14. GM5867503Courtesy of GENERAL MOTORS COMPANY

    Position the propeller shaft (1) in the vehicle.

  15. GM5863691Courtesy of GENERAL MOTORS COMPANY

    If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation.
    16. CAUTION:

    Refer to Fastener Caution .

  16. Install the 2 propeller shaft bearing support bolts (1) and tighten. Fastener Specifications
  17. GM5863695Courtesy of GENERAL MOTORS COMPANY

    Align the reference mark (3) between the propeller shaft flange (1) and the rear axle pinion flange (2).

  18. GM5863697Courtesy of GENERAL MOTORS COMPANY

    If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation.
  19. Install the 3 rear propeller shaft nuts (2) and the 3 rear propeller shaft bolts (1).
  20. Tighten the 3 rear propeller shaft bolts (1). Fastener Specifications
  21. GM5867501Courtesy of GENERAL MOTORS COMPANY

    Align the reference mark (2) between the propeller shaft flange (3) and the output flange (1) of the transmission.

  22. GM5867502Courtesy of GENERAL MOTORS COMPANY

    If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation.
  23. Install the 3 front propeller shaft nuts (1) and the 3 front propeller shaft bolts (2).
  24. Tighten the 3 front propeller shaft bolts (2). Fastener Specifications
  25. GM5334717Courtesy of GENERAL MOTORS COMPANY

    Floor Panel Number 2 Cross Bar Reinforcement (2) - Install

  26. Floor Panel Number 2 Cross Bar Reinforcement Bolt (1) - Install and tighten [4x] - Fastener Specifications
  27. GM5865888Courtesy of GENERAL MOTORS COMPANY

    Exhaust Intermediate Underbody Heat Shield (2) - Install

  28. Exhaust Heat Shield Bolt (1) - Install and tighten [2x] - Fastener Specifications
  29. GM5865329Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Gasket (2) - Install NEW

  30. With the aid of an assistant, install the exhaust muffler (1).
  31. GM5865300Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler Hanger Bracket Nut (1) - Install and tighten [4x] - Fastener Specifications

  32. GM5865293Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

  33. GM5865287Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

  34. GM5406632Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator-Right Side (2) - Install [2x]

  35. GM5406578Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator-Left Side (2) - Install [2x]

  36. GM5865271Courtesy of GENERAL MOTORS COMPANY

    Exhaust Pipe Clamp (1) - Tighten [2x] - Fastener Specifications

  37. GM5865265Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Nut (1) - Install and tighten [2x] - Fastener Specifications

  38. GM5400756Courtesy of GENERAL MOTORS COMPANY

    Floor Panel Reinforcement (2) - Install

  39. Floor Panel Number 4 Cross Bar Reinforcement Bolt (1) - Install and tighten [6x] - Fastener Specifications
  40. GM5854893Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Deflector- Left Side (5) - Install

  41. Transmission Fluid Cooler Pipe Bracket Bolt- Left Side (3) - Install and tighten [2x] - Fastener Specifications
  42. Underbody Rear Air Deflector Nut- Left Side (2) - Install and tighten [5x] - Fastener Specifications
  43. Underbody Front Air Deflector Bolt- Left Side (1) - Install and tighten [6x] - Fastener Specifications
  44. GM5839256Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Deflector- Right Side (5) - Install

  45. Transmission Fluid Cooler Pipe Bracket Bolt- Right Side (3) - Install and tighten [2x] - Fastener Specifications
  46. Underbody Rear Air Deflector Nut- Right Side (2) - Install and tighten [5x] - Fastener Specifications
  47. Underbody Front Air Deflector Bolt- Right Side (1) - Install and tighten [6x] - Fastener Specifications
  48. GM5400642Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Deflector- Right Side (5) - Install

  49. Underbody Rear Air Deflector Nut- Right Side (3) - Install and tighten [3x] - Fastener Specifications
  50. Underbody Rear Air Deflector Bolt- Right Side (2) - Install and tighten [3x] - Fastener Specifications
  51. Underbody Rear Air Deflector Nut- Right Side (4) - Install and tighten [2x] - Fastener Specifications
  52. Rear Wheelhouse Liner Bolt- Right Side (1) - Install and tighten - Fastener Specifications
  53. GM5400553Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Deflector- Left Side (5) - Install

  54. Underbody Rear Air Deflector Nut- Left Side (2) - Install and tighten [3x] - Fastener Specifications
  55. Underbody Rear Air Deflector Bolt- Left Side (3) - Install and tighten [3x] - Fastener Specifications
  56. Underbody Rear Air Deflector Nut- Left Side (4) - Install and tighten [2x] - Fastener Specifications
  57. Rear Wheelhouse Liner Bolt- Left Side (1) - Install and tighten - Fastener Specifications
  58. GM5395705Courtesy of GENERAL MOTORS COMPANY

    Rear Tire Front Air Deflector- Left Side and Right Side (2) - Install [2x]

  59. Rear Tire Front Air Deflector Bolt- Left Side and Right Side (1) - Install and tighten [4x] - Fastener Specifications
  60. Lower the vehicle.
  61. Check the transmission fluid level. Transmission Fluid Level and Condition Check
  62. Inspect for transmission fluid leaks. Fluid Leak Diagnosis
  63. Inspect the exhaust system for leaks.
