Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

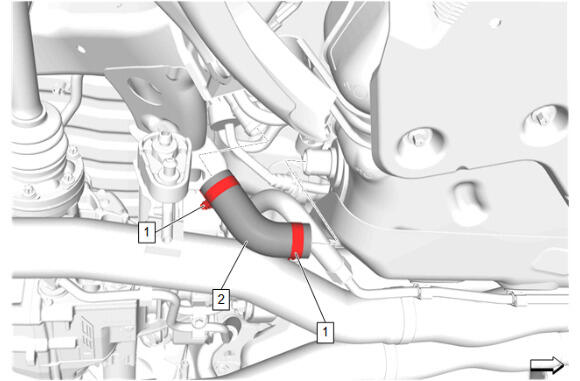

  1. GM5840359Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Filler Hose (2) - Install

    CAUTION:

    Refer to Fastener Caution .

  2. Fuel Tank Filler Hose Clamp (1) - Tighten [2x] - Fastener Specifications
  3. Remove the support and lower the vehicle.
  4. Refill the fuel tank.
  5. Inspect for fuel leaks.
