Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LSY with V03 Static Fill) , or Cooling System Draining and Filling (L3B Static Fill) , or Cooling System Draining and Filling (L3B GE 47716) , or Cooling System Draining and Filling (LSY with V03 GE 47716) , or Cooling System Draining and Filling (LF4 Static Fill) , or Cooling System Draining and Filling (LF4 GE 47716)
Relieve the fuel system pressure. Fuel Pressure Relief
Courtesy of GENERAL MOTORS COMPANY

Windshield Wiper Arm (3) - Remove [2x]
1. Using the appropriate trim tool, remove the windshield wiper arm finish cap (1) from the windshield wiper arm (3).
2. Windshield Wiper Arm Nut (2) - Remove
3. Grasp the outer end of the windshield wiper arm (3) and gently rock the arm back and forth to remove it from the windshield wiper transmission pivot shaft.
Courtesy of GENERAL MOTORS COMPANY

Air Inlet Grille Panel Extension (1) - Remove [2x]
1. Apply two layers of masking tape around the top edge of the service part to prevent paint damage.
2. Using a suitable plastic trim tool, carefully release the air inlet grille panel extension clips.
3. Remove the air inlet grille panel extension (1) from the air inlet grille panel and upper front fender.
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Side Sight Shield Retainer (1) - Remove [3x]
Front Compartment Side Sight Shield (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Remove the 2 hood rear outer air inlet seal retainer (1) from the left and right side.
Remove the hood rear outer air inlet seal (2) from the left and right side.
Courtesy of GENERAL MOTORS COMPANY

Air Inlet Grille Panel Retainer (1) - Remove [2x]
Air Inlet Grille Panel Extension (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Air Inlet Grille Panel Retainer (1) - Remove [6x]
Air Inlet Grille Panel (2) - Remove
1. Disconnect the windshield washer nozzle hose from the windshield washer pump hose.
2. Lift the front edge of the air inlet grille panel (2) and slide the panel forward from both hood hinges to remove.
Courtesy of GENERAL MOTORS COMPANY

Windshield Wiper System Module Shield (1) - Remove

NOTE:

To prevent erroneous DTC's, disconnect the battery negative cable before disconnecting the windshield wiper motor electrical connector.

Disconnect the battery negative cable. - Battery Negative Cable Disconnection and Connection
Courtesy of GENERAL MOTORS COMPANY

Disconnect the windshield wiper motor electrical connector.
Windshield Wiper System Module Bolt (1) - Remove [2x]
Slide the windshield wiper system module (2) inboard to release the grommet from the plenum and remove the windshield wiper system module (2) from the vehicle.
Courtesy of GENERAL MOTORS COMPANY

Air Inlet Deflector Water Deflector Retainer (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Air Inlet Deflector Water Deflector (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Plenum Front Panel Nut (1) - Remove [3x]
Plenum Front Panel Bolt (2) - Remove [3x]
Disconnect the electrical connector.
Pull the forward lamp wiring harness (3) out from the plenum front panel.
Courtesy of GENERAL MOTORS COMPANY

Plenum Front Panel Bolt (1) - Remove [4x]
Plenum Front Panel Nut (2) - Remove [3x]
Courtesy of GENERAL MOTORS COMPANY

Plenum Front Panel (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
This is a push nut.

Plenum Panel Nut (1) - Remove [9x]
Dash Panel Outer Upper Insulator (2) - Remove
Plenum Front Panel (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

Engine Rear Noise Shield Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Engine Rear Noise Shield Bolt (1) - Remove [2x]
Retainer (2) - Unclip [3x]
Wiring Harness (3) - Reposition
Courtesy of GENERAL MOTORS COMPANY

Fuel Pipe Shield (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

WARNING:
The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.

Engine Rear Noise Shield (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Fuel Feed Pipe (1) - Disconnect - Metal Collar Quick Connect Fitting Service
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) @ Fuel Feed Pipe Bracket (2) - Unclip [2x]
Courtesy of GENERAL MOTORS COMPANY

Fuel Feed Pipe Bolt (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

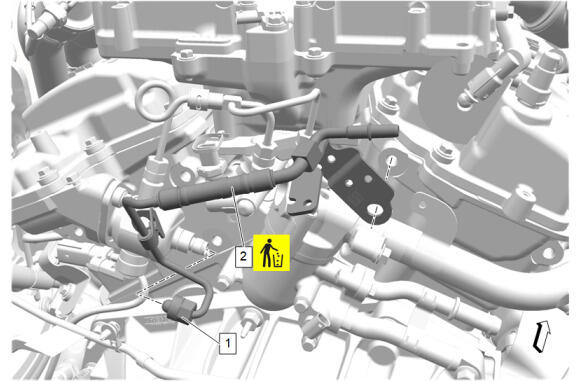

NOTE:
High pressure fuel feed pipes are one time use only. ALWAYS install a NEW high pressure fuel feed pipe if the pipe is removed OR the fittings are loosened.

Fuel Feed Pipe Fitting (1) - Loosen until disengaged
Fuel Feed Pipe (2) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Temperature Sensor Electrical Connector (1) - Disconnect
Engine Coolant Thermostat Housing Bolt (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Temperature Sensor Retainer (1) - Remove
Engine Coolant Temperature Sensor (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Temperature Sensor Seal (1) - Remove and DISCARD
