Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Relieve the fuel system pressure. Fuel Pressure Relief
  2. Drain the charge air cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LSY with V03 Static Fill) , or Cooling System Draining and Filling (L3B Static Fill) , or Cooling System Draining and Filling (L3B GE 47716) , or Cooling System Draining and Filling (LSY with V03 GE 47716) , or Cooling System Draining and Filling (LF4 Static Fill) , or Cooling System Draining and Filling (LF4 GE 47716)
  3. Oil Filler Cap - Remove
  4. GM5839283Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover Bolt (1) - Remove

  5. Intake Manifold Cover (2) - Remove
  6. Install the oil filler cap after removal of the intake manifold cover to prevent debris from falling into the engine.
  7. GM5842421Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Purge Tube (1) - Disconnect [2x] - Plastic Collar Quick Connect Fitting Service

  8. Evaporative Emission Canister Purge Tube (1) - Remove
  9. GM5839336Courtesy of GENERAL MOTORS COMPANY

    Disconnect the turbocharger wastegate regulator solenoid valve electrical connector.

  10. Turbocharger Wastegate Actuator Vacuum Tank Bolt (3) - Remove [2x]
  11. GM5839386Courtesy of GENERAL MOTORS COMPANY

    Disconnect the turbocharger wastegate regulator solenoid valve electrical connector.

  12. Turbocharger Wastegate Actuator Vacuum Tank Bolt (3) - Remove [2x]
  13. GM5839308Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Vacuum Tank Solenoid Valve Tube (3) @ Auxiliary Air Cleaner Outlet Duct - Disconnect - Plastic Collar Quick Connect Fitting Service

  14. GM4052248Courtesy of GENERAL MOTORS COMPANY

    Charge Air Bypass Valve Vacuum Tank Tube (3) - Disconnect - Plastic Collar Quick Connect Fitting Service

  15. GM4057362Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Vacuum Source Tube (1) @ Vacuum Pump - Disconnect - Plastic Collar Quick Connect Fitting Service

  16. GM4057385Courtesy of GENERAL MOTORS COMPANY

    Charge Air Bypass Valve Tube (1) @ Charge Air Bypass Valve - Disconnect - Plastic Collar Quick Connect Fitting Service

  17. GM4057453Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Charge Air Bypass Valve (2) - Disconnect

  18. GM4057618Courtesy of GENERAL MOTORS COMPANY

    Charge Air Bypass Valve Tube (1) @ Charge Air Bypass Valve - Disconnect - Plastic Collar Quick Connect Fitting Service

  19. GM4057709Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Charge Air Bypass Valve (2) - Disconnect

  20. GM4057738Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Vacuum Tank Bolt (1) - Remove [2x]

  21. Turbocharger Wastegate Actuator Vacuum Tank (2) - Remove
  22. GM5871728Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Coolant Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  23. Charge Air Cooler Coolant Hose (2) - Remove
  24. Charge Air Cooler Coolant Hose Clamp (3) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
  25. Charge Air Cooler Coolant Hose (4) - Remove
  26. GM5871741Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Coolant Manifold Bolt (1) - Remove [4x]

  27. GM5871751Courtesy of GENERAL MOTORS COMPANY

    Supercharger Water Manifold (1) - Remove

  28. Supercharger Water Manifold Gasket (2) - Remove and DISCARD [2x]
  29. Charge Air Cooler Coolant Pipe Seal (3) - Remove and DISCARD [4x]
  30. GM4182819Courtesy of GENERAL MOTORS COMPANY

    Charge Air Bypass Valve Hose Clamp (1) - Loosen

  31. Charge Air Bypass Valve Tube Connector Clamp (2) - Loosen
  32. Charge Air Bypass Valve (3) - Remove
  33. GM5840576Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Inlet Air Tube Bolt (1) - Remove [2x]

  34. Charge Air Bypass Valve Tube Connector Clamp (2) - Loosen
  35. Charge Air Cooler Inlet Pipe (3) - Remove
  36. Charge Air Cooler Inlet Air Tube Seal (4) - Remove and DISCARD
  37. GM4182652Courtesy of GENERAL MOTORS COMPANY

    Charge Air Bypass Valve Hose Clamp (1) - Loosen

  38. Charge Air Bypass Valve Tube Connector Clamp (2) - Loosen
  39. Charge Air Bypass Valve (3) - Remove
  40. GM5840540Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Inlet Air Tube Bolt (1) - Remove [2x]

  41. Charge Air Bypass Valve Tube Connector Clamp (2) - Loosen
  42. Charge Air Cooler Inlet Pipe (3) - Remove
  43. Charge Air Cooler Inlet Air Tube Seal (4) - Remove and DISCARD
  44. GM5862662Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Disconnect the electrical connector.

  45. Charge Air Cooler Bolt (1) - Remove [2x]
  46. Charge Air Cooler Cover Bolt (2) - Remove [12x]
  47. GM5862663Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Charge Air Cooler Cover (1) - Remove

  48. Intake Manifold Gasket (2) - Remove and DISCARD
  49. Charge Air Cooler Cover Seal (3) - Remove and DISCARD [2x]
  50. GM5862841Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Positive Crankcase Ventilation Tube Connector (1) - Disconnect [2x] - Plastic Collar Quick Connect Fitting Service

  51. Positive Crankcase Ventilation Foul Air Tube (2) - Remove
  52. GM4044046Courtesy of GENERAL MOTORS COMPANY

    Engine Rear Noise Shield Bolt (1) - Remove

  53. GM5325063Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper Arm (3) - Remove [2x]

    1. Using the appropriate trim tool, remove the windshield wiper arm finish cap (1) from the windshield wiper arm (3).
    2. Windshield Wiper Arm Nut (2) - Remove
    3. Grasp the outer end of the windshield wiper arm (3) and gently rock the arm back and forth to remove it from the windshield wiper transmission pivot shaft.
  54. GM5417116Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel Extension (1) - Remove [2x]

    1. Apply two layers of masking tape around the top edge of the service part to prevent paint damage.
    2. Using a suitable plastic trim tool, carefully release the air inlet grille panel extension clips.
    3. Remove the air inlet grille panel extension (1) from the air inlet grille panel and upper front fender.
  55. GM5862927Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Side Sight Shield Retainer (1) - Remove [3x]

  56. Front Compartment Side Sight Shield (2) - Remove
  57. GM5421986Courtesy of GENERAL MOTORS COMPANY

    Remove the 2 hood rear outer air inlet seal retainer (1) from the left and right side.

  58. Remove the hood rear outer air inlet seal (2) from the left and right side.
  59. GM5865291Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel Retainer (1) - Remove [2x]

  60. Air Inlet Grille Panel Extension (2) - Remove
  61. GM5417442Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel Retainer (1) - Remove [6x]

  62. Air Inlet Grille Panel (2) - Remove
    1. Disconnect the windshield washer nozzle hose from the windshield washer pump hose.
    2. Lift the front edge of the air inlet grille panel (2) and slide the panel forward from both hood hinges to remove.
  63. GM5420286Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper System Module Shield (1) - Remove

  64. NOTE:

    To prevent erroneous DTC's, disconnect the battery negative cable before disconnecting the windshield wiper motor electrical connector.

  65. Disconnect the battery negative cable. - Battery Negative Cable Disconnection and Connection
  66. GM5420344Courtesy of GENERAL MOTORS COMPANY

    Disconnect the windshield wiper motor electrical connector.

  67. Windshield Wiper System Module Bolt (1) - Remove [2x]
  68. Slide the windshield wiper system module (2) inboard to release the grommet from the plenum and remove the windshield wiper system module (2) from the vehicle.
  69. GM5499581Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Deflector Water Deflector Retainer (1) - Remove [2x]

  70. GM5499583Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Deflector Water Deflector (1) - Remove

  71. GM5422039Courtesy of GENERAL MOTORS COMPANY

    Plenum Front Panel Nut (1) - Remove [3x]

  72. Plenum Front Panel Bolt (2) - Remove [3x]
  73. Disconnect the electrical connector.
  74. Pull the forward lamp wiring harness (3) out from the plenum front panel.
  75. GM5865879Courtesy of GENERAL MOTORS COMPANY

    Plenum Front Panel Bolt (1) - Remove [4x]

  76. Plenum Front Panel Nut (2) - Remove [3x]
  77. GM5865881Courtesy of GENERAL MOTORS COMPANY

    Plenum Front Panel (1) - Remove

  78. GM5524604Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    This is a push nut.

    Plenum Panel Nut (1) - Remove [9x]

  79. Dash Panel Outer Upper Insulator (2) - Remove
  80. Plenum Front Panel (3) - Remove
  81. GM5869276Courtesy of GENERAL MOTORS COMPANY

    Engine Rear Noise Shield Bolt (1) - Remove [2x]

  82. Retainer (2) - Unclip [3x]
  83. Wiring Harness (3) - Reposition
  84. GM4044075Courtesy of GENERAL MOTORS COMPANY

    Fuel Pipe Shield (1) - Remove

  85. GM5864681Courtesy of GENERAL MOTORS COMPANY

    Disconnect all electrical connectors.

  86. Lower Intake Manifold Bolt (1) - Remove [6x]
  87. GM5864683Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold (1) - Remove

  88. Lower Intake Manifold Gasket (2) - Remove and DISCARD [6x]
  89. GM5870393Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.

    Fuel Injection Fuel Rail Noise Shield (1) - Remove

  90. GM5869727Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.

    Engine Rear Noise Shield (1) - Remove

  91. GM5869742Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fuel feed intermediate pipes will be delivered with shipping caps that are meant to protect the mating joint threads. Do NOT remove shipping caps until the pipe is to be installed and joints are to be secured. Failure to do so could result in damage to the mating threads.

    NOTE:

    Do NOT reuse the fuel feed intermediate pipe. If the fuel feed intermediate pipe fittings are loosened or the pipes are removed, the pipes MUST be replaced.

    Fuel Feed Intermediate Pipe Nut (1) @ Fuel Feed Intermediate Pipe (2) - Loosen until disengaged [3x]

  92. Fuel Feed Intermediate Pipe (2) - Remove and DISCARD
  93. GM5876881Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The fuel injection fuel rail bolts are retained in the fuel rail by keepers and may be difficult to remove.

    Fuel Injection Fuel Rail Bolt (1) - Remove [4x]

  94. Disconnect the fuel injection fuel rail electrical connectors and remove the 2 retainers from the fuel feed pipe bracket.
  95. GM5876237Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The fuel injection fuel rail bank 1 bolts must be removed for clearance purposes.

    Fuel Injection Fuel Rail Bolt (1) - Remove [4x]

  96. GM5877173Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • In some cases, the fuel injectors may be difficult to remove because of heavy carbon build-up or other factors. DO NOT use excessive force with the removal tool. If injectors are difficult to remove, apply solvent to the base of the injector bores, and allow adequate soaking time, to loosen the fuel injectors.
    • Pull the fuel rail and injectors as an assembly.
    • To prevent material from entering the combustions chambers make sure the area around each injector is clean and free of debris before the injectors are removed from the injector bores.

    Install 2 sets of the EN-49248  Injector Rail Assembly Remover (1).

  97. Use the EN-49248 - 4  Hooks (1) to slowly work the fuel injection fuel rail (2) upwards in small, even increments.
  98. Once the fuel injection fuel rail (2) is free, remove the EN-49248  Injector Rail Assembly Remover components (1).
  99. GM5877180Courtesy of GENERAL MOTORS COMPANY
    CAUTION:
    • Remove the fuel rail assembly carefully in order to prevent damage to the injector electrical connector terminals and the injector spray tips. Support the fuel rail after the fuel rail is removed in order to avoid damaging the fuel rail components.
    • Cap the fittings and plug the holes when servicing the fuel system in order to prevent dirt and other contaminants from entering open pipes and passages.

    Simultaneously lift both ends of the fuel injection fuel rail (1) and remove the fuel rail assembly from the cylinder head.

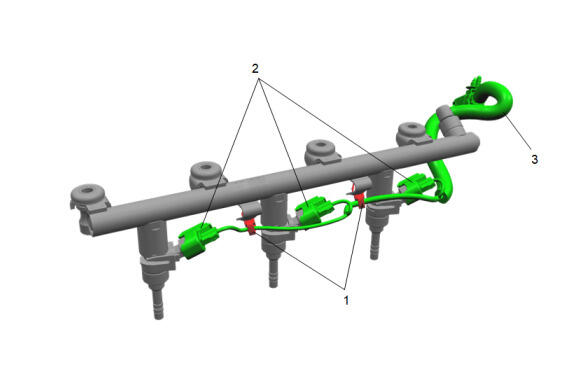

  100. GM5877184Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (1) - Disengage [2x]

  101. Disconnect the 3 fuel injection fuel rail electrical connectors (2).
  102. Fuel Injection Fuel Rail Wiring Harness (3) - Remove
  103. GM5877013Courtesy of GENERAL MOTORS COMPANY

    Remove and DISCARD the fuel injector retainer (1) from the fuel injector (2).

  104. Remove the fuel injector (2) from the fuel rail.
  105. Fuel Injection Fuel Rail Seal (3) - Remove and DISCARD
  106. GM5877028Courtesy of GENERAL MOTORS COMPANY

    Remove and DISCARD the fuel injector nozzle housing seals (1) from the injectors that remain in the fuel rail.
