Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Oil Filler Cap - Remove
Courtesy of GENERAL MOTORS COMPANY

Intake Manifold Cover Bolt (1) - Remove
Intake Manifold Cover (2) - Remove
Install the oil filler cap after removal of the intake manifold cover to prevent debris from falling into the engine.
Courtesy of GENERAL MOTORS COMPANY

Evaporative Emission Canister Purge Tube (1) @ Evaporative Emission Pipe (2) - Disconnect - Plastic Collar Quick Connect Fitting Service
Evaporative Emission Pipe (2) @ Retainer (3) - Disengage
Raise and support the vehicle. Lifting and Jacking the Vehicle
Courtesy of GENERAL MOTORS COMPANY

Rear Tire Front Air Deflector Bolt- Left Side and Right Side (1) - Remove [4x]
Rear Tire Front Air Deflector- Left Side and Right Side (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Rear Wheelhouse Liner Bolt- Left Side (1) - Remove
Underbody Rear Air Deflector Nut- Left Side (2) - Remove [3x]
Underbody Rear Air Deflector Bolt- Left Side (3) - Remove [3x]
Underbody Rear Air Deflector Nut- Left Side (4) - Remove [2x]
Underbody Rear Air Deflector- Left Side (5) - Remove
Courtesy of GENERAL MOTORS COMPANY

Rear Wheelhouse Liner Bolt- Right Side (1) - Remove
Underbody Rear Air Deflector Bolt- Right Side (2) - Remove [3x]
Underbody Rear Air Deflector Nut- Right Side (3) - Remove [3x]
Underbody Rear Air Deflector Nut- Right Side (4) - Remove [2x]
Underbody Rear Air Deflector- Right Side (5) - Remove
Courtesy of GENERAL MOTORS COMPANY

Underbody Front Air Deflector Bolt- Right Side (1) - Remove [6x]
Underbody Rear Air Deflector Nut- Right Side (2) - Remove [5x]
Transmission Fluid Cooler Pipe Bracket Bolt- Right Side (3) - Remove [2x]
Underbody Rear Air Deflector- Right Side (5) - Remove
Courtesy of GENERAL MOTORS COMPANY

Underbody Front Air Deflector Bolt- Left Side (1) - Remove [6x]
Underbody Rear Air Deflector Nut- Left Side (2) - Remove [5x]
Transmission Fluid Cooler Pipe Bracket Bolt- Left Side (3) - Remove [2x]
Underbody Rear Air Deflector- Left Side (5) - Remove
Courtesy of GENERAL MOTORS COMPANY

Floor Panel Number 4 Cross Bar Reinforcement Bolt (1) - Remove [6x]
Floor Panel Reinforcement (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Catalytic Converter Nut (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Exhaust Pipe Clamp (1) - Loosen [2x]
Courtesy of GENERAL MOTORS COMPANY

Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator-Left Side (2) - Separate [2x]
Courtesy of GENERAL MOTORS COMPANY

Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator-Right Side (2) - Separate [2x]
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The rear bumper fascia is removed for illustration purposes only.

Exhaust Muffler Hanger Bracket Nut (1) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

With the aid of an assistant, remove the exhaust muffler (1).
Catalytic Converter Gasket (2) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

Exhaust Heat Shield Nut- Right Side (1) - Remove [3x]
Transmission Fluid Cooler Pipe Clamp Bolt- Right Side (2) - Remove
Exhaust Heat Shield Bolt- Right Side (3) - Remove
Exhaust Front Underbody Heat Shield- Right Side (4) - Remove
Courtesy of GENERAL MOTORS COMPANY

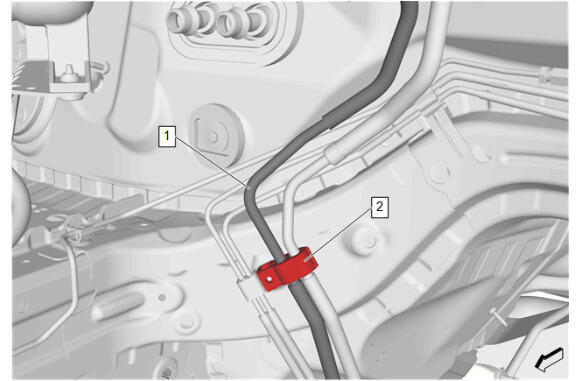

Evaporative Emission Pipe (1) @ Retainer (2) - Disengage
Courtesy of GENERAL MOTORS COMPANY

Evaporative Emission Pipe (1) @ Retainer (2) - Disengage [6x]
Courtesy of GENERAL MOTORS COMPANY

Fuel Tank Vent Valve Hose (1) @ Evaporative Emission Pipe (2) - Disconnect - Plastic Collar Quick Connect Fitting Service
Evaporative Emission Pipe (2) @ Retainer (3) - Disengage [2x]
Evaporative Emission Pipe (2) - Remove
