Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

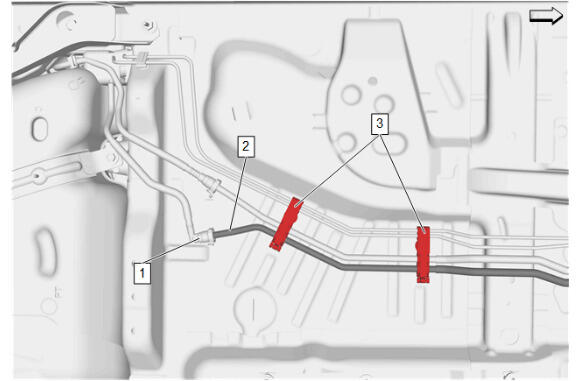

  1. GM5867528Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Pipe (2) - Install

  2. Evaporative Emission Pipe (2) @ Retainer (3) - Engage [2x]
  3. Fuel Tank Vent Valve Hose (1) @ Fuel Feed Pipe (2) - Connect - Plastic Collar Quick Connect Fitting Service

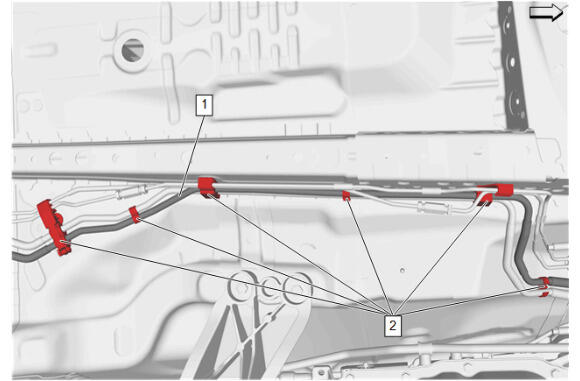

  4. GM5867526Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Pipe (1) @ Retainer (2) - Engage [6x]

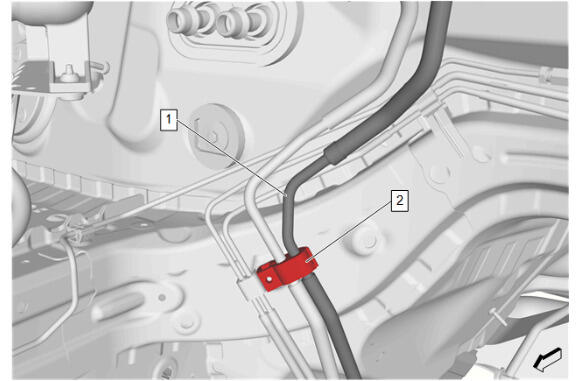

  5. GM5867530Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Pipe (1) @ Retainer (2) - Engage

  6. GM5865455Courtesy of GENERAL MOTORS COMPANY

    Exhaust Front Underbody Heat Shield- Right Side (4) - Install

    7. CAUTION:

    Refer to Fastener Caution .

  7. Exhaust Heat Shield Bolt- Right Side (3) - Install and tighten - Fastener Specifications
  8. Transmission Fluid Cooler Pipe Clamp Bolt- Right Side (2) - Install and tighten - Fastener Specifications
  9. Exhaust Heat Shield Nut- Right Side (1) - Install and tighten [3x] - Fastener Specifications
  10. GM5865329Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Gasket (2) - Install NEW

  11. With the aid of an assistant, install the exhaust muffler (1).
  12. GM5865300Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler Hanger Bracket Nut (1) - Install and tighten [4x] - Fastener Specifications

  13. GM5865293Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

  14. GM5865287Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

  15. GM5406632Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator-Right Side (2) - Install [2x]

  16. GM5406578Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator-Left Side (2) - Install [2x]

  17. GM5865271Courtesy of GENERAL MOTORS COMPANY

    Exhaust Pipe Clamp (1) - Tighten [2x] - Fastener Specifications

  18. GM5865265Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Nut (1) - Install and tighten [2x] - Fastener Specifications

  19. GM5400756Courtesy of GENERAL MOTORS COMPANY

    Floor Panel Reinforcement (2) - Install

  20. Floor Panel Number 4 Cross Bar Reinforcement Bolt (1) - Install and tighten [6x] - Fastener Specifications
  21. GM5854893Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Deflector- Left Side (5) - Install

  22. Transmission Fluid Cooler Pipe Bracket Bolt- Left Side (3) - Install and tighten [2x] - Fastener Specifications
  23. Underbody Rear Air Deflector Nut- Left Side (2) - Install and tighten [5x] - Fastener Specifications
  24. Underbody Front Air Deflector Bolt- Left Side (1) - Install and tighten [6x] - Fastener Specifications
  25. GM5839256Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Deflector- Right Side (5) - Install

  26. Transmission Fluid Cooler Pipe Bracket Bolt- Right Side (3) - Install and tighten [2x] - Fastener Specifications
  27. Underbody Rear Air Deflector Nut- Right Side (2) - Install and tighten [5x] - Fastener Specifications
  28. Underbody Front Air Deflector Bolt- Right Side (1) - Install and tighten [6x] - Fastener Specifications
  29. GM5400642Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Deflector- Right Side (5) - Install

  30. Underbody Rear Air Deflector Nut- Right Side (3) - Install and tighten [3x] - Fastener Specifications
  31. Underbody Rear Air Deflector Bolt- Right Side (2) - Install and tighten [3x] - Fastener Specifications
  32. Underbody Rear Air Deflector Nut- Right Side (4) - Install and tighten [2x] - Fastener Specifications
  33. Rear Wheelhouse Liner Bolt- Right Side (1) - Install and tighten - Fastener Specifications
  34. GM5400553Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Deflector- Left Side (5) - Install

  35. Underbody Rear Air Deflector Nut- Left Side (2) - Install and tighten [3x] - Fastener Specifications
  36. Underbody Rear Air Deflector Bolt- Left Side (3) - Install and tighten [3x] - Fastener Specifications
  37. Underbody Rear Air Deflector Nut- Left Side (4) - Install and tighten [2x] - Fastener Specifications
  38. Rear Wheelhouse Liner Bolt- Left Side (1) - Install and tighten - Fastener Specifications
  39. GM5395705Courtesy of GENERAL MOTORS COMPANY

    Rear Tire Front Air Deflector- Left Side and Right Side (2) - Install [2x]

  40. Rear Tire Front Air Deflector Bolt- Left Side and Right Side (1) - Install and tighten [4x] - Fastener Specifications
  41. Lower the vehicle.

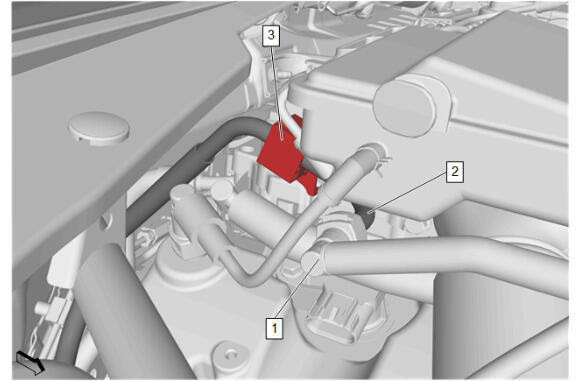

  42. GM5867524Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Pipe (2) @ Retainer (3) - Engage

  43. Evaporative Emission Canister Purge Tube (1) @ Evaporative Emission Pipe (2) - Connect - Plastic Collar Quick Connect Fitting Service
  44. GM5839283Courtesy of GENERAL MOTORS COMPANY

    Oil Filler Cap - Remove

  45. Intake Manifold Cover (2) - Install
  46. Intake Manifold Cover Bolt (1) - Install and tighten - Fastener Specifications
  47. Oil Filler Cap - Install
  48. Inspect the exhaust system for leaks.
