Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

NOTE:

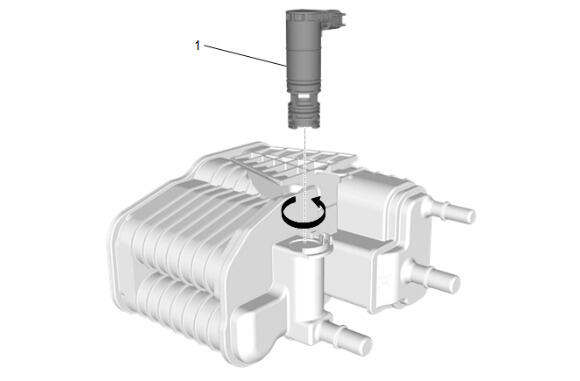

Turn the solenoid counter clockwise to install.

Evaporative Emission Canister Vent Solenoid Valve (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Evaporative Emission Canister (1) - Install
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Evaporative Emission Canister Purge Hose (3) - Connect - Plastic Collar Quick Connect Fitting Service
Fuel Tank Vent Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service
Evaporative Emission Canister Air Inlet Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service
Rear Wheelhouse Liner-Right Side - Install - Rear Wheelhouse Liner Replacement
