Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

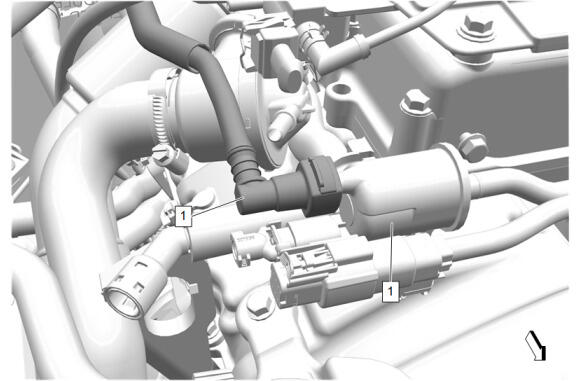

Evaporative Emission Canister Purge Solenoid Valve (2) - Install

CAUTION:

Refer to Fastener Caution .

Evaporative Emission Canister Purge Solenoid Valve Bracket Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

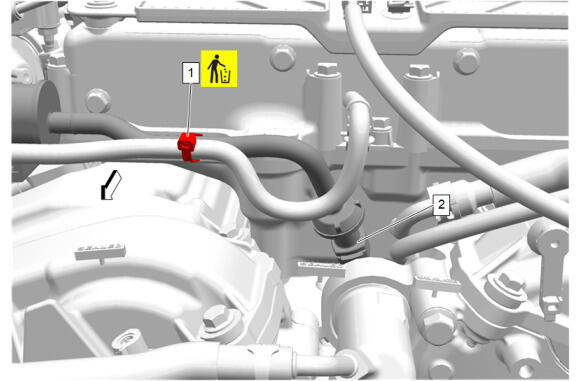

Evaporative Emission Canister Purge Tube (2) - Connect - Plastic Collar Quick Connect Fitting Service
Tie Strap (1) - Install NEW
Courtesy of GENERAL MOTORS COMPANY

Evaporative Emission Canister Purge Tube (1) @ Evaporative Emission Canister Purge Solenoid Valve - (2) Connect - Plastic Collar Quick Connect Fitting Service
Courtesy of GENERAL MOTORS COMPANY

Charge Air Cooler Coolant Pipe Seal (3) - Install NEW [4x]
Supercharger Water Manifold Gasket (2) - Install NEW [2x]
Supercharger Water Manifold (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Charge Air Cooler Coolant Manifold Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Charge Air Cooler Coolant Hose (4) - Install
Charge Air Cooler Coolant Hose Clamp (3) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Charge Air Cooler Coolant Hose (2) - Install
Charge Air Cooler Coolant Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

Turbocharger Wastegate Actuator Vacuum Tank Solenoid Valve Tube (4) - Install
Turbocharger Wastegate Actuator Vacuum Tank Solenoid Valve Tube (3) @ Auxiliary Air Cleaner Outlet Duct - Connect - Plastic Collar Quick Connect Fitting Service
Retainer (2) - Engage
Engage the 2 turbocharger wastegate actuator vacuum tank solenoid valve tube clamps (1).
Courtesy of GENERAL MOTORS COMPANY

Engine Wiring Harness Retainer (2) - Connect [2x]
Connect the turbocharger wastegate regulator solenoid valve electrical connector (1).
Courtesy of GENERAL MOTORS COMPANY

Oil Filler Cap - Remove
Intake Manifold Cover (2) - Install
Intake Manifold Cover Bolt (1) - Install and tighten - Fastener Specifications
Oil Filler Cap - Install
Fill the charge air cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LSY with V03 Static Fill) , or Cooling System Draining and Filling (L3B Static Fill) , or Cooling System Draining and Filling (L3B GE 47716) , or Cooling System Draining and Filling (LSY with V03 GE 47716) , or Cooling System Draining and Filling (LF4 Static Fill) , or Cooling System Draining and Filling (LF4 GE 47716)
