Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

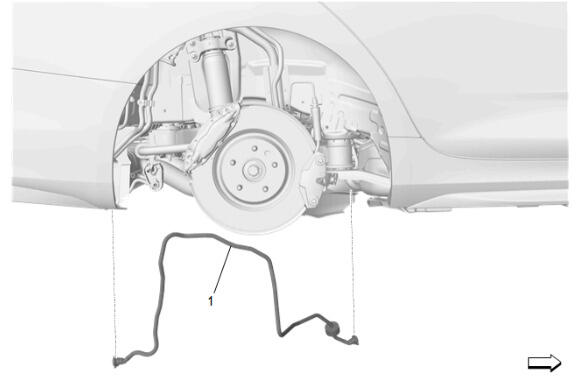

- Rear Wheelhouse Liner-Right Side - Remove - Rear Wheelhouse Liner Replacement

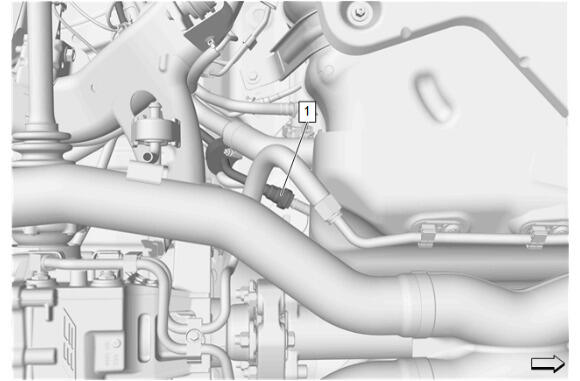

Evaporative Emission Canister Purge Hose (1) - Disconnect - Plastic Collar Quick Connect Fitting Service

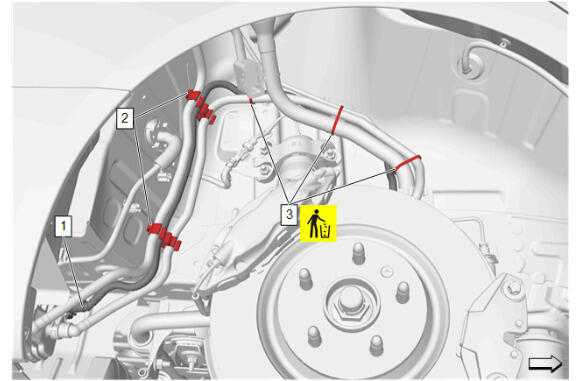

- Evaporative Emission Canister Purge Hose (1) @ Retainer (2) - Remove [2x]
- Evaporative Emission Canister Filter Hose Strap (3) - Remove and DISCARD [3x]

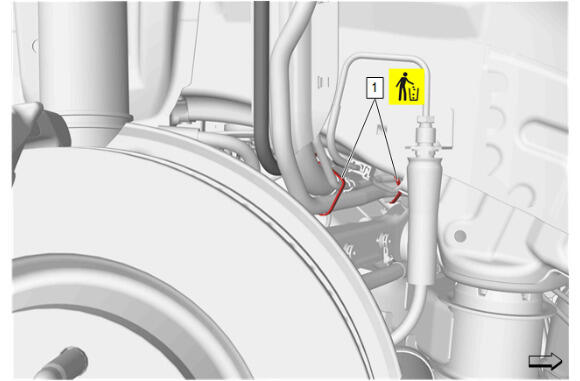

Evaporative Emission Canister Filter Hose Strap (1) - Remove and DISCARD [2x]
Evaporative Emission Canister Purge Hose (1) - Disconnect - Plastic Collar Quick Connect Fitting Service
Evaporative Emission Canister Purge Hose (1) - Remove
