Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

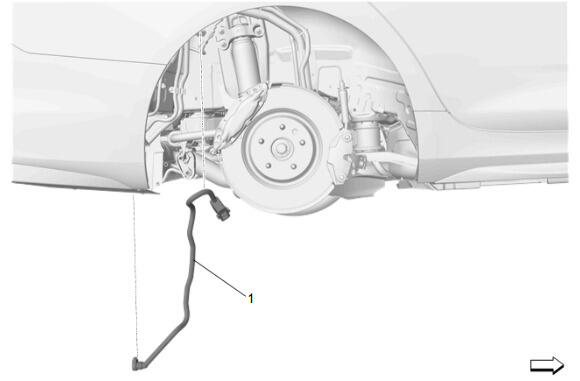

  1. GM5839426Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Air Inlet Hose (1) - Install

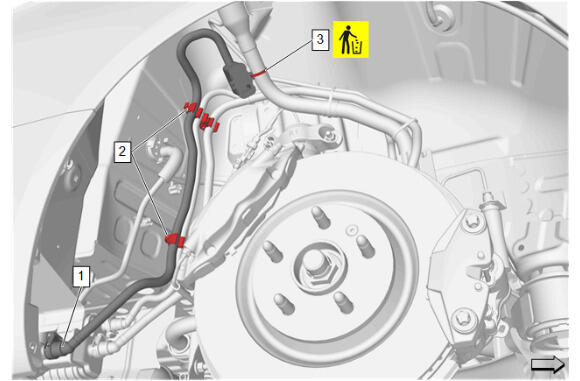

  2. GM5839425Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Filter Hose Strap (3) - Install NEW

  3. Evaporative Emission Canister Air Inlet Hose (1) @ Retainer (2) - Install [2x]
  4. Evaporative Emission Canister Air Inlet Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service
  5. Rear Wheelhouse Liner-Right Side - Install - Rear Wheelhouse Liner Replacement
