Oil Pressure Diagnosis and Testing: Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

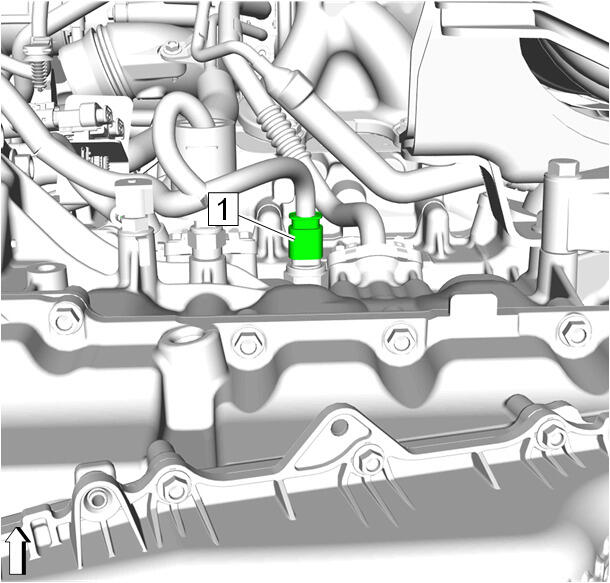

  1. GM5130457Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector. (1)

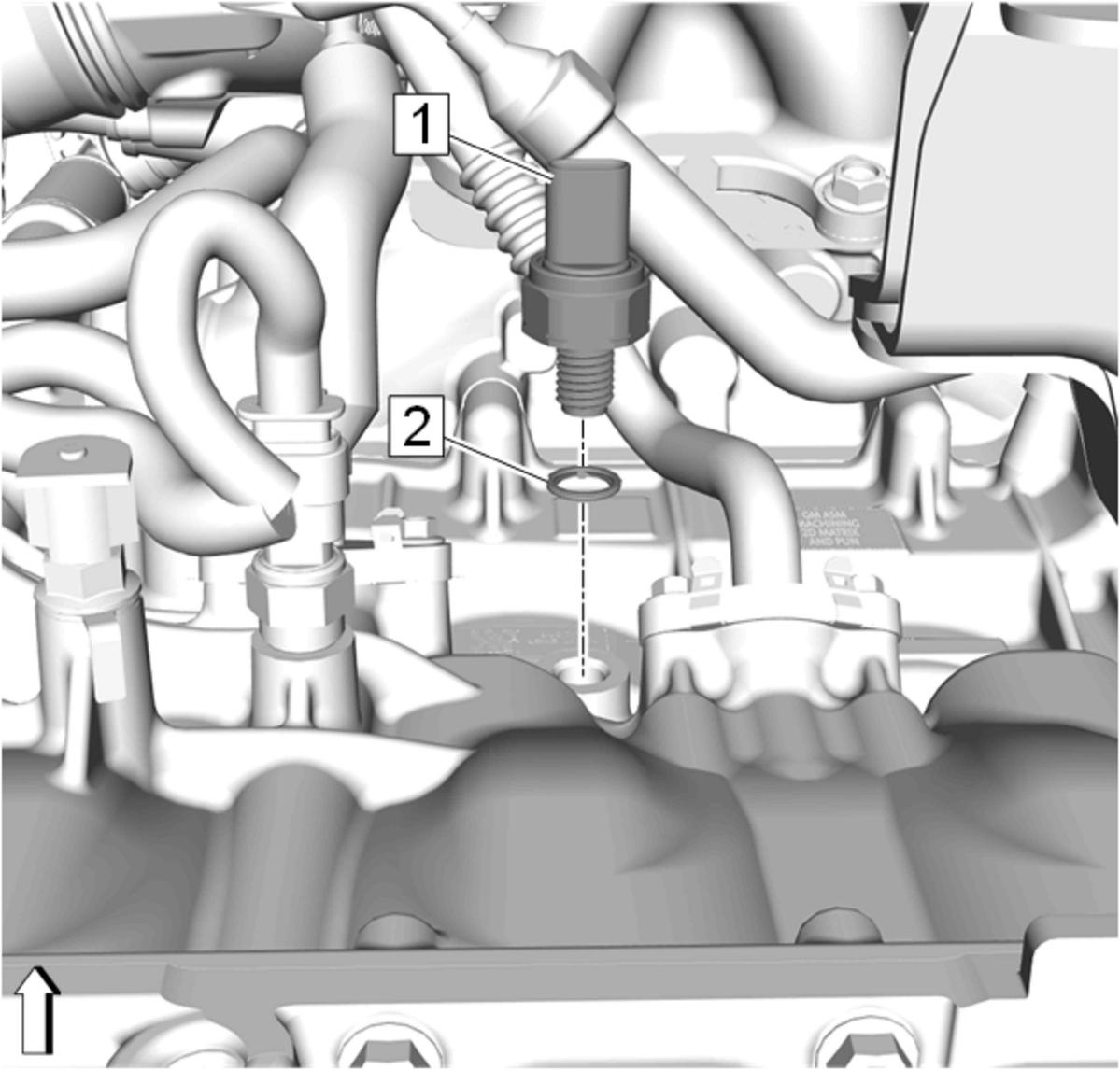

  2. GM5130460Courtesy of GENERAL MOTORS COMPANY

    Engine Oil Pressure Sensor (1) - Remove

  3. Engine Oil Pressure Sensor Seal (2) - Remove and DISCARD

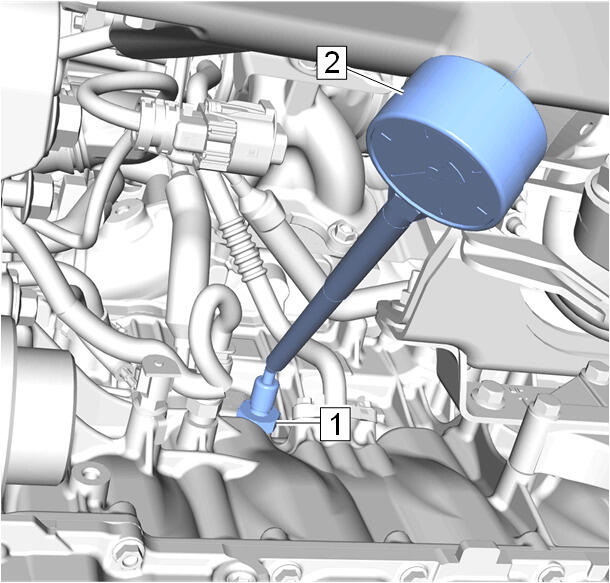

  4. GM5130461Courtesy of GENERAL MOTORS COMPANY

    Install the EN-6106  Oil Pressure Gauge Adapter (1).

  5. Install the KM-498 - B  Oil Pressure Gauge (2).
  6. Start the engine.
  7. Check the engine oil pressure.
    1. If measured at the oil pressure sensor, the engine at 1500 RPM, the oil pressure is 125 - 185 kPa (18.13 - 26.83 psi) and the oil temperature must be 20°C (68°F) or more.
    2. If measure at the oil filter, Install the CH-48207  Kit and EN-52486  Oil Filter Adapter the oil pressure is 135 - 195 kPa (19.58 - 28.28 psi) and the oil temperature must be 20°C (68°F) or more.
  8. Remove the KM-498 - B  Oil Pressure Gauge (2).
  9. Remove the EN-6106  Oil Pressure Gauge Adapter (1).
  10. Turn off the engine.
  11. GM5130460Courtesy of GENERAL MOTORS COMPANY

    Engine Oil Pressure Sensor Seal (2) - Install NEW

    12. CAUTION:

    Refer to Component Fastener Tightening Caution .

  12. Engine Oil Pressure Sensor (1) - Install and tighten 35 N.m (26 lb ft)
  13. Check the engine oil level.
