Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Disconnect the hood primary latch release cable end retainer from the hood primary latch release cable handle (1).
Instrument Panel Lower Trim Panel Insulator Retainer (1) - Remove
- Instrument Panel Insulator Bolt (2) - Remove [2x]
- Instrument Panel Insulator Nut (3) - Remove [2x]
- NOTE:
Use a plastic trim tool if necessary.
Release the tabs from the instrument panel lower trim panel insulator (1).
Instrument Panel Lower Trim Panel Insulator (1) - Remove

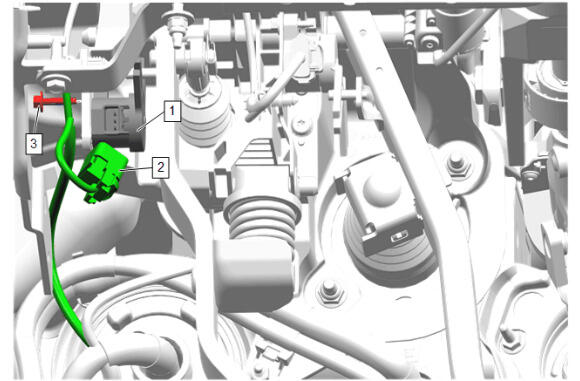

- Disconnect the electrical connector.
Disconnect the electrical connector. (2)
- Clutch Pedal Position Sensor Bolt (3) - Remove
- Clutch Pedal Position Sensor (1) - Remove
