Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

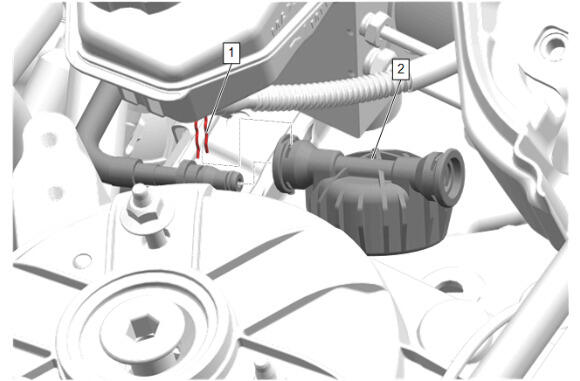

  1. GM5877960Courtesy of GENERAL MOTORS COMPANY

    Install the clutch master cylinder pipe adapter (2) to the clutch actuator cylinder pipe.

  2. Install the clutch master cylinder pipe retaining clip (1) to the clutch master cylinder.

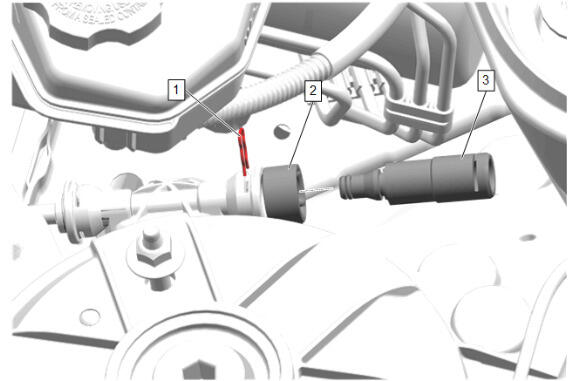

  3. GM5877959Courtesy of GENERAL MOTORS COMPANY

    Install clutch master cylinder pipe bracket (2).

  4. Install the clutch master cylinder pipe adapter (3) to the clutch master cylinder pipe bracket (2).
  5. Install the clutch master cylinder pipe retaining clip (1) to the clutch master cylinder.

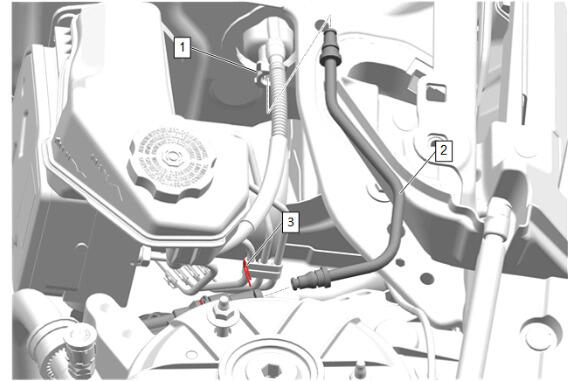

  6. GM5877958Courtesy of GENERAL MOTORS COMPANY

    Install the clutch master cylinder pipe (2) to the dampener (1).

  7. Install the clutch master cylinder pipe retaining clip (3) to the clutch master cylinder pipe adapter.
  8. GM5865881Courtesy of GENERAL MOTORS COMPANY

    Plenum Front Panel (1) - Install

  9. GM5865879Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Plenum Front Panel Bolt (1) - Install and tighten [4x] - Fastener Specifications

  10. Plenum Front Panel Nut (2) - Install and tighten [3x] - Fastener Specifications
  11. GM5422039Courtesy of GENERAL MOTORS COMPANY

    Plenum Front Panel Nut (1) - Install and tighten [3x] - Fastener Specifications

  12. Plenum Front Panel Bolt (2) - Install and tighten [3x] - Fastener Specifications
  13. Install the forward lamp wiring harness extension (3) into the plenum front panel.
  14. Connect the electrical connector.
  15. GM5499583Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Deflector Water Deflector (1) - Install

  16. GM5499581Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Deflector Water Deflector Retainer (1) - Install [2x]

  17. GM5420344Courtesy of GENERAL MOTORS COMPANY

    Install the windshield wiper system module (2) in the vehicle.

  18. Windshield Wiper System Module Bolt (1) - Install and tighten [2x] - Fastener Specifications
  19. Connect the windshield wiper motor electrical connector.
  20. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  21. GM5420286Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper System Module Shield (1) - Install

  22. GM5417442Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel (2) - Install

  23. Install the air inlet grille panel (2) between both hood hinges.
  24. Connect the windshield washer nozzle hose to the windshield washer pump hose.
  25. Air Inlet Grille Panel Retainer (1) - Install [6x]
  26. GM5862927Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front Compartment Side Sight Shield- Left Side and Right Side (2) - Install [2x]

  27. Front Compartment Side Sight Shield Retainer- Left Side and Right Side (1) - Install [6x]
  28. GM5865291Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Air Inlet Grille Panel Extension- Left Side and Right Side (2) - Install [2x]

  29. Air Inlet Grille Panel Retainer- Left Side and Right Side (1) - Install [4x]
  30. GM5421986Courtesy of GENERAL MOTORS COMPANY

    Install the 2 hood rear outer air inlet seal (2) to the left and right side.

  31. Install the 4 hood rear outer air inlet seal retainer (1) to the left and right side.
  32. GM5417116Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Air Inlet Grille Panel Extension- Left Side and Right Side (1) - Install [2x]

  33. Remove the masking tape from the top edge of the left and right side service parts.
  34. Using a 50/50 mixture of isopropyl alcohol and clean drinkable water with a clean towel, remove any left over adhesive residue from the masking tape.
  35. GM5325063Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Clean the left and right side windshield wiper transmission pivot shaft splines with a soft wire brush before installing the windshield wiper arm (3).

  36. Position the left and right side windshield wiper arm (3) on the windshield wiper transmission pivot shaft.
  37. Windshield Wiper Arm- Left Side and Right Side (3) - Install [2x]
  38. Windshield Wiper Arm Nut- Left Side and Right Side (2) - Install and tighten [2x] - Fastener Specifications
  39. Windshield Wiper Arm Finish Cap- Left Side and Right Side (1) - Install [2x]
  40. GM5416557Courtesy of GENERAL MOTORS COMPANY

    If required, realign the left side and right side windshield wipers to their respective alignment circles (1) on the windshield.

  41. Lubricate the windshield with clean washer fluid.
  42. Run the windshield wipers for two complete cycles then turn off the windshield wipers.
  43. Ensure the windshield wipers are in the full park position.
  44. Inspect the windshield wipers for proper position to the alignment circles (1) on the windshield.
