Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the clutch actuator cylinder pipe in the vehicle.

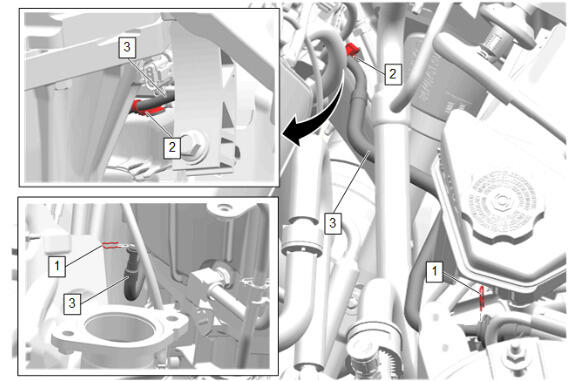

  2. GM5877956Courtesy of GENERAL MOTORS COMPANY

    Remove the cap or plug from the exposed hose and clutch master cylinder fittings.

  3. Connect the clutch actuator cylinder pipe (3) to the clutch master cylinder pipe.
  4. Install the clutch actuator cylinder pipe retaining clip (1) to the clutch master cylinder pipe.
  5. Connect the clutch actuator cylinder pipe (3) to the transmission.
  6. Install the clutch actuator cylinder pipe retaining clip (1) to the transmission.
  7. Install NEW zip ties (2) that hold the clutch master cylinder pipe (3) in place.
  8. GM5873937Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Exhaust Pipe Gasket (2) - Install NEW

  9. Warm Up Three-Way Catalytic Converter (1) - Install
  10. GM5873921Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Catalytic Converter Nut (1) - Install and tighten [4x] - Fastener Specifications

  11. GM5786730Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    A special anti-seize compound is used in the HO2S threads. The compound consists of liquid graphite and glass beads. The graphite tends to burn away, but the glass beads remain, making the sensor easier to remove. New, or service replacement sensors already have the compound applied to the threads. If the sensor is removed from an exhaust component and if for any reason the sensor is to be reinstalled, the threads must have anti-seize compound applied before reinstallation. Adhesives, Fluids, Lubricants, and Sealers

    CAUTION:

    Refer to Component Fastener Tightening Caution .

    Using a suitable tool, install and tighten the heated oxygen sensor (1). Fastener Specifications

  12. Connect the heated oxygen sensor electrical connector.
  13. GM5873893Courtesy of GENERAL MOTORS COMPANY

    Using a suitable tool, install and tighten the heated oxygen sensor (1). Fastener Specifications

  14. Connect the heated oxygen sensor electrical connector.
  15. GM5872016Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Brace (3) - Install

  16. Catalytic Converter Brace Bracket Nut (1) - Install and tighten [5x] - Fastener Specifications
  17. GM5865329Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Gasket (2) - Install NEW

  18. With the aid of an assistant, install the exhaust muffler (1).
  19. GM5865300Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler Hanger Bracket Nut (1) - Install and tighten [4x] - Fastener Specifications

  20. GM5865293Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

  21. GM5865287Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

  22. GM5406632Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator- Right Side (2) - Install [2x]

  23. GM5406578Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator- Left Side (2) - Install [2x]

  24. GM5865271Courtesy of GENERAL MOTORS COMPANY

    Exhaust Pipe Clamp (1) - Tighten [2x] - Fastener Specifications

  25. GM5865265Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Nut (1) - Install and tighten [2x] - Fastener Specifications

  26. GM5400756Courtesy of GENERAL MOTORS COMPANY

    Floor Panel Reinforcement (2) - Install

  27. Floor Panel Number 4 Cross Bar Reinforcement Bolt (1) - Install and tighten [6x] - Fastener Specifications
  28. GM5400642Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Deflector- Right Side (5) - Install

  29. Underbody Rear Air Deflector Nut- Right Side (3) - Install and tighten [3x] - Fastener Specifications
  30. Underbody Rear Air Deflector Bolt- Right Side (2) - Install and tighten [3x] - Fastener Specifications
  31. Underbody Rear Air Deflector Nut- Right Side (4) - Install and tighten [2x] - Fastener Specifications
  32. Rear Wheelhouse Liner Bolt- Right Side (1) - Install and tighten - Fastener Specifications
  33. GM5400553Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Deflector- Left Side (5) - Install

  34. Underbody Rear Air Deflector Nut- Left Side (2) - Install and tighten [3x] - Fastener Specifications
  35. Underbody Rear Air Deflector Bolt- Left Side (3) - Install and tighten [3x] - Fastener Specifications
  36. Underbody Rear Air Deflector Nut- Left Side (4) - Install and tighten [2x] - Fastener Specifications
  37. Rear Wheelhouse Liner Bolt- Left Side (1) - Install and tighten - Fastener Specifications
  38. GM5395705Courtesy of GENERAL MOTORS COMPANY

    Rear Tire Front Air Deflector- Left Side and Right Side (2) - Install [2x]

  39. Rear Tire Front Air Deflector Bolt- Left Side and Right Side (1) - Install and tighten [4x] - Fastener Specifications
  40. Lower the vehicle.
  41. GM5876059Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Heat Shield (1) - Install

  42. GM5873866Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Heat Shield Bolt (1) - Install and tighten [3x] - Fastener Specifications

  43. GM5875573Courtesy of GENERAL MOTORS COMPANY

    Radiator Outlet Pipe Seal (2) - Install NEW

  44. Radiator Outlet Pipe (1) - Install
  45. GM5875557Courtesy of GENERAL MOTORS COMPANY

    Radiator Outlet Pipe Bolt (2) - Install and tighten - Fastener Specifications

  46. Radiator Outlet Pipe Bolt (1) - Install and tighten - Fastener Specifications
  47. GM5875536Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (1) - Install [2x]

  48. GM5875715Courtesy of GENERAL MOTORS COMPANY

    Heater Outlet Hose (4) @ Auxiliary Heater Inlet Hose Tee - Install

  49. Heater Outlet Hose Clamp (3) @ Auxiliary Heater Inlet Hose Tee - Engage - Hose Clamp Replacement Guidelines - Spring Type
  50. Heater Inlet Hose (2) @ Heater Core - Install
  51. Heater Inlet Hose Retainer (1) - Engage
  52. GM5875514Courtesy of GENERAL MOTORS COMPANY

    Radiator Outlet Pipe Bolt (1) - Install and tighten - Fastener Specifications

  53. GM5875503Courtesy of GENERAL MOTORS COMPANY

    Radiator Outlet Hose (2) @ Radiator Outlet Pipe - Install

  54. Radiator Outlet Hose Clamp (1) @ Radiator Outlet Pipe - Engage - Hose Clamp Replacement Guidelines - Spring Type
  55. GM5862960Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Assembly (2) - Install

  56. Air Cleaner Bolt (1) - Install and tighten - Fastener Specifications
  57. Install all retainers and wiring harnesses to the air cleaner assembly as necessary.
  58. Connect the 2 mass airflow sensor electrical connectors.
  59. GM5864667Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Air Cleaner Outlet Duct (4) - Install

  60. Air Cleaner Outlet Duct Clamp (3) - Tighten - Fastener Specifications
  61. Air Cleaner Outlet Duct (2) - Install
  62. Air Cleaner Outlet Duct Clamp (1) - Tighten - Fastener Specifications
  63. GM5839407Courtesy of GENERAL MOTORS COMPANY

    Front End Sheet Metal Cross Brace- Left Side and Right Side (3) - Install [2x]

  64. Front Suspension Strut Upper Mounting Nut- Left Side and Right Side (2) - Install and tighten [4x] - Fastener Specifications
  65. Front End Sheet Metal Cross Brace Bolt- Left Side and Right Side (1) - Install and tighten [6x] - Fastener Specifications
  66. Install all wiring harness retainers to the front end sheet metal cross braces.
  67. GM5864524Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle- Upper (3) - Install

  68. Radiator Air Upper Baffle Bolt (2) - Install and tighten [2x] - Fastener Specifications
  69. Radiator Air Upper Baffle Retainer (1) - Install [5x]
  70. GM5839233Courtesy of GENERAL MOTORS COMPANY

    Transmission Control Module (1) @ Engine Control Module Bracket (2) - Install

  71. Engine Control Module Bracket (2) - Install
  72. GM5839232Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module Bracket Bolt (1) - Install and tighten [3x] - Fastener Specifications

  73. GM5839234Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module (1) - Install

  74. Connect the electrical connectors.
  75. GM5861123Courtesy of GENERAL MOTORS COMPANY

    Radiator Surge Tank Outlet Pipe (3) - Install

  76. Radiator Surge Tank Inlet Hose Clamp (4) @ Engine Radiator - Engage - Hose Clamp Replacement Guidelines - Spring Type
  77. Radiator Surge Tank Inlet Hose Clip (2) @ Engine Control Module Bracket - Install
  78. Radiator Surge Tank Inlet Hose Clamp (1) @ Radiator Surge Tank Inlet Hose - Engage - Hose Clamp Replacement Guidelines - Spring Type
  79. Bleed the clutch hydraulic system. Hydraulic Clutch System Bleeding
  80. Fill the cooling system to the proper level. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LSY with V03 Static Fill) , or Cooling System Draining and Filling (L3B Static Fill) , or Cooling System Draining and Filling (L3B GE 47716) , or Cooling System Draining and Filling (LSY with V03 GE 47716) , or Cooling System Draining and Filling (LF4 Static Fill) , or Cooling System Draining and Filling (LF4 GE 47716)
  81. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
  82. Start the engine and check for coolant leaks.
  83. Inspect the exhaust system for leaks.
