Gears Cleaning and Inspection
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- WARNING:
Wear safety glasses to avoid injury when using compressed air or any cleaning solvent. Bodily injury may occur if fumes are inhaled or if skin is exposed to chemicals.
Clean all the parts in a suitable solvent. Air dry all the parts.

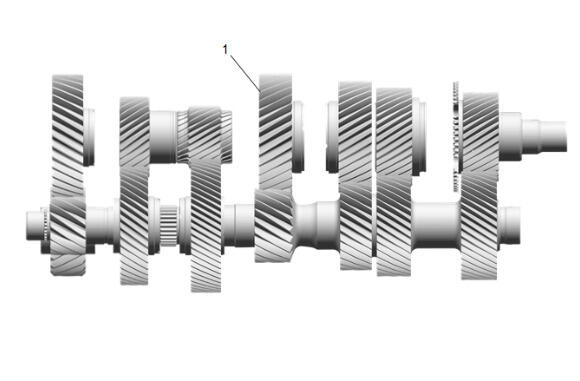

- Inspect the gear tooth surfaces on all the gear sets (1) for the following conditions:
- Cracks
- Pitting
- Nicks
- Chipped gear teeth
- High spots - small shiny spots on the gear teeth mating surfaces
- Inspect for damaged splines on the input shaft, main shaft, and the counter shaft extension.
- Remove nicks and burrs with a soft stone or a crocus cloth.
- Replace a burred or nicked part that cannot be reconditioned by hand.
- Replace gears (1) and gear assemblies that are worn or damaged.
