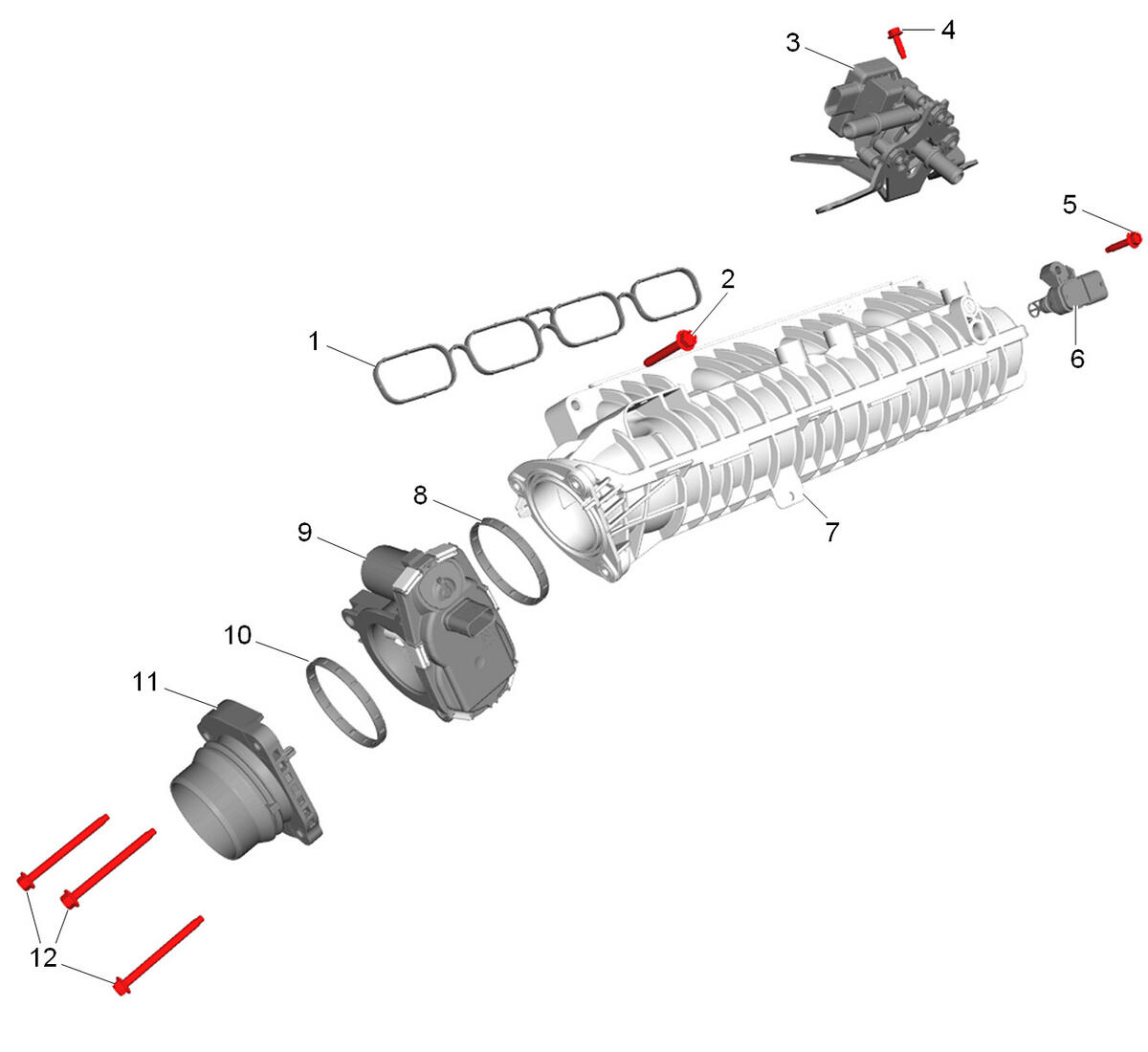

Intake Manifold and Components
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Intake Manifold Gasket |
| 2 | Intake Manifold Bolt [7x] |
| 3 | Evaporative Emission Canister Purge Pump |
| 4 | Evaporative Emission Canister Purge Pump Bolt [3x] |
| 5 | Intake Air Pressure and Temperature Sensor Bolt |
| 6 | Intake Air Pressure and Temperature Sensor |
| 7 | Intake Manifold |
| 8 | Throttle Body Gasket |
| 9 | Throttle Body |
| 10 | Throttle Body Gasket |
| 11 | Throttle Body Adapter |
| 12 | Throttle Body Bolt [3x] |
