Turbocharger and Components
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

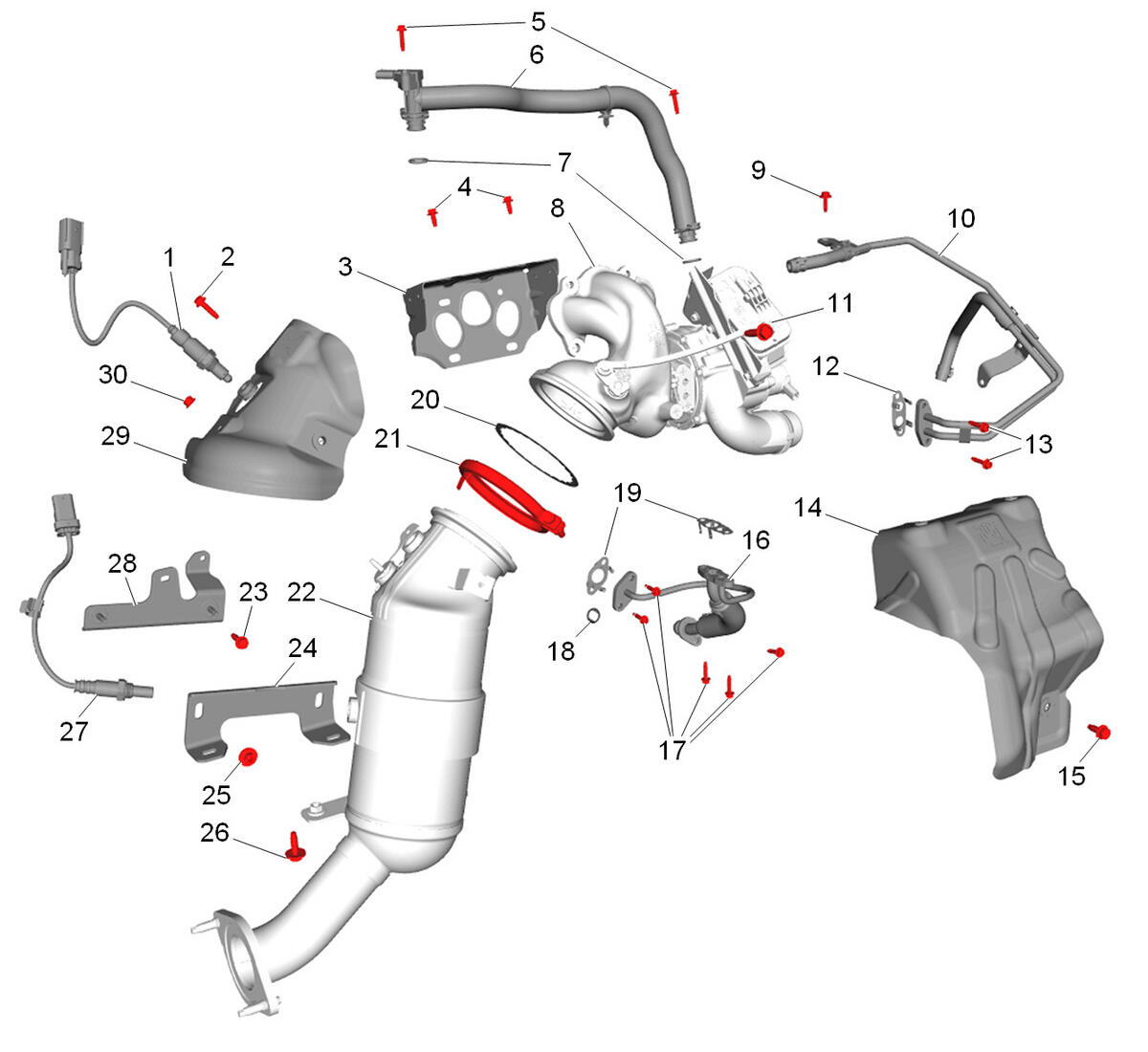

| Callout | Component Name |
|---|---|
| 1 | Heated Oxygen Sensor - Position 1 |
| 2 | Catalytic Converter Heat Shield Bolt [2x] |
| 3 | Turbocharger Heat Shield |
| 4 | Turbocharger Heat Shield Bolt [2x] |
| 5 | Positive Crankcase Ventilation Hose Fitting Bolt [2x] |
| 6 | Positive Crankcase Ventilation Hose |
| 7 | Positive Crankcase Ventilation Hose Fitting Seal [2x] |
| 8 | Turbocharger |
| 9 | Turbocharger Coolant Feed and Return Pipe Bracket Bolt |
| 10 | Turbocharger Coolant Feed and Return Pipe |
| 11 | Turbocharger Bolt [4x] |
| 12 | Turbocharger Coolant Feed and Return Pipe Gasket |
| 13 | Turbocharger Coolant Feed and Return Pipe Bolt [2x] |
| 14 | Turbocharger Heat Shield |
| 15 | Turbocharger Heat Shield Bolt |
| 16 | Turbocharger Oil Feed Pipe |
| 17 | Turbocharger Oil Feed Pipe Bolt [5x] |
| 18 | Turbocharger Oil Feed Pipe Seal Ring |
| 19 | Turbocharger Oil Feed Pipe Gasket [2x] |
| 20 | Catalytic Converter Gasket |
| 21 | Catalytic Converter Clamp |
| 22 | Warm Up Three-Way Catalytic Converter |
| 23 | Catalytic Converter Brace Bolt [2x] |
| 24 | Catalytic Converter Brace |
| 25 | Catalytic Converter Brace Nut [2x] |
| 26 | Catalytic Converter Brace Bolt [2x] |
| 27 | Heated Oxygen Sensor - Position 2 |
| 28 | Catalytic Converter Brace |
| 29 | Catalytic Converter Heat Shield |
| 30 | Catalytic Converter Heat Shield Nut |
