Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- CAUTION:
Ensure the seat heater is not folded or creased during installation as damage to the internal circuitry may occur, causing performance issues and damage to seat components.

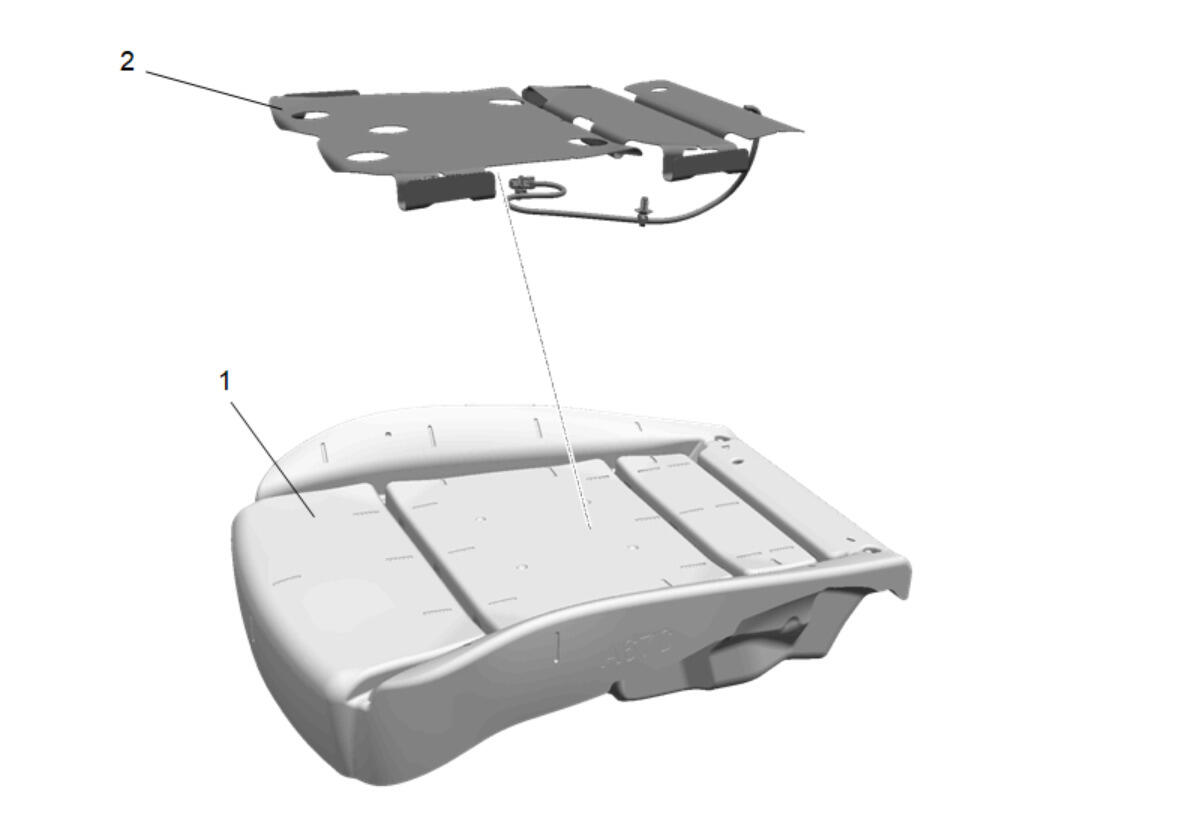

Install the front seat cushion heater (2) to the front seat cushion pad (1).
Front Seat Cushion Pad (2) - Install

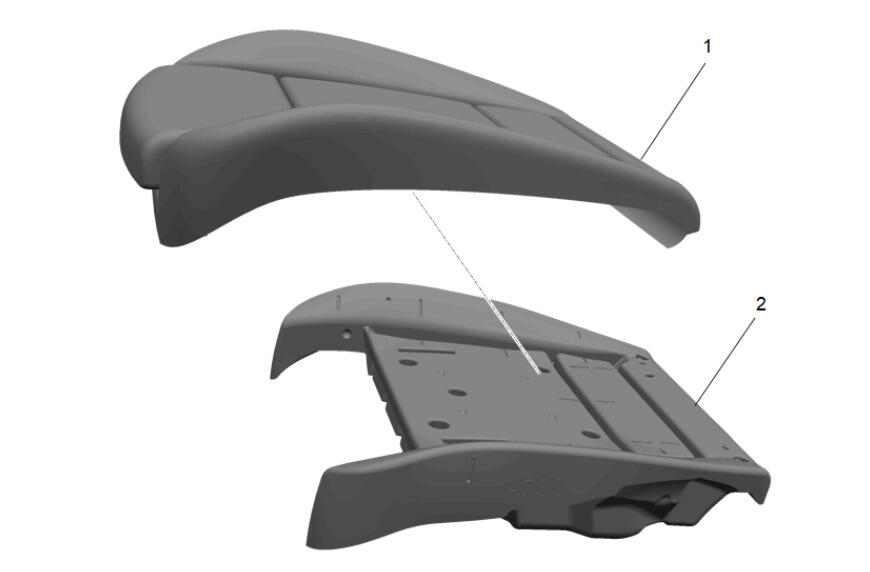

- Front Seat Cushion Cover (1) - Install
Front Seat Cushion Cover and Pad (2) - Install - Front Seat Cushion Cover and Pad Removal and Installation , or Front Seat Cushion Cover and Pad Removal and Installation (Blackwing)
- If servicing the passenger seat, perform the necessary programming and setup procedure for the passenger presence system. Control Module References
