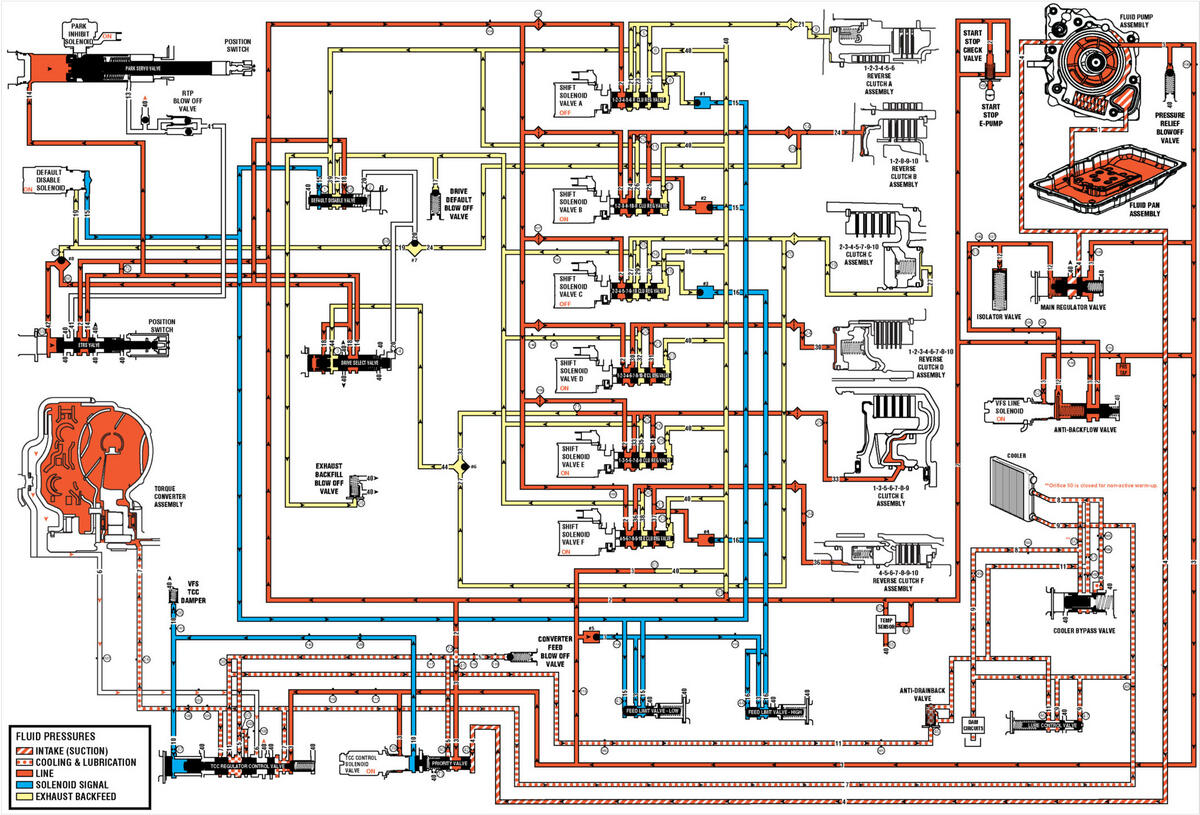

Drive Range, Eighth Gear
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Suction |
| 2 | Line |
| 3 | Pump Out |
| 4 | Decrease |
| 5 | Converter Feed |
| 6 | TCC Release |
| 7 | TCC Apply |
| 8 | Cooler Feed |
| 9 | Lube |
| 10 | VFS-TCC |
| 11 | Converter Return |
| 12 | VFS Line |
| 13 | Park On |
| 14 | Park Off |
| 15 | Feed Limit - Low |
| 16 | Feed Limit - High |
| 17 | Drive Default |
| 18 | Drive Latch |
| 19 | ON/OFF Signal |
| 20 | On/Off 1289-10 Reverse Clutch |
| 21 | 123456 Reverse Clutch |
| 22 | 123456 Reverse Clutch Feedback |
| 23 | 123456 Reverse Clutch Exhaust |
| 24 | 1289-10 Reverse Clutch |
| 25 | 1289-10 Reverse Clutch Feedback |
| 26 | 1289-10 Reverse Clutch Exhaust |
| 27 | 234579-10 Clutch |
| 28 | 234579-10 Clutch Feedback |
| 29 | 234579-10 Clutch Exhaust |
| 30 | 1234678-10 Reverse Clutch |
| 31 | 1234678-10 Reverse Clutch Feedback |
| 32 | 1234678-10 Reverse Clutch Exhaust |
| 33 | 1356789 Clutch |
| 34 | 1356789 Clutch Feedback |
| 35 | 1356789 Clutch Exhaust |
| 36 | 456789-10 Reverse Clutch |
| 37 | 456789-10 Reverse Clutch Feedback |
| 38 | 456789-10 Reverse Clutch Exhaust |
| 39 | Exhaust Backfill |
| 40 | Exhaust |
| 41 | Return to Park |
| 42 | On/Off Drive Latch |
| 44 | 234579-10/1356789 Clutch |
