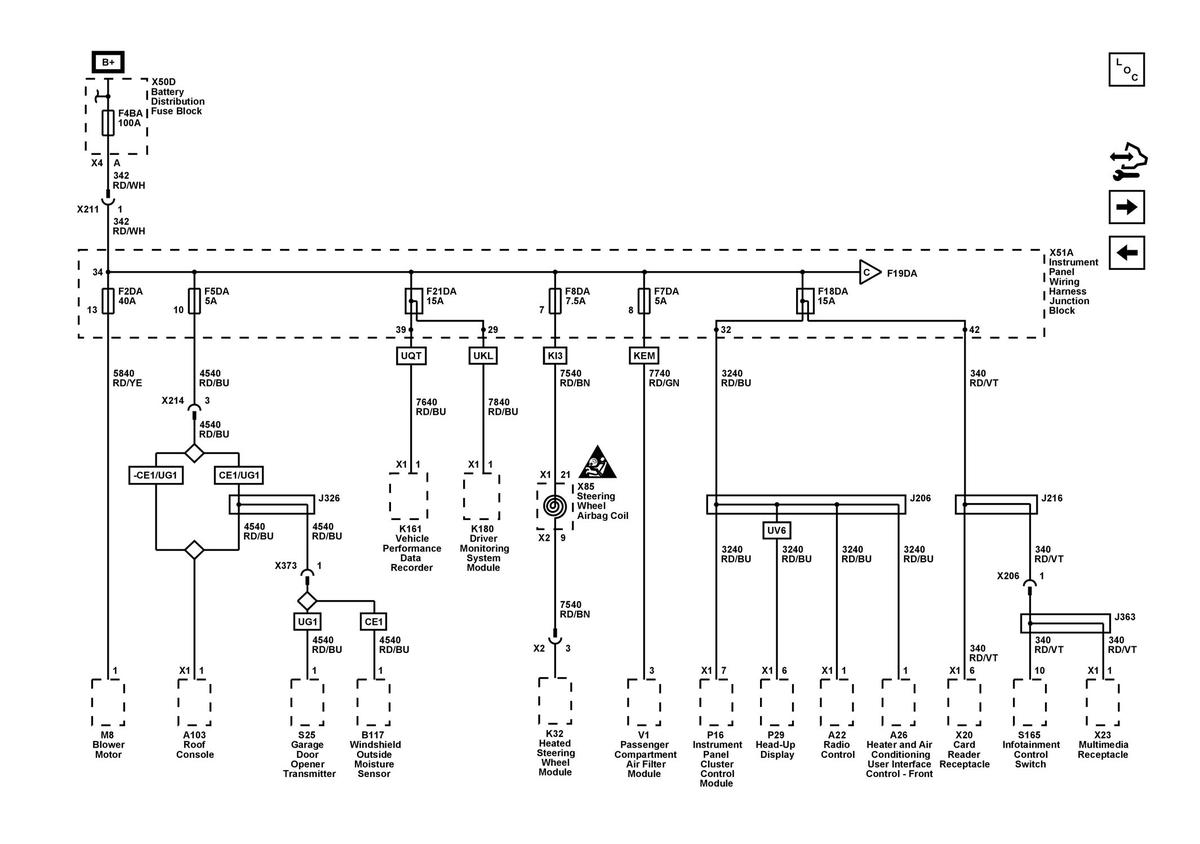

F4BA, F2DA, F5DA, F7DA, F8DA, F18DA and F21DA Fuses

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
GM5751029Courtesy of GENERAL MOTORS COMPANY
