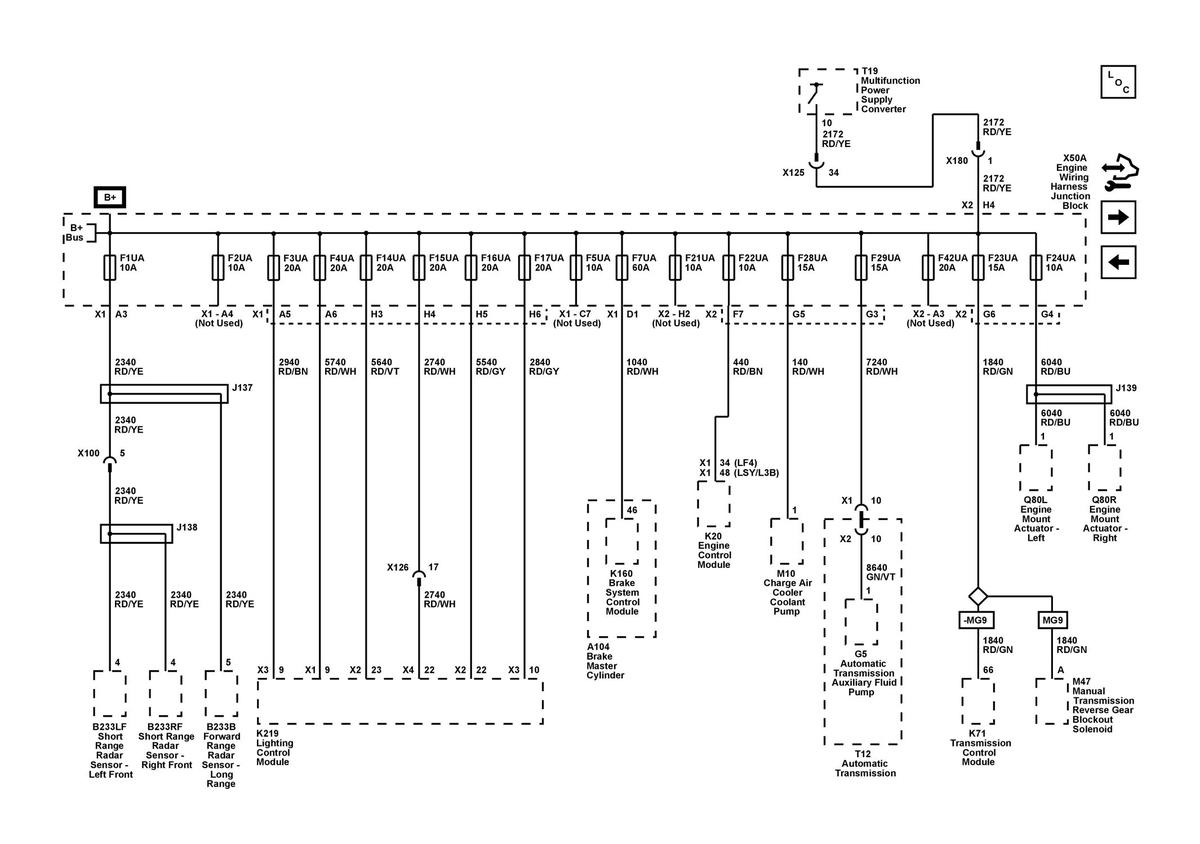

F1UA, F2UA, F3UA, F4UA, F5UA, F7UA, F14UA, F15UA, F16UA, F17UA, F21UA, F22UA, F23UA, F24UA, F28UA, F29UA, and F42UA Fuses

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
GM5751025Courtesy of GENERAL MOTORS COMPANY
