Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Reposition the seat as necessary to access the bolts.
Front Seat Cushion Front Finish Cover Bolt (1) - Remove
Front Seat Cushion Outer Finish Cover Bolt -Front (2) - Remove
Front Seat Cushion Front Finish Cover (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

Front Seat Cushion Outer Finish Cover Bolt -Rear (1) - Remove
Squeeze retainer to release.
Disconnect the electrical connector.
Front Seat Cushion Outer Finish Cover (2) - Reposition
Courtesy of GENERAL MOTORS COMPANY

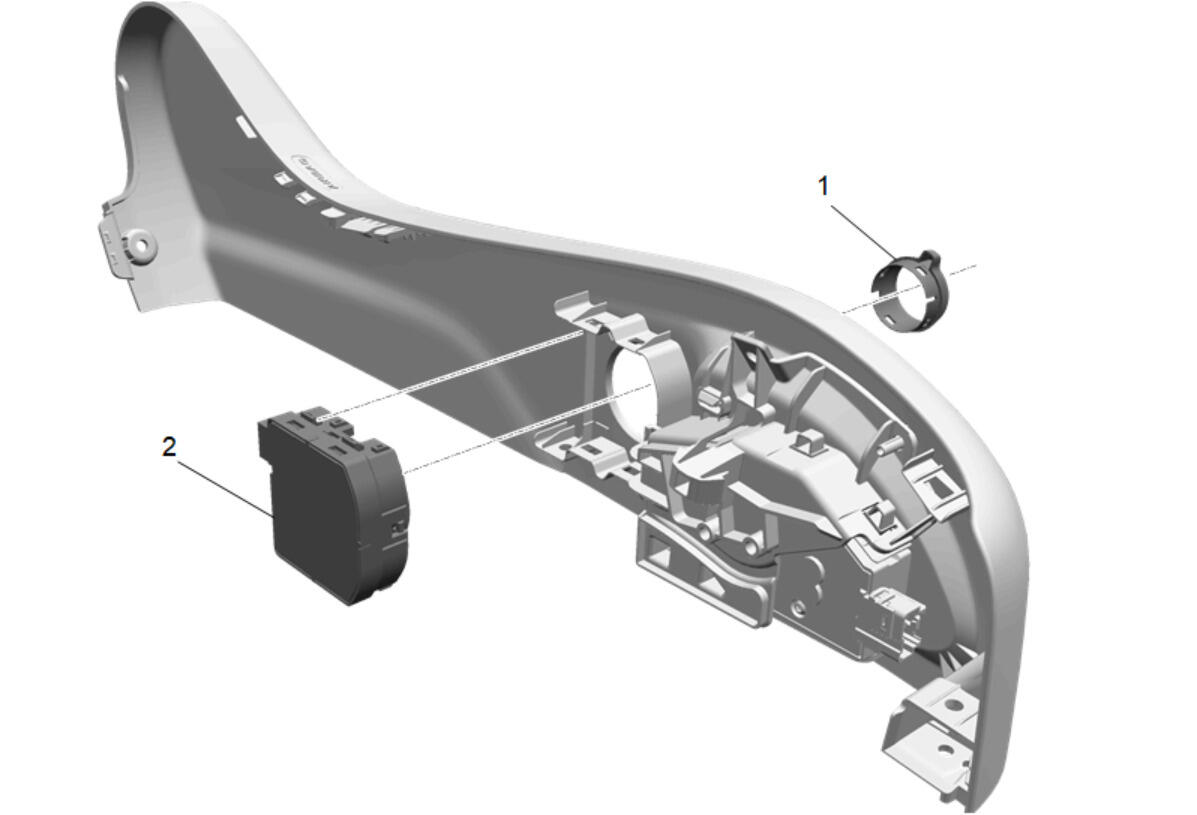

{If equipped} Driver or Passenger Seat Lumbar Support Actuator Knob (1) - Remove
Driver and Passenger Seat Lumbar Control Switch (2) - Remove
