Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

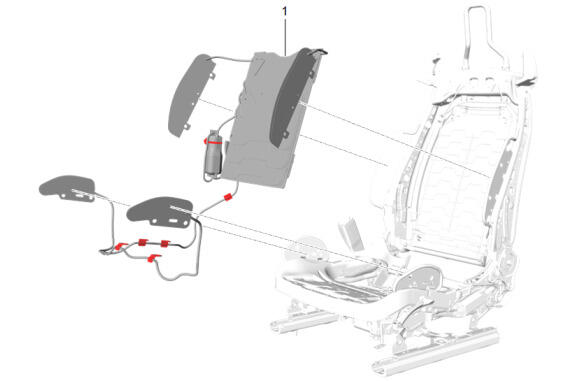

Front Seat Lumbar Support (1) - Install
- Install the retainers.
- Install the front seat back lumbar pump and install the retainer.
- Connect the electrical connector and position the wiring harness.
Front Seat Cushion Outer Finish Cover Support (1) - Install [2x]
Front Seat Back Side Bolster Bladder (1) - Install [2x]
Front Seat Cushion Cover and Pad (2) - Install - Front Seat Cushion Cover and Pad Removal and Installation , or Front Seat Cushion Cover and Pad Removal and Installation (Blackwing)
Front Seat Back Cover and Pad (1) - Install - Front Seat Back Cover and Pad Removal and Installation (with Seat Back Cushion Finish Panel) , or Front Seat Back Cover and Pad Removal and Installation (without Seat Back Cushion Finish Panel) , or Front Seat Back Cover and Pad Removal and Installation (Blackwing)
