Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

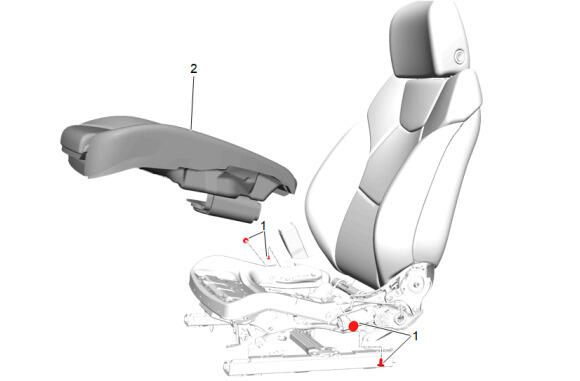

  1. GM5461044Courtesy of GENERAL MOTORS COMPANY

    Front Seat Cushion Cover and Pad (2) - Remove - Front Seat Cushion Cover and Pad Removal and Installation

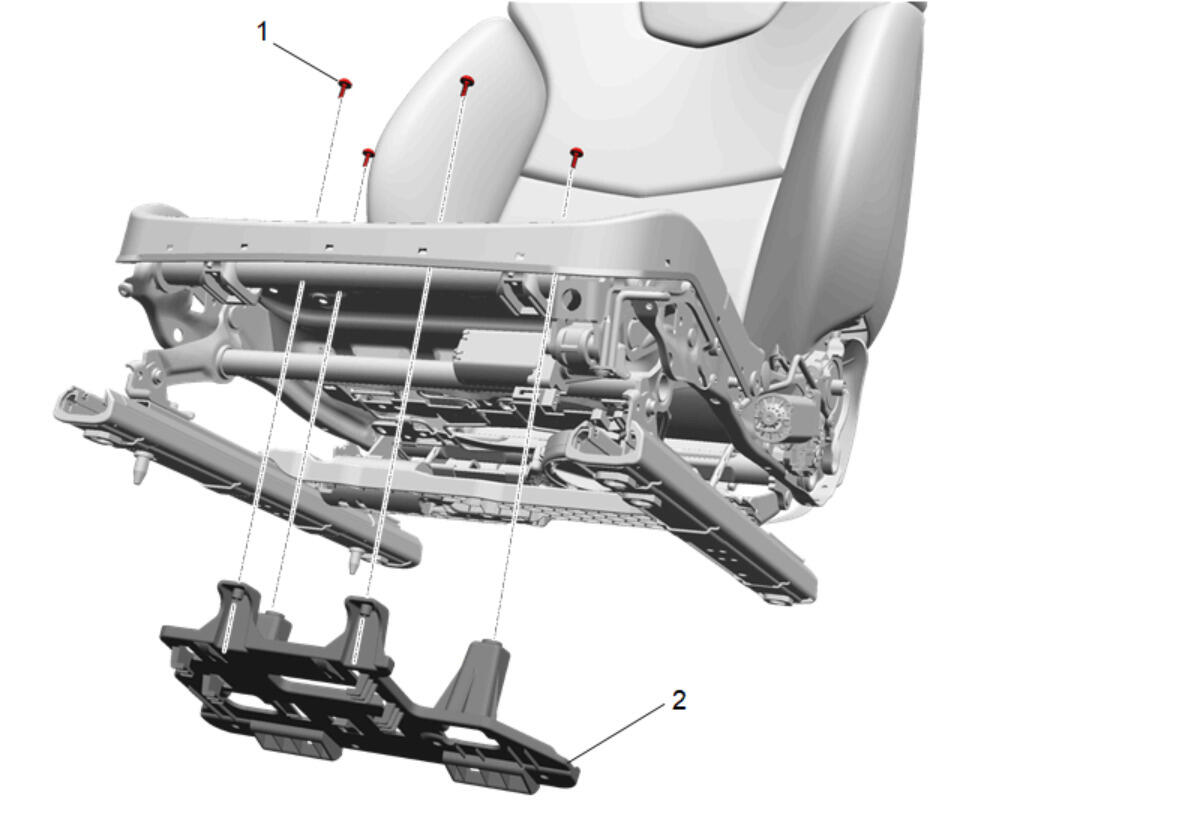

  2. GM5314532Courtesy of GENERAL MOTORS COMPANY

    Front Seat Adjuster Memory Module Bracket Bolt (1) - Remove [4x]

  3. Disconnect and reposition harness as necessary.
  4. Front Seat Adjuster Memory Module Bracket (2) - Remove
