Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

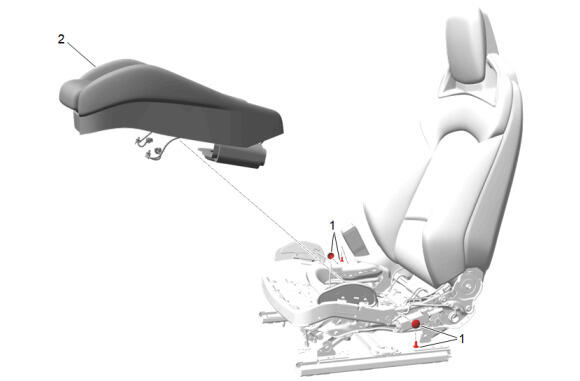

Front Seat Cushion Cover and Pad (2) - Remove - Front Seat Cushion Cover and Pad Removal and Installation (Blackwing)

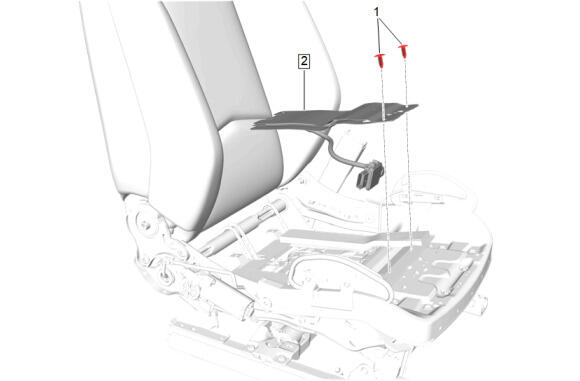

Airbag Front Passenger Presence Module Retainer (1) - Remove [2x]
- Disconnect the electrical connector.
- Remove the airbag front passenger presence module sensor from the bracket.
- Airbag Front Passenger Presence Module (2) - Reposition

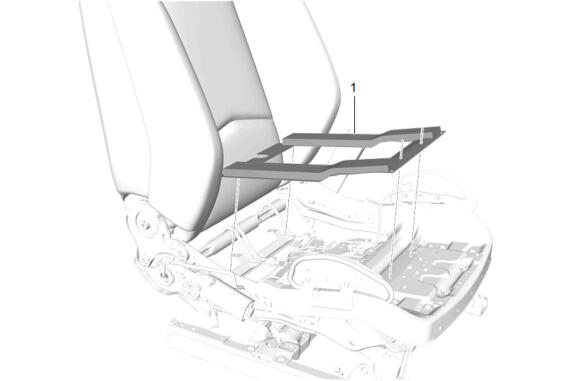

Front Seat Cushion Pad Front Support (1) - Reposition
Disconnect the electrical connectors.
- Front Seat Heater Vent Control Module Bolt (1) - Remove
- Release the retaining tabs.
- Front Seat Heater Vent Control Module (2) - Remove
Disconnect the electrical connectors.
- Release the retaining tabs.

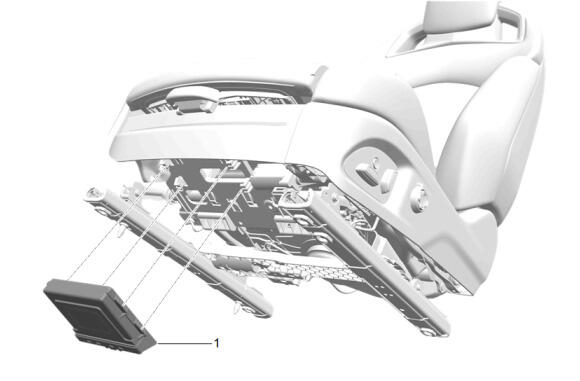

- Driver or Passenger Seat Adjuster Memory Module (1) - Remove

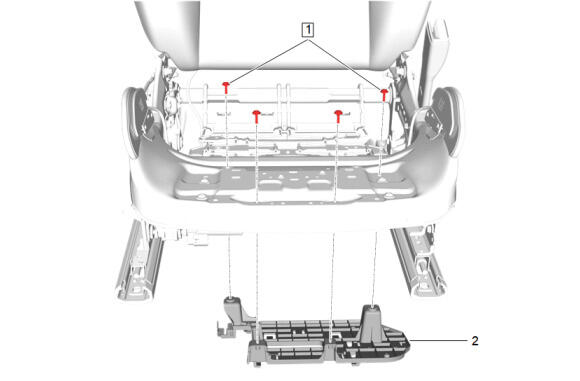

Front Seat Adjuster Memory Module Bolt (1) - Remove [4x]
- Disconnect and reposition harness as necessary.
- Front Seat Adjuster Memory Module Bracket (2) - Remove
