Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Ensure the Outer Tie Rod Boot is not twisted or deformed during assembly. If the boot is twisted or deformed, damage to the boot will occur.

NOTE:
Some components not shown for graphic clarity.

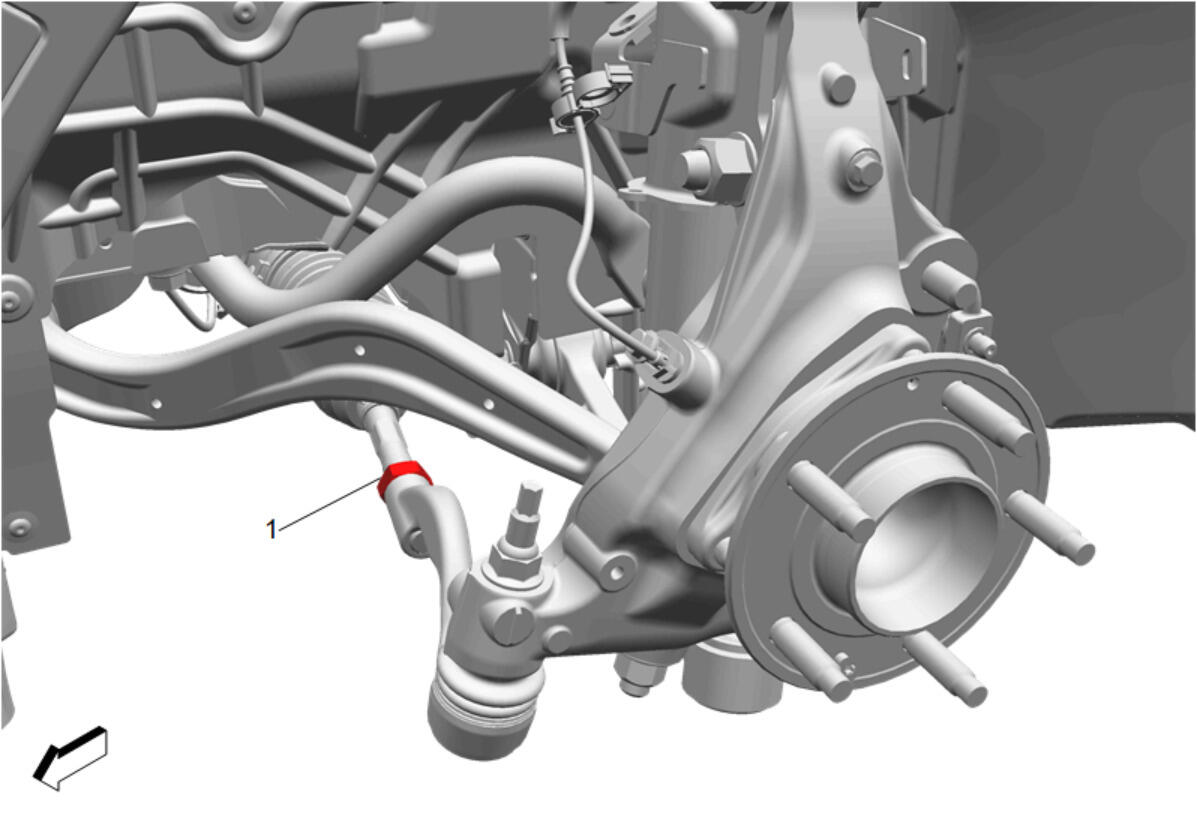

Steering Linkage Outer Tie Rod (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution .

NOTE:
Some components not shown for graphic clarity.

Steering Linkage Outer Tie Rod Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Tighten the steering linkage inner tie rod nut (1) during the front toe adjustment procedure.
Courtesy of GENERAL MOTORS COMPANY

{ If equipped } Front Brake Rotor Cooling Duct Deflector (1) - Install
{ If equipped } Front Brake Rotor Cooling Duct Deflector Bolt (2) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install the 2 chassis harness retainers (1), if equipped.
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
Lower the vehicle.
Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
