Special Tools

GE-8001  Dial Indicator Set

Equivalent regional tools: Special Tools

NOTE:

This inspection procedure does not supersede local government required inspections that have more stringent requirements.

1. Turn the ignition to the ON position with the engine OFF.
2. With the aid of an assistant, turn the steering wheel to the full stop position and hold the steering wheel in that position until the test is complete.

3. Courtesy of GENERAL MOTORS COMPANY

   NOTE:

   Some components not shown for graphic clarity.

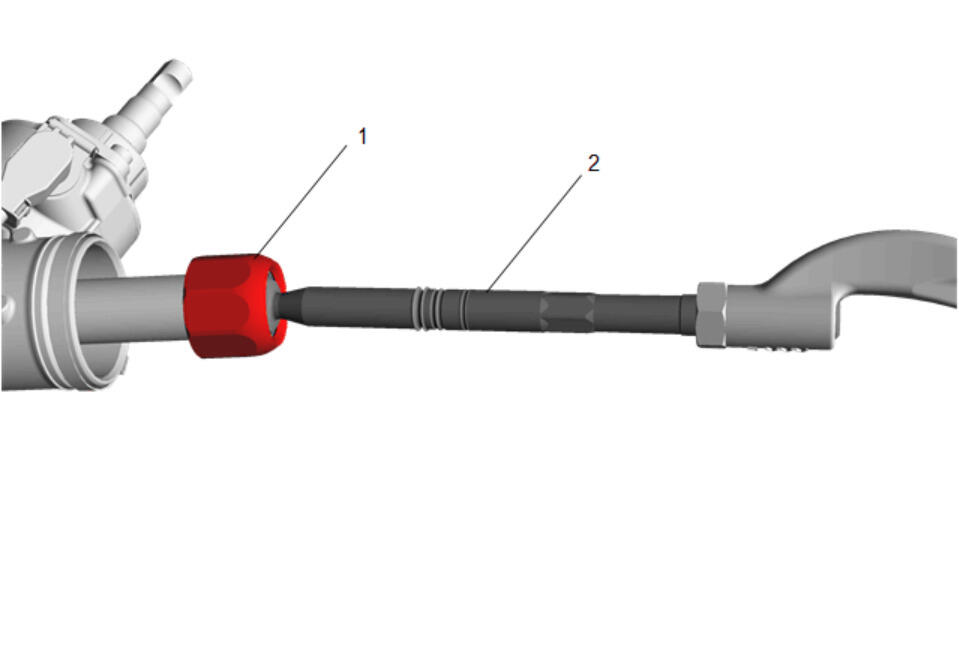

   The part of the steering linkage inner tie rod (2) being tested should be inside the steering gear housing. The inner tie rod housing (1) being tested should be inside the steering gear housing and seated against the steering stop.

4. Raise and support the vehicle. Lifting and Jacking the Vehicle

5. Courtesy of GENERAL MOTORS COMPANY

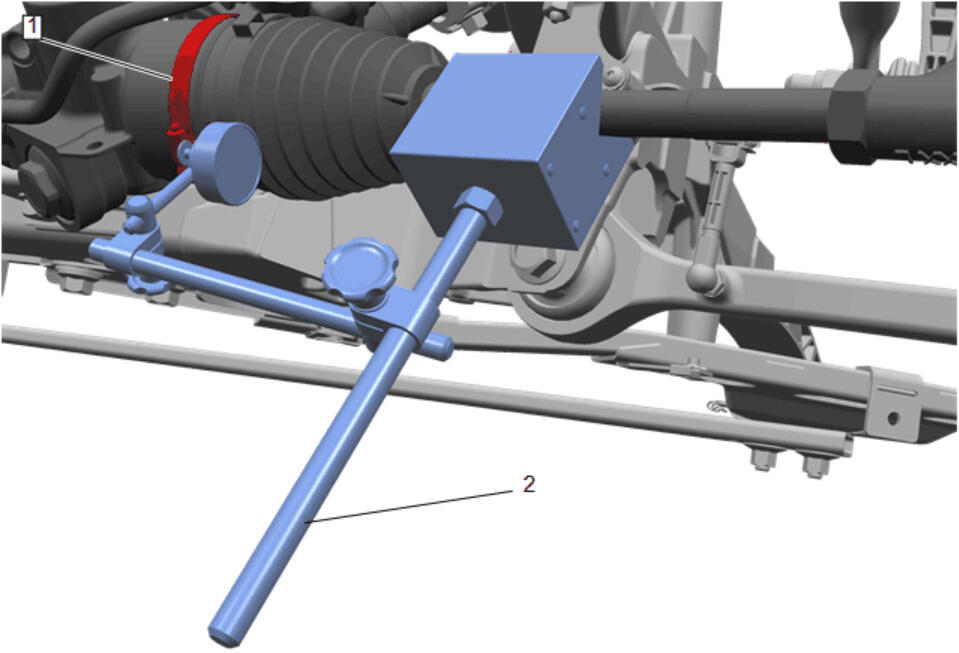

   If there is not a good location for the GE-8001  Dial Indicator Set (2) pointer to contact the steering gear housing, install a large worm gear hose clamp (1) to the steering gear housing, and align the clamp so that the screw can be a location for the GE-8001  Dial Indicator Set pointer to contact.

6. Install the GE-8001  Dial Indicator Set (2) between the inner tie rod and the steering gear housing or the worm gear clamp (1) in such a way as to measure the lash between the inner tie rod and the steering gear housing. The lash between the inner tie rod and the steering gear housing is equal to the lash between the inner tie rod and the inner tie rod housing because the inner tie rod housing is inside the steering gear housing during this procedure.

7. Courtesy of GENERAL MOTORS COMPANY

   NOTE:

   Only move the tire enough to feel any lash between the inner tie rod and the inner tie rod housing without moving the steering gear rack.

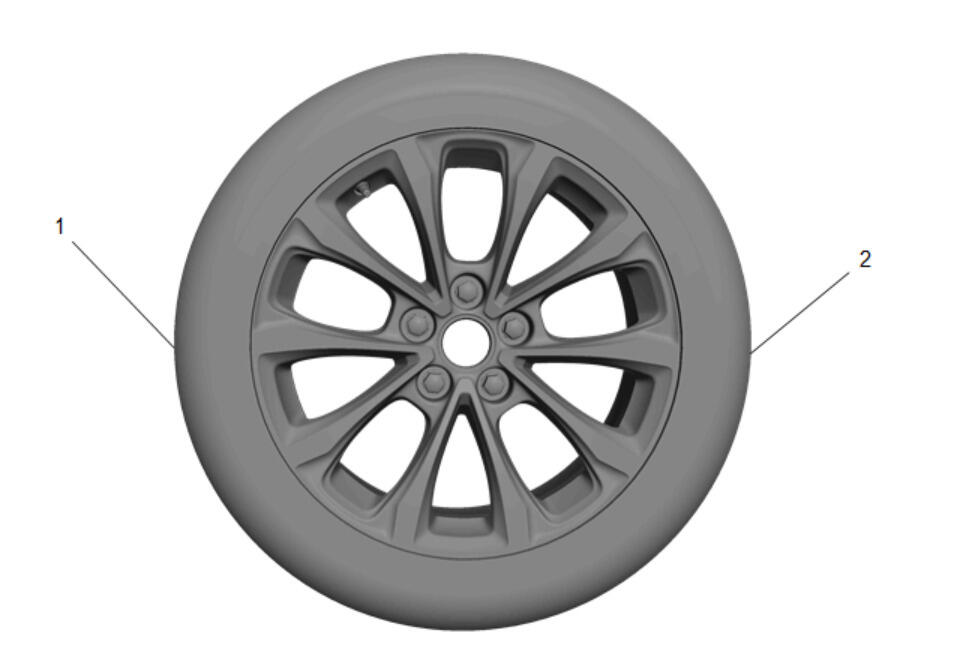

   Grasping the tire at the 3 o'clock (2) and 9 o'clock (1) positions, gently push in on one side of the tire in order to remove any lash.

8. Zero the GE-8001  Dial Indicator Set.
9. On the same side of the tire previously pushed in, gently pull out and measure the lash.
10. Record the measurement shown on the GE-8001  Dial Indicator Set.
11. If the measured value exceeds 0.5 mm (0.02 in), replace the inner tie rod. Steering Linkage Inner Tie Rod Replacement (without Blackwing) , or Steering Linkage Inner Tie Rod Replacement (with Blackwing)
12. Repeat the procedure for the other side.
