Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Lifting and Jacking the Vehicle
Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

Remove the 2 chassis harness retainers (1).
Courtesy of GENERAL MOTORS COMPANY

Front Brake Rotor Cooling Duct Deflector Bolt (2) - Remove [3x]
Front Brake Rotor Cooling Duct Deflector (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Front Wheelhouse Liner Bolt- Left Side and Right Side (1) - Remove [4x]
Front Compartment Air Deflector Retainer- Left Side and Right Side (2) - Remove [2x]
Front Bumper Fascia Lower Stiffener Bolt- Left Side and Right Side (3) - Remove [6x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Front Compartment Air Deflector- Left Side and Right Side (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Air Deflector Bolt (1) - Remove [4x]
Front Bumper Fascia Air Deflector Retainer (2) - Remove
Support the front cradle shear plate using a suitable jack.
Courtesy of GENERAL MOTORS COMPANY

Front Cradle Shear Plate Bolt (1) - Remove [4x]
Front Cradle Shear Plate Nut (2) - Remove [2x]
Front Crossmember Brace Bolt (3) - Remove [8x]
Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Liner Bolt (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Position the left and right side wheelhouse liners (1) away from the front cradle sheer plate (2).
Remove the front cradle sheer plate (2) from between the front bumper fascia center air deflector and the driveline and front suspension cradle and lower it from the vehicle.
Place match marks on the steering linkage inner tie rod nut and the steering linkage inner tie rod.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Steering Linkage Inner Tie Rod Nut (1) - Loosen
Steering Linkage Outer Tie Rod Nut (2) - Loosen
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Do not attempt to disconnect a steering linkage joint by driving a wedge between the joint and the attached part. Seal damage may result which will cause premature failure of the joint.

NOTE:
Some components not shown for graphic clarity.

Using the CH-42188-B Ball Joint Separator (1) separate the steering linkage outer tie rod (2) from the steering knuckle.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Steering Linkage Outer Tie Rod Nut (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Steering Linkage Outer Tie Rod (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Steering Linkage Inner Tie Rod Nut (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

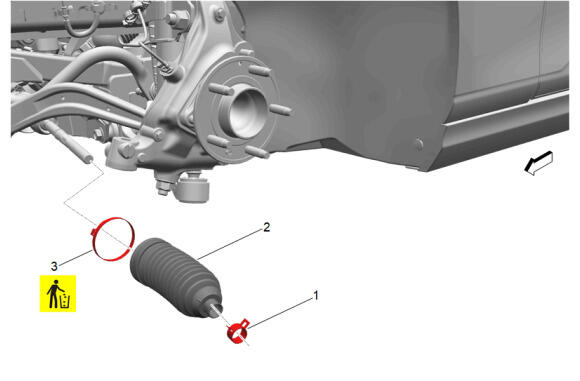

Steering Gear Boot Outer Clamp (1) - Remove
Steering Gear Boot Inner Clamp (3) - Remove and DISCARD
Steering Gear Boot (2) - Remove
